| Shell Diameter (mm): | 600-1200 | Shell Length (mm): | 1200-2400 |
|---|---|---|---|
| Feed Size (mm): | 0-3 | Capacity (t/h): | 10-120 |
| Power(kw): | 1.5-7.5 | Weight (t): | 1.5-6.4 |
| Type: | Magnetic Separator | Average Magnetic Induction Intensity: | 100~600mT |
| Feature: | High Production Efficiency | Usage: | Separate Iron In Coal, Nonmetallic Ore, Construction Industry |
| High Light: | 600mm Ore Dressing Equipment,100mm Ore Dressing Equipment,600mm magnetic drum separator |
||

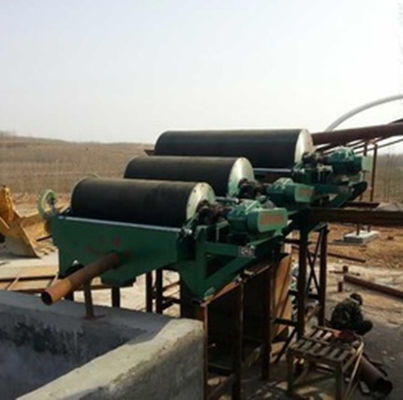

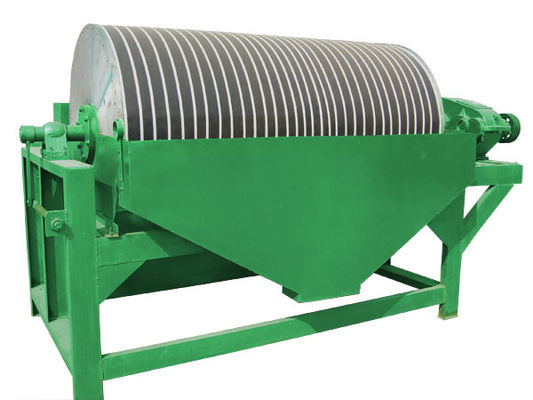

100~600mT High production efficiency Magnetic Separator ore dressing machine
Magnetic Separator is used to separate magnetite. hematite,limontie smaller than 3 mm in wet way. it is also used to separate iron in coal, nonmetallic ore, construction industry, etc.
Main Features:

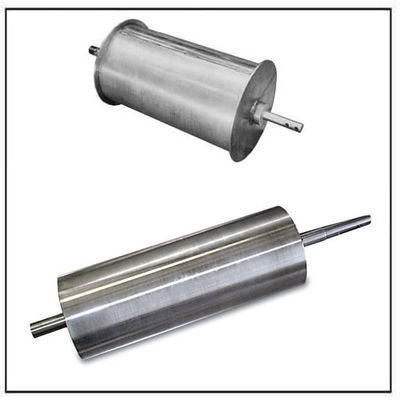

1. Magnetic system is compounded of ferrite and permanent magnets; the average magnetic induction intensity of cylinder surface is 100~600mT
2. The same cylinder can be equipped with three types of tank adapting to different dressing process.
3. Small area taken, good separation for magnetic mineral, reduce the load of next process
Working Princle:
Slurry enters chute through ore tank firstly, and then separating zone by waterpower. Mineral with strong magnetism is absorbed on the barrel surface, sent to concentrate discharging zone and discharged Into concentrate box by water effect. Gangue and ore with weak magnetism are discharged into a pipe in opposite direction of barrel.
| Model | Shell Diameter (mm) | Shell length (mm) | Feed size (mm) | Capacity (t/h) | Power(kw) | Weight (t) |
| CTB612 | Φ600 | 1200 | 0-2 | 10-20 | 1.5 | 1.5 |
| CTB618 | Φ600 | 1800 | 0-2 | 15-30 | 2.2 | 1.8 |
| CTB718 | Φ750 | 1800 | 0-2 | 25-45 | 3.0 | 2.2 |
| CTB918 | Φ900 | 1800 | 0-3 | 35-70 | 4.0 | 2.8 |
| CTB1018 | Φ1050 | 1800 | 0-3 | 40-75 | 5.5 | 4.3 |
| CTB1024 | Φ1050 | 2400 | 0-3 | 52-100 | 5.5 | 5.2 |
| CTB1218 | Φ1200 | 1800 | 0-3 | 47-90 | 5.5 | 5.0 |
| CTB1224 | Φ1200 | 2400 | 0-3 | 80-120 | 7.5 | 6.4 |
