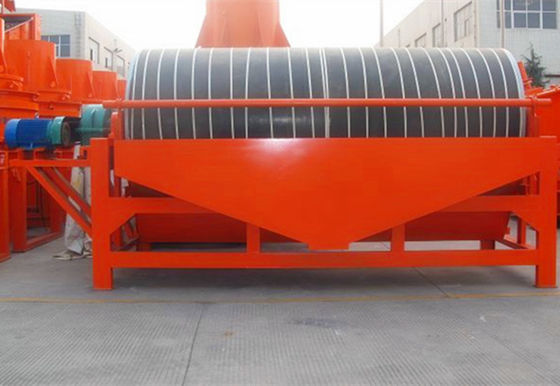

10-280 Tph High Power Mining Wet Magnetic Separator High Intensity

10-280 Tph High Power Mining Wet Magnetic Separator High Intensity
10-280 Tph High Power Mining Wet Magnetic Separator High Intensity 10-280 Tph High Power Mining Wet Magnetic Separator High Intensity 10-280 Tph High Power Mining Wet Magnetic Separator High Intensity 10-280 Tph High Power Mining Wet Magnetic Separator High Intensity 10-280 Tph High Power Mining Wet Magnetic Separator High Intensity

Large Image :  10-280 Tph High Power Mining Wet Magnetic Separator High Intensity

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: regular packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Detailed Product Description
Shell Diameter(mm): 600-1500 Shell Length(mm): 1200-3000
Shell Ratation Speed(r/min): <35 Feeding Size(mm): 3-0
Processing Capacity(t/h): 10-280 Power(kw): 1.5-11
Product Name: Magnetic Separator Feature: High Intensity,high Power
Machine Type: Separation Device Application: Mining
High Light:

280 Tph Wet Magnetic Separator

,

10 Tph Wet Magnetic Separator

,

280 Tph wet drum separator

Mining Wet Magnetic Separator

Mining equipment wet magnetic separatory is a device which is designed to assist with the purification and and separation of process streams.
It is used in industries like mining, and smaller versions are utilized in scientific labs to process some types of samples. The Magnetic Separator can separate raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force.
Magnetic separator is applied to the tailing discarding or purification process of fine-grained weak-magnetic minerals such as limonite, hematite, manganese ore, titanium ore, etc. or deironing processing of non-metallic minerals such as andalusite, sillimanite, kyanite, garnet, feldspar, quartz, zircon, corundum, diamond, etc. as well as to eliminate weak magnetic harmful impurities of other materials.

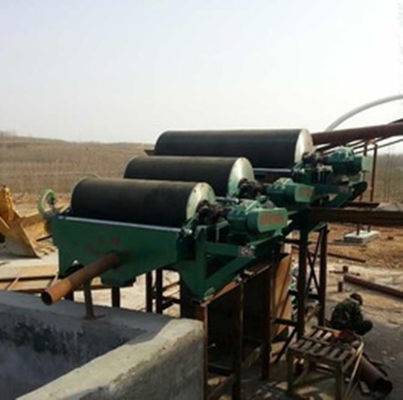

10-280 Tph High Power Mining Wet Magnetic Separator High Intensity 0

Features

1.High intensity,high power rare earth magnets
2.Available with flanges to suit square and round chutes
3.Available with angle deflectors above and between the tubes for heavy contamination
4.Direct access to magnets in chute
5.Easily installed and extremely easy to clean

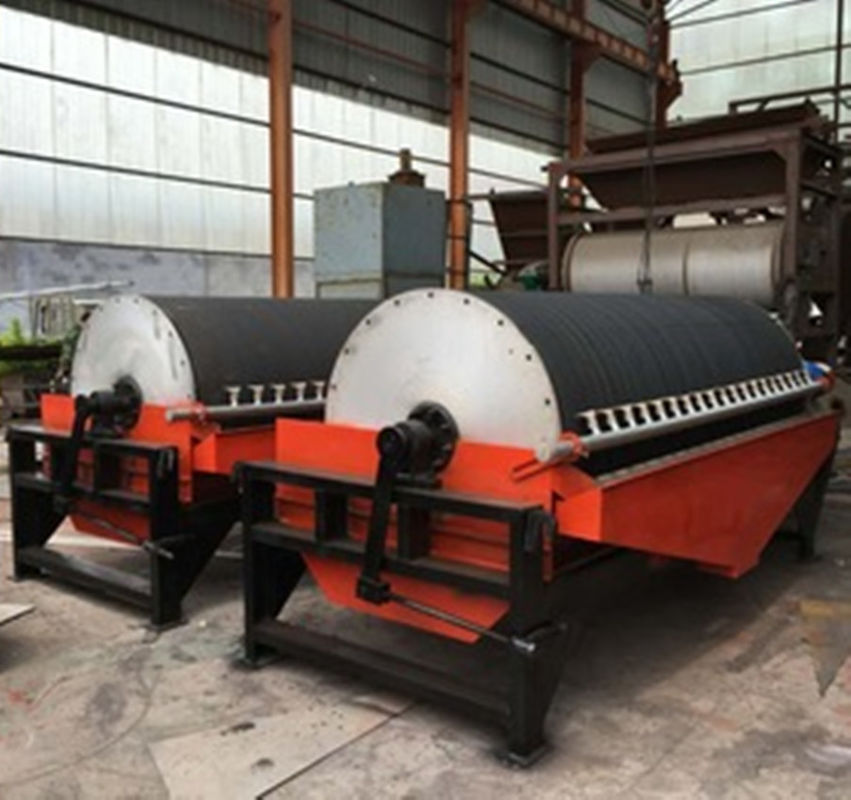

10-280 Tph High Power Mining Wet Magnetic Separator High Intensity 1

Working Principle

This wet magnetic separator is based on the different magnetic susceptibility between the ore minerals, and do mineral separattion by magnetic force. When the slurry into the sorting area of wet magnetic separator, due to different magnetic susceptibility, under the magnetic force, the magnetic particles are adsorbed on the cylinder surface of wet magnetic separator, with the cylinder rotation to the concentrate port of discharge, then from the magnetic system into the concentrate tank by concentrate rinse water; gangue and weak magnetic minerals can not be attracted by the magnetic force, under the slurry flow force in the tank, they gravity into tailings discharge pipe in the reverse direction of cylinder rotating.

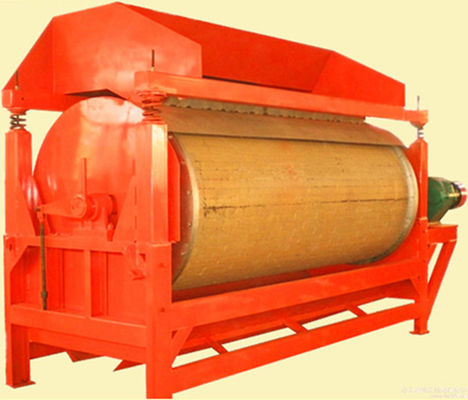

10-280 Tph High Power Mining Wet Magnetic Separator High Intensity 2

Technical Parameters



Model Shell diameter(mm) Shell length(mm) Shell ratation speed(r/min) Feeding size(mm) Processing capacity(t/h) Power(kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
CTB1530 1500 3000 <14 3-0 170-280 11
