Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

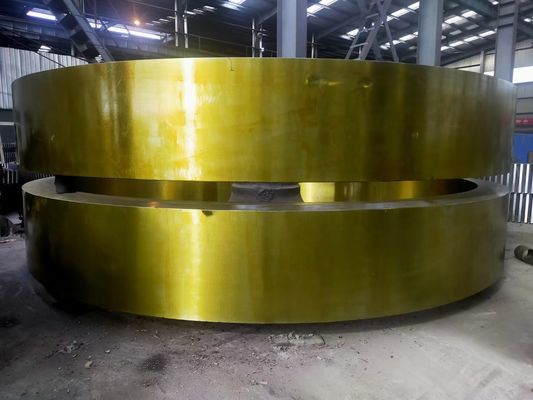

Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln

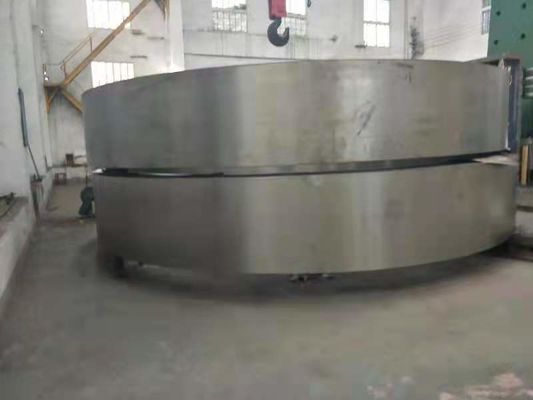

Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln

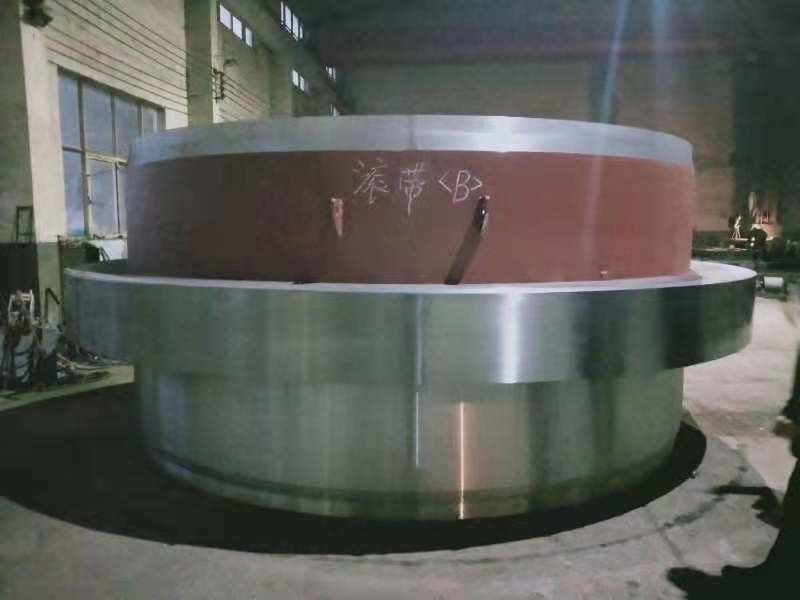

Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln
video play

Large Image :  Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln

Product Details:
Place of Origin: Henan, China
Brand Name: CITICLK
Model Number: 2M-9M Rotary Kiln Tyre
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: $5,000.00 - $30,000.00 / Set
Packaging Details: Standard packing or according to customer's requirement
Delivery Time: 1-2months
Supply Ability: 10000 Set/Sets per Year
Detailed Product Description
Name: Rotary Kiln Tyre Material: ZG35CrMo/42CrMo
Diameter: 2M-9M Weight: 20-200 T
Certificate: ISO9001-2015 Rotary Kiln Tyre Quality Assurance: Final NDE, Dimensions Check
Port: QingDao,ShangHai,TianJin
High Light:

Rotary Tyre Castings And Forgings

,

Cement Plant kiln tire

,

Forgings kiln tire

Tyre Chemical Cement Plant Supporting Of Steel Casting Rotary Dryer Tyre for Kiln



Product Description

Rotary kiln tyre, also called riding ring, is one important part of rotary kiln. It transmits all gravity of rotary barrel (including refractory bricks, internal devices and raw material, etc.) to supporting roller, and ensures that barrel rotates smoothly on supporting rollers, as well as strengthens radial stiffness of barrel, therefore enough strength, durability and rigidity of rotary tyre are necessary.
Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln 0
Features



1. High strength, good durability

CHAENG uses ZG45 and ZG42CrMO material, which can guarantee the strength and toughness of rotary kiln tyre, so as to play a better supporting role.



2. Use advanced dual-medium quenching process

CHAENG adopts advanced two-medium quenching process to process uniformly every part of rotary kiln tyre, so that CHANEG rotary kiln tyre has high hardness and high toughness and good wear resistance, can adapt to a variety of harsh working environment.



3. Simple structure, easy for routine maintenance.



4. CHAENG can produce rotary kiln tyres of various specifications according to the customer's drawings.

The optimized technology and excellent quality can ensure that rotary kiln tyre produced by CHAENG matches well with the original rotary kiln equipment.

Cement rotary kiln tyre for cement plant



Material
Carbon Steel , Alloy Steel, as required
Standard
ASTM DIN . EN GOST JIS ETC
Structure
Casting and forging
Diameter of rotary kiln tyre ring
1000-7000 mm
Height of rotary kiln tyre ring
120-2000 mm
Surface Roughness
Rz 3.2 & 6.3
OEM Service Offered
According to Customer Drawings



Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln 1

Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln 2Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln 3

 We supply following Rotary Kiln Tyre reports for the customers:

(1) Mechanical Test Report

(2) Hardness Test Report

(3) Chemical Test Report

(4) Heat Treatment Record

(5) Magnetic Particle Examination Report

Rotary Kiln Tyre Quality assurance:

1. Chemical checking in the Qualified Lab

2. NDE after Rough Machining

3. Mechanical testing after Heat Treatment

4. Final NDE, Dimensions check



Technology Process
Material is the skeleton for one machinery, while production design is the thought, CNC machining is the essence and heat treatment is the soul.
Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln 4

Electric Arc Furnace


It is easier and accuracy to control the inner temperature of furnace, so it can improve the purity of steel.
It can control the quality of steel from the material.

We can casting 1500-30000 kgs per piece.

Rough lathe
of Cement machinery 42CrMo large casting rotary kiln tyre


The Diameter of Large Custom Ball Mill Cement Plant Machining Casting Steel Rotary Kiln Tyre Ring is 500-13000 MM.




Our largest lathe diameter is 15 meters.
Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln 5
Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln 6



All our blank will do 100% Nondestructive Testing




100% Nondestructive Testing of large custom ball mill cement plant machining casting steel rotary kiln tyre ring
Quenching & Tempering of Cement machinery 42CrMo large casting rotary kiln tyre
- Professional, specific furnace, single-minded - Vertical pit furnace,keep the temperature uniformity during heating,+/-1℃

- Small deformation,little oxide layer,reduce material cost

- Different materials can be cooled at the best speed

- Large capacity,completed variety of quenching medium: oil,water,salt water,water based mixture.
Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln 7
Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln 8




Finished lathe of
Cement machinery 42CrMo large casting rotary kiln tyre



Magnetic powder inspection of
Cement machinery 42CrMo large casting rotary kiln tyre



Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln 9
Chemical Cement Plant Castings And Forgings Rotary Dryer Tyre For Kiln 10
