Product Details:
Payment & Shipping Terms:
|
| Specification: | Φ2.5×40-Φ3.3×52 | Capacity(t/d): | 180-1300 |
|---|---|---|---|
| Kiln Obliquity (%): | 3.5 | Bearing Quantity: | 3-4 |
| Main Driving: | 0.98-2.94 R/min | Auxiliary Driving: | 0.036 R/min |
| Rated Power (KW): | 45-125 | Rated Voltage (v): | 380-440 |
| Speed Adjustment Range (r/min): | 100-1320 | Speed Ratio: | 40-99.96 |
| High Light: | 42crmo Rotary Kiln Tyre,Forgings Rotary Kiln Tyre,Casting Rotary Kiln Tyre |
||

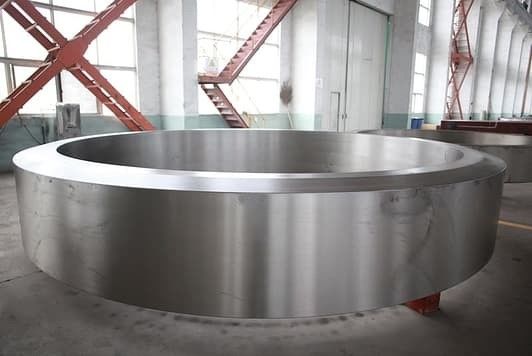

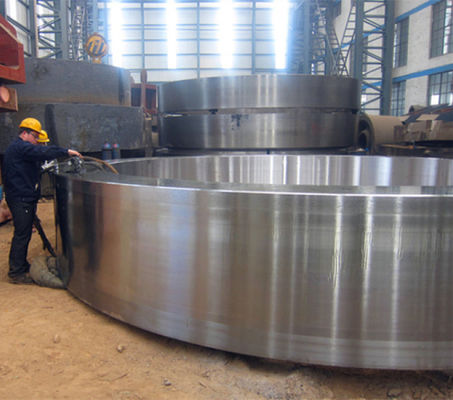

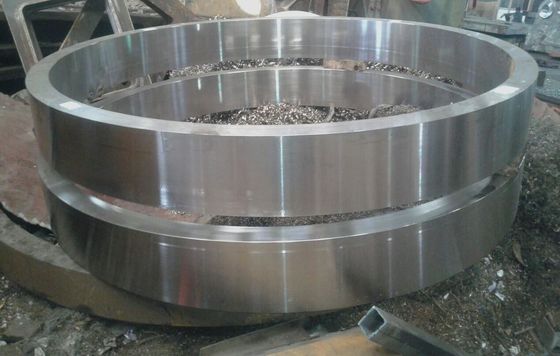

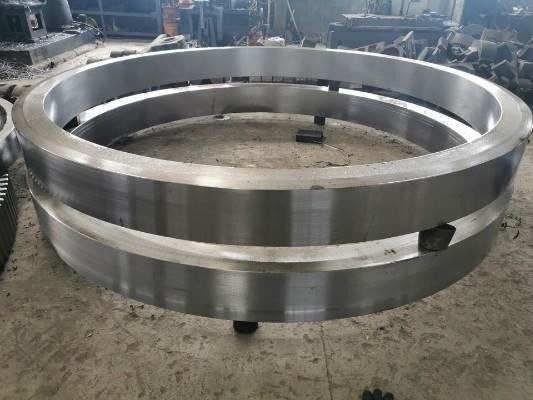

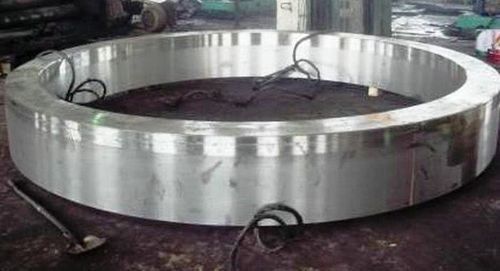

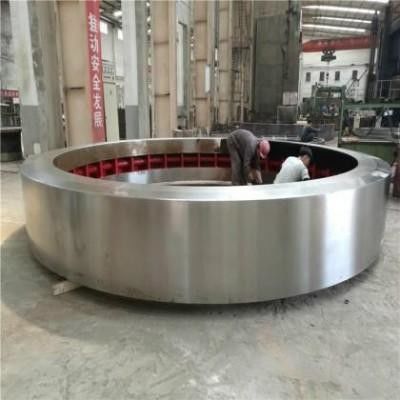

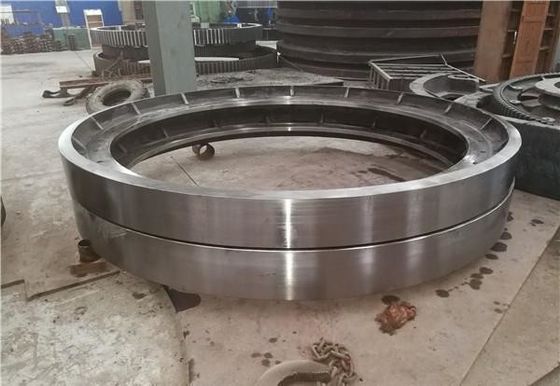

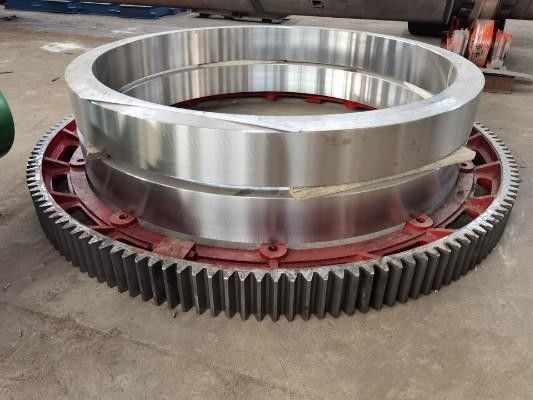

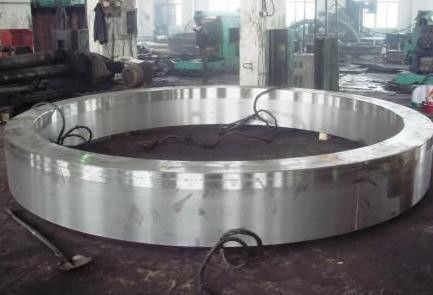

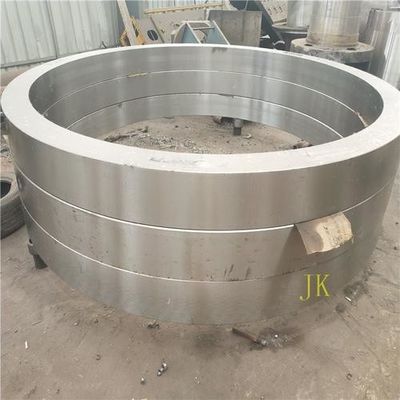

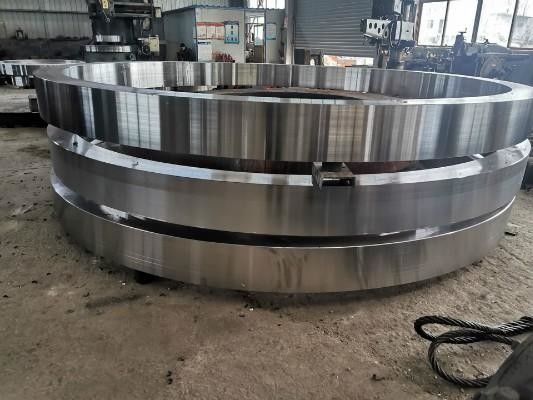

Rotary kiln tyre is the main equipment for claiming cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc.

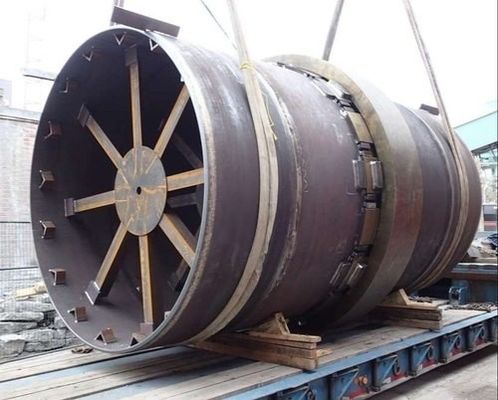

The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc.
It has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily.
Through the technical renovations, the rotary kiln claiming system equipment has adopted the advanced hydraulic thrust roller device,and the other national advanced technologies.
Rotary kiln tyre is used for calcinating high standard cement in cement factories, but also widely used in metallurgy, construction and chemical industry.
The rotary kiln produced by our factory has strong structure, smooth operation, and high quality products. Besides, we provide our customers with advanced and efficient shaft preheater and five stage cyclone preheater.
Rotary kiln tyre belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.
Rotary kiln is used for calcimine of high aluminum vandal ochre in refractory material industry; for calcimine of calotte and aluminum hydroxide in aluminum manufacturer; for claiming of chrome sand ore and chrome powder ore in chemical plant.
| Specification | Capacity(t/d) | Kiln obliquity (%) | Bearing quantity | Kiln rotation speed(r/min) | Main driving (r/min) | ||||||
| Motor | Reductor | ||||||||||
| Main driving | Auxiliary driving | Type |
Rated power (KW) |
Speed adjustment range (r/min) | Rated voltage (v) | Type | Speed ratio | ||||
| Φ2.5×40 | 180 | 3.5 | 3 | 0.98-2.94 | 0.036 | YCT315-4B | 45 | 132-1320 | 380 | ZS145-1-I | 49.63 |
| Φ2.5×60 | 168 | 3.5 | 4 | 0.516-1.549 | 0.036 | YCT355-4B | 75 | 440-1320 | 380 | ZS165-7-II | 99.96 |
| Φ3×48 | 700 | 3.5 | 3 | 0.726-3.63 | 0.1375 | ZSN4-280-091B | 110 | 200-1000 | 440 | ZSY450-35-V | 30.794 |
| Φ3×60 | 3.5 | 4 | 0.492-1.476 | 0.034 | YCT355-4B | 75 | 440-1320 | 380 | ZL165-7-I | 99.96 | |
| Φ3×100.94 | 450 | 4 | 4 | 0.3-1.503 | 0.275 | ZSN4-250-21B | 90 | 100-1000 | 440 | NZS995-90-VI-L | 90 |
| Φ3.2×46 | 1000 | 3.5 | 3 | 0.36-3.57 | 0.108 | ZSN4-280-091B | 160 | 100-1000 | 440 | NZS995-40VIBR | 40 |
| Φ3.2×52 | 1200 | 3.5 | 3 | 0.343-2.34 | 0.102 | ZSN4-280-21B | 125 | 100-1000 | 440 | ZSY1110-71BLVI | 71.54 |
| Φ3.3×50 | 1300 | 3.5 | 3 | 0.676-3.38 | 0.106 | ZSN4-280-091B | 160 | 200-1000 | 440 | NZS1110-40VI | 40 |
| Φ3.3×52 | 1300 | 3.5 | 3 | 0.266-2.66 | 0.0838 | ZSN4-280-11B | 125 | 100-1000 | 440 | NZS995-40VIBR |
40 |
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
ZTIC's Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
ZTIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
