Home ProductsCement Rotary Kiln

500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality

500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality
500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality

Large Image :  500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE/rohs
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 500000-2000000usd
Packaging Details: regular packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Detailed Product Description
Product Specification (m): Φ2.5×40-Φ6.0×95 Diameter (m): 2.5-6
Length (m): 40-95 Obliquity (%): 3-4
Capacity (t/d): 180-10000 Rotation Speed (r/min): Max5
Motor Power (kw): 55-950*2 Total Weight (t): 149.61-1659
Materials: Q235/Q345
High Light:

10000tpd Cement Rotary Kiln

,

50tpd Cement Rotary Kiln

,

10000tpd Lime Rotary Kiln

cement rotary kiln and lime rotary kiln with 50-10000tpd for cement production line

Cement Rotary Kiln

Rotary kiln is also known as rotation kiln. There are many kinds of rotary kiln produced by our company,according to applicable industries, it is divided into metallurgical rotary kiln and chemical rotary kiln; According to the applicable materials, it can be divided into cement rotary kiln, lime kiln, ceramic sand rotary kiln, metal magnesium rotary kiln, bauxite kiln etc.The rotary kiln is composed of barrel, supporting device, catch wheel supporting device, transmission device, movable kiln head, kiln tail sealing device, and coal injection pipe device.

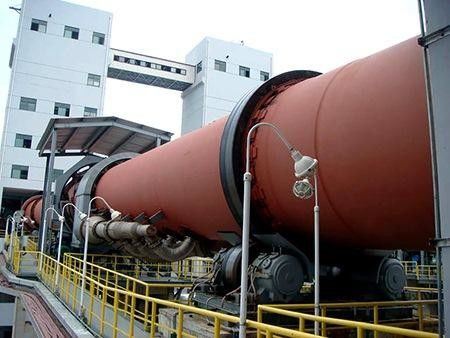

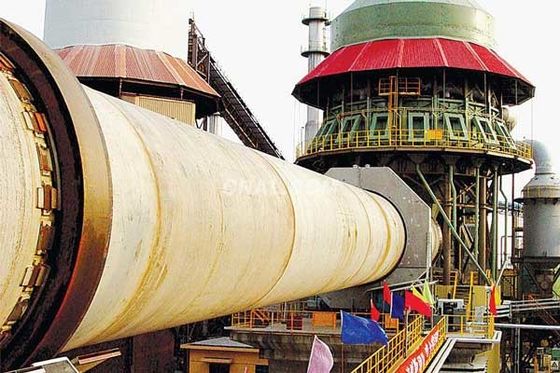

500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 0500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 1



Technical Parameters of rotary kiln



Product Specification (m) Kiln dimensions Motor power (kw) Total weight (t) note
Diameter(m) Length (m) Obliquity (%) Capacity (t/d) Rotation speed (r/min)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61 -----
Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 -----
Φ2.5×54 2.5 54 3.5 280 0.48-1.45 55 196.29 outside disassemble kiln
Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ------
Φ2.8×44 2.8 44 3.5 450 0.437-2.18 55 201.58 outside disassemble kiln
Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ------
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237 outside disassemble klin
Φ3.0×60 3 60 3 800 0.3-2 100 310 ------
Φ3.2×50 3.5 50 4 1000 0.6-3 125 278 disassemble klin

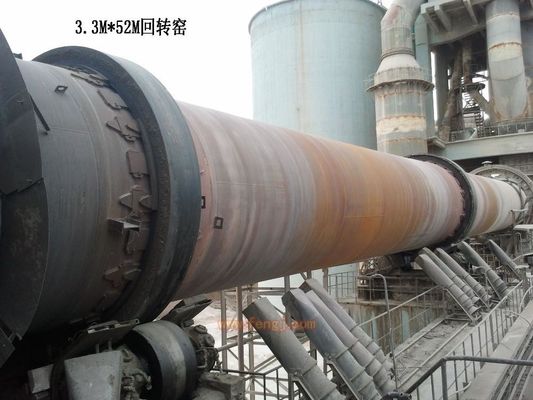

Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 kiln with preheater precalcine
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 kiln with prehrater precalcine
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Generating klin for usimg ofterheat
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456 klin with prehrater precalcine
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 klin with prehrater precalcine
Φ4.2×60 4.2 60 4 2750 0.41-4.07 375 633 klin with prehrater precalcine
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 klin with prehrater precalcine
Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4 klin with prehrater precalcine
Φ4.7×74 4.7 74 4 4500 0.35-4 630 849 klin with prehrater precalcine
Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899 klin with prehrater precalcine
Φ5.0×74 5 74 4 6000 0.35-4 710 944 klin with prehrater precalcine
Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265 klin with prehrater precalcine
Φ6.0×95 6 95 4 10000 Max5 950×2 1659 klin with prehrater precalcine

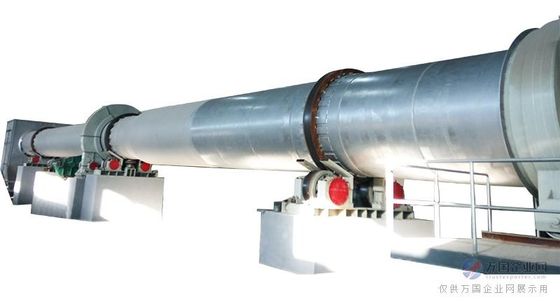

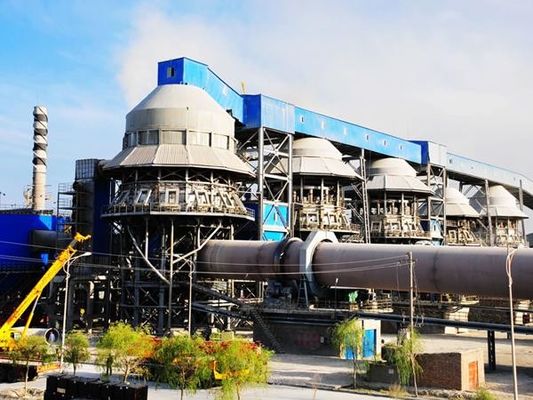

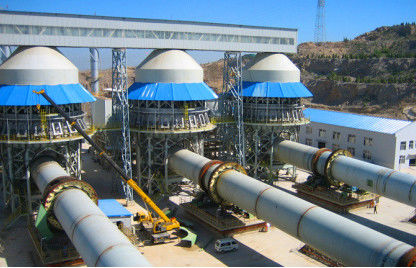

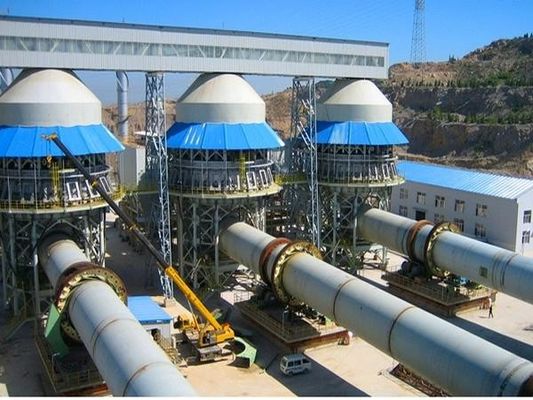

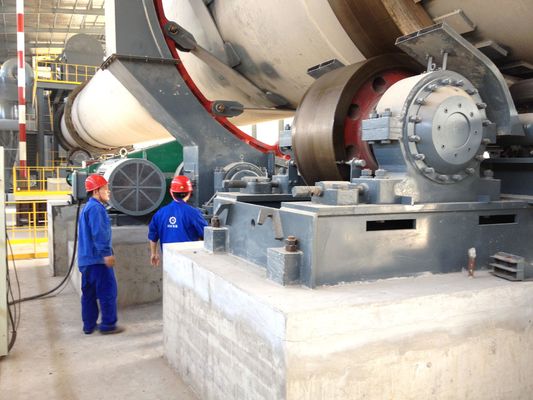

500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 2500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 3500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 4500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 5500-10000tpd Lime rotary Kiln For Cement Production Line and cement rotary kiln with long life and good quality 6
