| Product Name: | Grinding Steel Mill Balls | Surface Hardness: | 58-65HRC |
|---|---|---|---|
| Out Of Round Rate: | 1%max | Microstructure: | M+C |
| Impact Value: | 15 J/CM^2 | Diameter Tolerance: | +2mm,-1mm |
| High Light: | 150mm Steel Mill Balls,30mm Steel Mill Balls,30mm Forged Steel Ball |
||

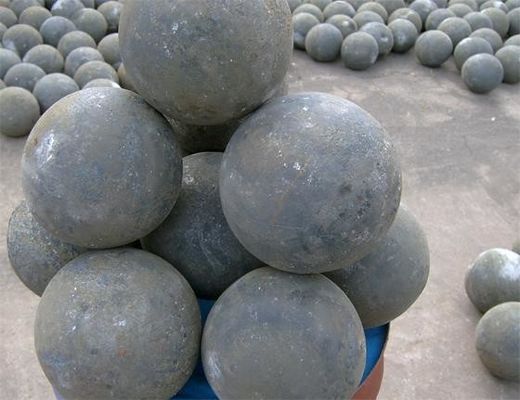

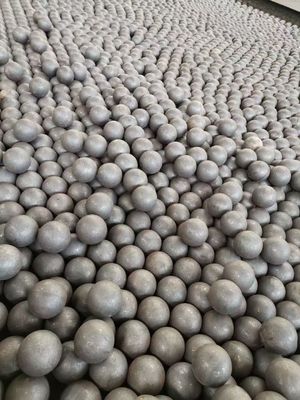

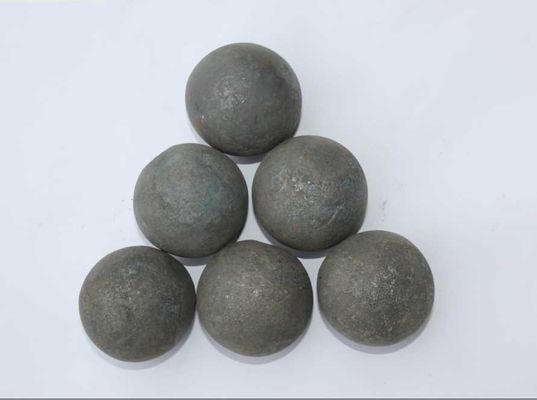

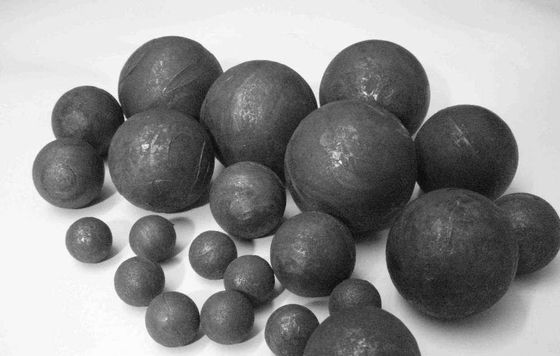

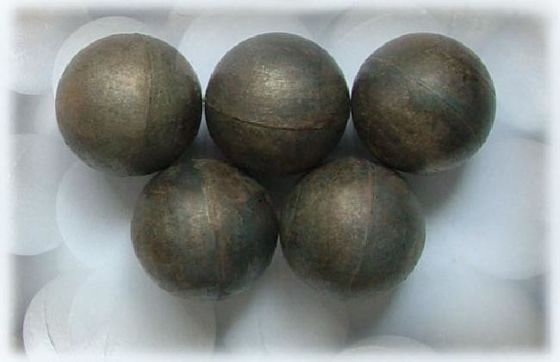

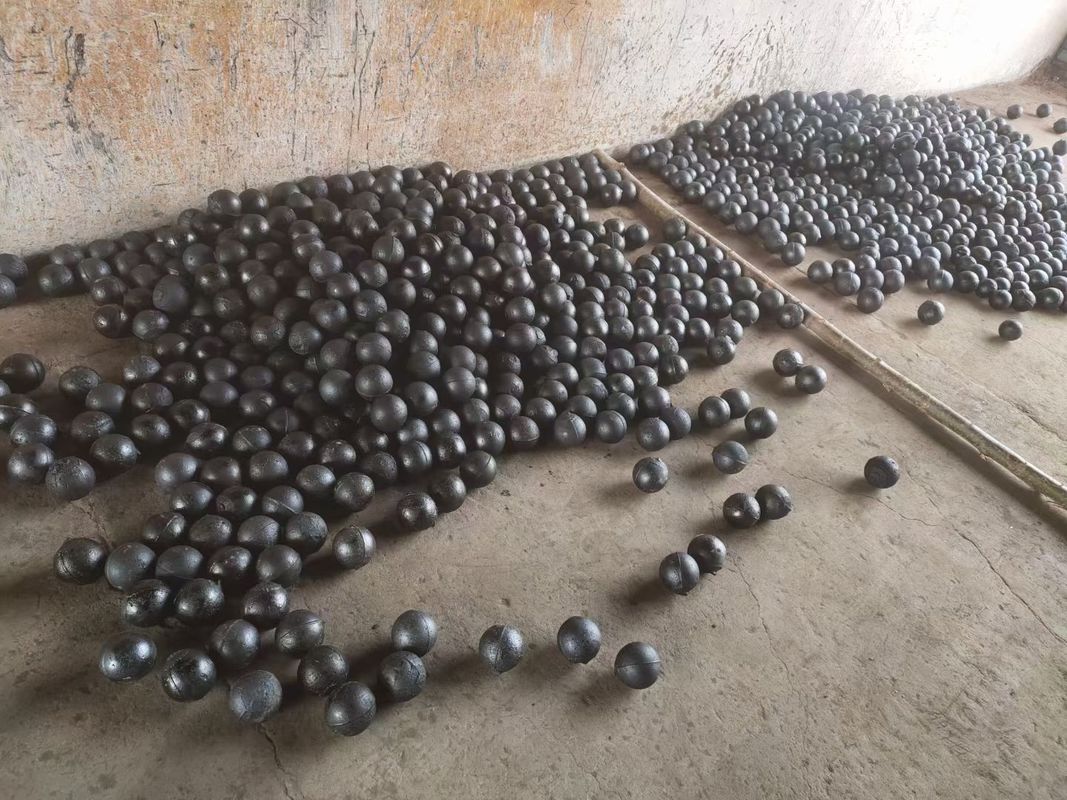

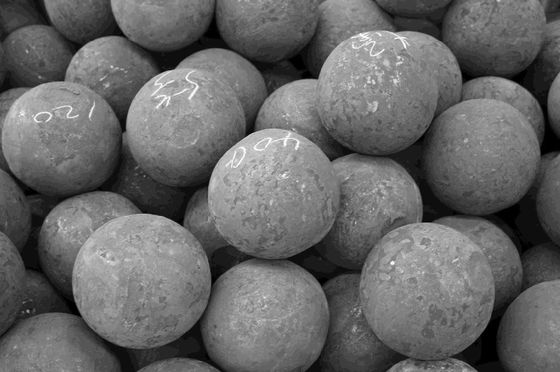

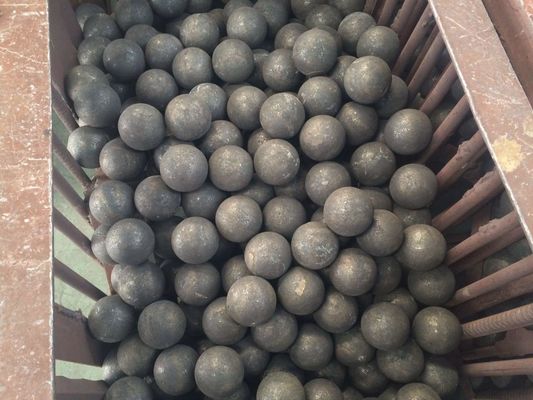

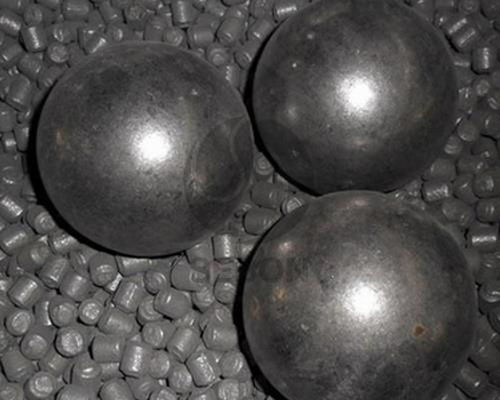

custom grinding steel mill balls Forged steel ball with high quality
Production process of Forged steel ball
1)Fully automatic production line of hot rolling steel ball
Manual put material into storage rack→automatic continued feeding device→stokehole pinch roll feeding device→furnace heating→pinch roll discharging speediness discharging→enter into rolling ball machine→rolling ball quenching system→steel ball sweltering self tempering device→finished product steel ball
2)Semi automatic production line of hot forging steel ball
Cutting raw material→furnace heating→forging→enter into rolling ball machine→Isothermal system→quenching system→steel ball sweltering self tempering device→finished product steel ball
3)Traditional production line of forged steel ball
Cutting raw material→furnace heating→forging→Isothermal system→quenching system→steel ball sweltering self tempering device→finished product steel ball
1.Diameter tolerance and roundness
| Diameter | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 125 | 150 |
| Diameter roundness(mm) | ±2 | +3,-2 | +4,-3 | +5,-4 | ||||||||
| Roundness(%) | ≤2 | ≤3 | ≤4 | ≤5 | ||||||||

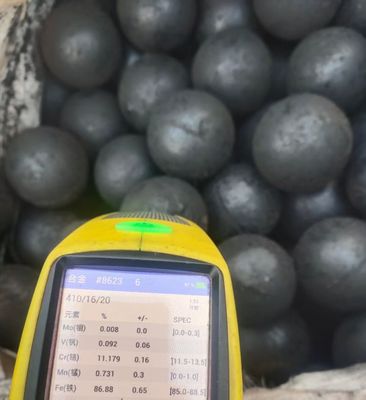

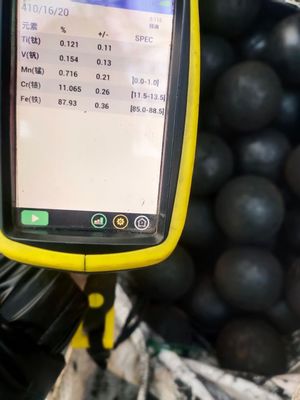

2.Chemical composition
| Brand | C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | Ni(%) |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.80 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 40Mn | 0.37-0.44 | 0.17-0.37 | 0.7-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 50Mn | 0.48-0.56 | 0.17-0.37 | 0.60-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 60Mn | 0.57-0.65 | 0.17-0.37 | 0.70-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 70Mn | 0.67-0.75 | 0.17-0.37 | 0.90-1.20 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 40Cr | 0.37-0.45 | 0.17-0.37 | 0.50-0.8 | 0.80-1.1 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 42CrMo | 0.38-0.45 | 0.17-0.37 | 0.50-0.80 | 0.90-1.2 | 0-0.03 | 0.15-0.25 | 0-0.035 | 0-0.035 | 0-0.30 |
| 70Cr2 | 0.65-0.75 | 0.20-0.30 | 0.75-0.90 | 0.55-0.70 | 0-0.25 | 0-0.30 | 0-0.030 | 0-0.030 | 0-0.30 |
| 40Mn2 | 0.37-0.44 | 0.17-0.37 | 1.4-1.8 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.30 | 0-0.30 |
| 70Mn2 | 0.65-0.75 | 0.20-0.45 | 1.4-1.8 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.030 | 0-0.30 |
| B-1 | 0.52-0.65 | 0.17-0.37 | 0.60-1.2 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-2 | 0.70-0.80 | 0.17-0.37 | 0.70-0.80 | 0.50-0.60 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-3 | 0.58-0.66 | 1.2-1.6 | 0.65-0.80 | 0.70-0.90 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-4 | 0.60-0.65 | 1.6-1.7 | 0.7-0.8 | 0.7-0.8 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-6 | 0.75-0.85 | 0.2-0.40 | 0.9-1.0 | 0.85-0.95 | 0-0.25 | 0.06-0.13 | 0-0.035 | 02-0.035 | 0.06-0.13 |
| B-6A | 0.82-0.95 | 0.20-0.40 | 0.92-1.02 | 0.80-0.95 | 0-0.25 | 0.06-0.10 | 0-0.035 | 0-0.035 | 0.06-0.10 |
| B-7 | 0.35-0.40 | 0.17-0.37 | 0.7-0.8 | 0.9-1.0 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| BU | 0.95-1.05 | 0.17-0.37 | 0.9-1.10 | 0.40-0.60 | 0-0.15 | 0-0.05 | 0-0.035 | 0-0.035 | 0-0.30 |
| Gr15 | 0.95-1.05 | 0.15-0.35 | 0.20-0.40 | 1.30-1.65 | 0-0.25 | 0-0.10 | 0-0.027 | 0-0.020 | 0-0.10 |
3.Technical specification
| Brand | Breakage rate |
Hardness (HRC) |
Impact value (J/cm²) |
Drop times (times) |
Micro structure |
| 45# | <1% | ≥45 | ≥12 | ≥8000 | M+C |
| 40Mn | <1% | ≥50 | ≥12 | ≥10000 | M+C |
| 50Mn | <1% | ≥55 | ≥12 | ≥10000 | M+C |
| 60Mn | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| 65Mn | <1% | ≥58 | ≥12 | ≥12000 | M+C |
| 70Mn | <1% | ≥60 | ≥12 | ≥12000 | M+C |
| 40Cr | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| 42CrMo | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| 70Cr2 | <1% | ≥58 | ≥12 | ≥12000 | M+C |
| 40Mn2 | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| 70Mn2 | <1% | ≥58 | ≥12 | ≥12000 | M+C |
| B-1 | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| B-2 | <1% | ≥58 | ≥12 | ≥15000 | M+C |
| B-3 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| B-4 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| B-6 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| B-6A | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| B-7 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| BU | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| Gr15 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
