45-163 TPH symons cone crusher For Stone Crushing Stable Performance

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

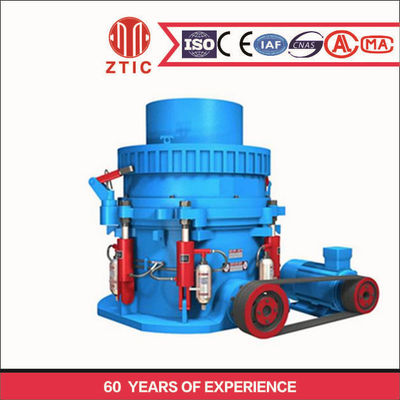

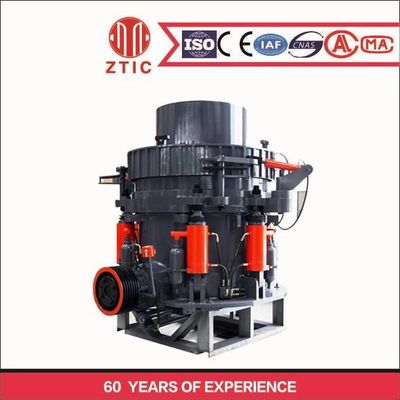

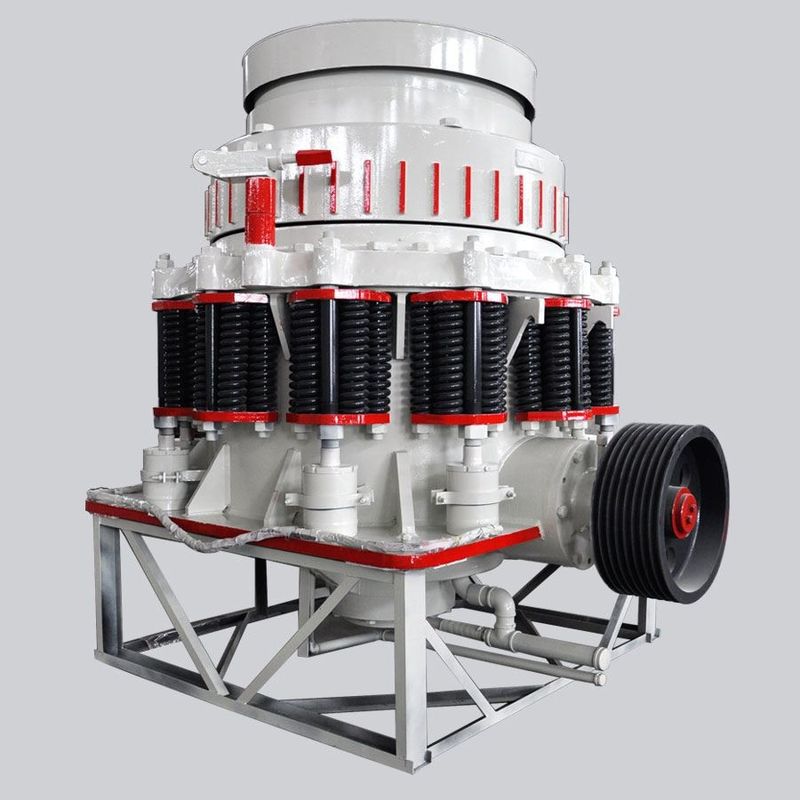

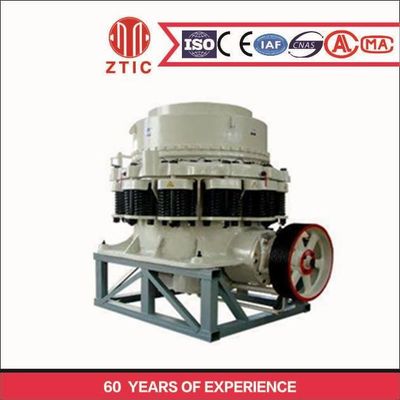

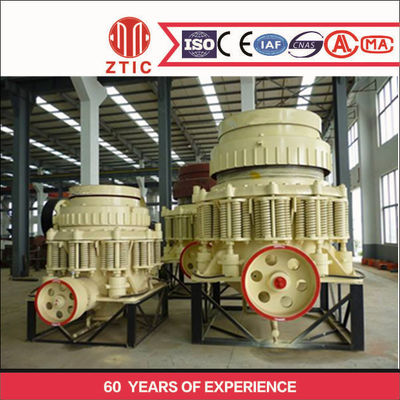

45-163 TPH symons cone crusher For Stone Crushing Stable Performance

45-163 TPH symons cone crusher For Stone Crushing Stable Performance
45-163 TPH symons cone crusher For Stone Crushing Stable Performance 45-163 TPH symons cone crusher For Stone Crushing Stable Performance 45-163 TPH symons cone crusher For Stone Crushing Stable Performance 45-163 TPH symons cone crusher For Stone Crushing Stable Performance 45-163 TPH symons cone crusher For Stone Crushing Stable Performance

Large Image :  45-163 TPH symons cone crusher For Stone Crushing Stable Performance

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: regular packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Detailed Product Description
Cone Dia.: 900mm Discharge Range Size(mm): 9-38
Max. Feeding Size(mm): 85-150 Capacity (t/h): 45-163
Power (kw): 75kw Weight (kg): 9980
Key Selling Points: Easy To Operate Dimension(L*W*H): Specific Model
High Light:

163 TPH Symons Cone Crusher

,

45 TPH Symons Cone Crusher

,

163 T/H symons cone crusher

High Capacity Simon Cone Crusher For Stone Crushing With Stable Performance



Product introduction:

Symons cone crusher is a modern high performance crusher integrating high swing frequency, optimized cavity type and reasonable stroke on the basis of introducing and absorbing foreign technology and according to customer demand, based on lamination crushing principle and concept of more damage and less wear.

Simons cone crusher is an improved, optimized and updated alternative product of PY series spring cone crusher. Compared with PY series spring cone crusher, it is characterized by reliable structure, high production efficiency, convenient adjustment and economical use. The series simons cone crusher spring safety system is overload protection device, can make the metal foreign body through the crushing chamber without harming the machine, using dry oil seal form, so that the stone powder and lubricating oil isolation, to ensure reliable work. It can be widely used in metal and non-metal mining, cement plant, construction, sand and stone metallurgy and other industries. , non-ferrous ores, granite, limestone, quartzite, sandstone, pebbles and so on.



45-163 TPH symons cone crusher For Stone Crushing Stable Performance 0

Application Field:
Quarry, mining,coal mining, concrete batching plant, dry mortar, power plant desulfurization,quartz sand, etc

Suitable Material:
Cobble, grantite,basalt, iron, limestone, quartzite, diabase, iron ore, gold ore, cooper ore,etc.

45-163 TPH symons cone crusher For Stone Crushing Stable Performance 1

Principle of Operation:
When symons cone crusher works, pass by the triangle, the big belt wheel, a transmission axis, a small bevel gear, bevel gear drive the eccentric sleeve, broken cone axis under the forced motion of eccentric shaft sleeve rotation and movement, makes the broken wall surface and sometimes near and sometimes leave the surface of the rolling mortar wall, so that the material will send to the moving cone of circular cone crushing cavity continually squeezed impact and bending and crushing. After many times of extrusion impact and bending, the material is broken to the required size and discharged through the lower part.

Performance characteristics:
1. According to the production needs, users can choose the crushing cavity type with high crushing efficiency, uniform product particle size and appropriate granule type.
2. The unique dustproof sealing structure prolongs the replacement cycle of lubricating oil and the service life of parts.
3. Key components are made of special materials to support large crushing force.
4. Long crushing arm, large stroke, large crushing force and high yield.
5. Hydraulic cavity cleaning system, easy to operate, reduce downtime.
6. Stable performance, low operating cost and long service life of wearing parts.

45-163 TPH symons cone crusher For Stone Crushing Stable Performance 2



Spec.
Model
Cavity type
Cone Dia.
Discharge range size(mm)
Max.
feeding size(mm)
Capacity
(t/h)
Power
(kw)
Weight
(kg)


3''ft
PSGB-0910
standard fine


900mm
9-22
85
45-91


75kw


9980
PSGB-0917
standard coarse
13-38
150
59-163
PSGB-0918
standard extra coarse
25-38
150
118-163
PSGB-0904
short head fine
3-13
35
27-90
10530
PSGB-0906
short head medium
3-16
65
27-100
PSGB-0907
short head coarse
6-19
85
59-129
