Product Details:
Payment & Shipping Terms:
|
| Voltage:: | 380V | Power:: | 11kw--400kw, 11-400kw |
|---|---|---|---|
| Inner Diameter:: | 1200-4200mm | Length:: | 12000-42000mm |
| Capacity:: | 2-46t/h | Slope:: | 1.8-2.5° |
| High Light: | 42000mm Industrial Rotary Dryer,12000mm Industrial Rotary Dryer,Rotary Dryer Ore Dressing Equipment |
||

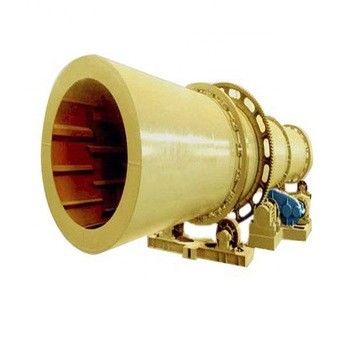

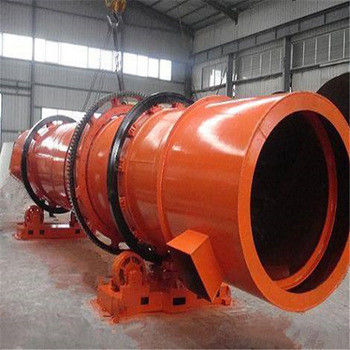

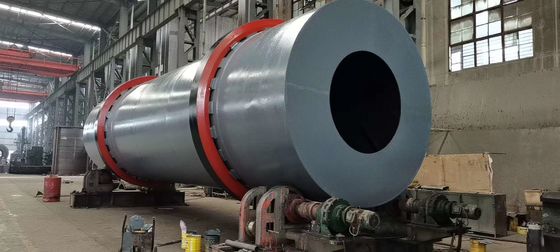

12000-42000mm big capacity Rotary Dryer with High drying efficiency
Introduction
The material inside the rotary dryer has heat exchange with the high temperature flue gas through shell rotating and material lifting by lifter. The rotary dryer has many good characters like: high efficiency, big capacity, high running rate, saving energy, easy for maintenance, long working life. Variety angle of the lifter will increase the heating exchange rate and short drying time. That is widely used for drying lay, slag, fly ash & etc.
Application
Drying the concentrate by metallic and non-metallic magnetic separation,flotation,gravity concentration ,cement clay, coal slime, ore, steel slag, quartz sand, kaolin, peng bentonite, etc.
Advantages
1. After the welding of bases for supporting devices of supporting roller and catching roller, vibration aging treatment should be applied for remove the welding stress. Then, use vertical lathe and boring-milling machine for integration fabrication. This process can guarantee the requirement of fabrication precision and dimension & location tolerance. Installation accuracy of rotary kiln is obviously improved.
2.Variety angle of the lifter will increase the heating exchange rate and short drying time.
3.High drying efficiency, big capacity, high running rate
4.Compact structure, operation stable, easy maintenance
Main production equipment list
| NO. | Equipment list | Spec | Unit | Quantity(set) | |||
| Total | Own | Lease | New purchase | ||||
| 1 | CNC vertical lathe | Φ8000mm | Set | 1 | 1 | ||
| 2 | CNC vertical lathe | Φ5000mm | Set | 1 | 1 | ||
| 3 | CNC vertical lathe | Φ2500mm | Set | 3 | 1 | 2 | |
| 4 | CNC forming mill | YK73125 | Set | 1 | 1 | ||
| 5 | Gear hobbing machine | 3.2m | Set | 2 | 2 | ||
| 6 | Gear hobbing machine | 8m | Set | 1 | 1 | ||
| 7 | Gear hobbing machine | 14m | Set | 1 | 1 | ||
| 8 | C650 lathe | CW6160B | Set | 3 | 3 | ||
| 9 | C630 lathe | C630 | Set | 4 | 4 | ||
| 10 | Heavy sleeper | Φ6*20m | Set | 2 | 2 | ||
| 11 | Heavy sleeper | Φ2*100m | Set | 3 | 2 | 1 | |
| 12 | Digital display boring and milling machine | TX611/4 | Set | 2 | 2 | ||
| 13 | 220Boring and milling machine | B665 | Set | 1 | 1 | ||
| 14 | Universal milling machine | X63W | Set | 1 | 1 | ||
| 15 | 80Radial drilling machine | Z3080X26 | Set | 6 | 3 | 3 | |
| 16 | Hard bearing balancing machine | YYW-3000S | Set | 1 | |||
| 17 | AC electric welding machine | B×3-630-2 | Set | 9 | 5 | 4 | |
| 18 | DC electric welding machine | SS400 | Set | 8 | 3 | 5 | |
| 19 | 100 ton gantry crane | MG100/10 | Set | 1 | 1 | ||
| 20 | Double beam bridge crane | QDA5.32/5 | Set | 3 | 2 | 1 | |
| 21 | Double beam bridge crane | QDA5.150/10 | Set | 1 | 1 | ||
| 22 | CNC blanking | Set | 1 | 1 | |||
| 23 | Rolling machine | δ=100 | Set | 1 | 1 | ||
