1800kw Kaplan Turbine Generator Unit Power Generation Equipment

1800kw Kaplan Turbine Generator Unit Power Generation Equipment
1800kw Kaplan Turbine Generator Unit Power Generation Equipment 1800kw Kaplan Turbine Generator Unit Power Generation Equipment

Large Image :  1800kw Kaplan Turbine Generator Unit Power Generation Equipment

Product Details:
Place of Origin: Henan,China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: 1800kw Kaplan Turbine Generator
Payment & Shipping Terms:
Minimum Order Quantity: 1 set/sets
Price: negotiate
Payment Terms: L/C, T/T
Supply Ability: 5000 Set/Sets per Year
Detailed Product Description
Application: Hydropower Plant Capacity Power: 1800kw
Design Flow Rate: 22 M³/s Model: Generator
Warranty: 12 Month Keyword: Hydro Power Turbine
Type: Power Generation Equipment Generator Type: SF1800-18/2150
High Light:

1800kw Hydro Turbine Generator

,

22 m3/s Kaplan Turbine Generator

,

Hydropower Plant Kaplan Turbine Generator

Hydro Turbine Generator 1800kw Kaplan Turbine Generator Unit Power Generation Equipment



1. About us

Luoyang Zhongtai Industries CO.,LTD is focused on design and manufacturing hydro turbines.

The company was founded in 2014. Luoyang Zhongtai strictly abides by IEC international standards and national standards. And has CE, ISO,TUV,SGS certificates. In the management system, we still adhere to the rigorous work style formed in the turbine industry for many years, and continuously improve and improve the management system of the enterprise. We have been increasing our technical strength and equipment investment, focusing on the production, manufacture and installation of hydro-generator equipment, power station auxiliary equipment and various components. We always provide customers with technical advice, services and the best technical solutions based on customer parameters. At the same time, we provide continuous after-sales service for our products. Adhere to honesty and pragmatism, quality first, broad mind, and invest in our work with a life attitude, and strive to create a win-win situation for customers, enterprises and society.



2. Technical Description

According to the requirements of China's GB standard, the user should ensure that the pressure pipeline can withstand a general working pressure of 20 bar over its entire length. The pipeline should be installed straight, without sharp peaks and big bends, and no force, pressure or vibration should be applied. A note about the environmental conditions of the power station: the highest altitude is 3000 meters, the temperature ranges from -15°C to +40°C, and the maximum humidity is 85% at 40°C. All electrical equipment is recommended to be installed and used in a moisture-proof, moisture-proof, and waterproof space, and the equipment should be maintained regularly.All electrical equipment is recommended to be installed and used in a moisture-proof, moisture-proof, and waterproof space, and the equipment should be maintained regularly.



3. Technical Parameters

Technical Parameters
Net Head Hr 10 m
Design Flow Rate Qr 22 M³/s
Capacity Power P 1×1800 kw
Turbine parameters Generator parameters
Turbine type ZDC19-LH-175 Generator type SF1800-18/2150
Layout pattern Vertical Layout pattern Vertical
Runner diameter D1(cm) 175 Rated power P(KW) 1800
Unit speed n11(r/min) 184.46 Rated voltage U(V) 6300
Unit discharge Q11(m3/s) 2.27 Rated current I(A) 206.2
Model efficiency of design point ηm% 92.3 Rated power factor cosφ

0.8(lagging)



Prototype efficiency of

design point ηt%

93

(After correction)

Excitation voltage (V)



108
Maximum model efficiency ηt% 93.6

Excitation current(A)



190
Rated speed n(r/min) 333.3 Generator efficiency ηg% 95.6
Turbine Rated output P(KW) 2007 Generator speed n(r/min) 333.3

Maximum axial hydraulic

thrust PZ(T)

24

Number of phase



3
Cavitation coefficient σ 0.7 Frequency f(Hz) 50
Runaway speed n 飞(r/min) 655.6 Insulation class F/F
Weight of runner(t) 2.1 Excitation mode Brushless excitation
Weight of turbine(t) 20 Weight of generator(t) 27

Weight of turbine maximum

hoisting piece(t)

13.5 Weight of generator maximum hoisting piece(t) 11.6

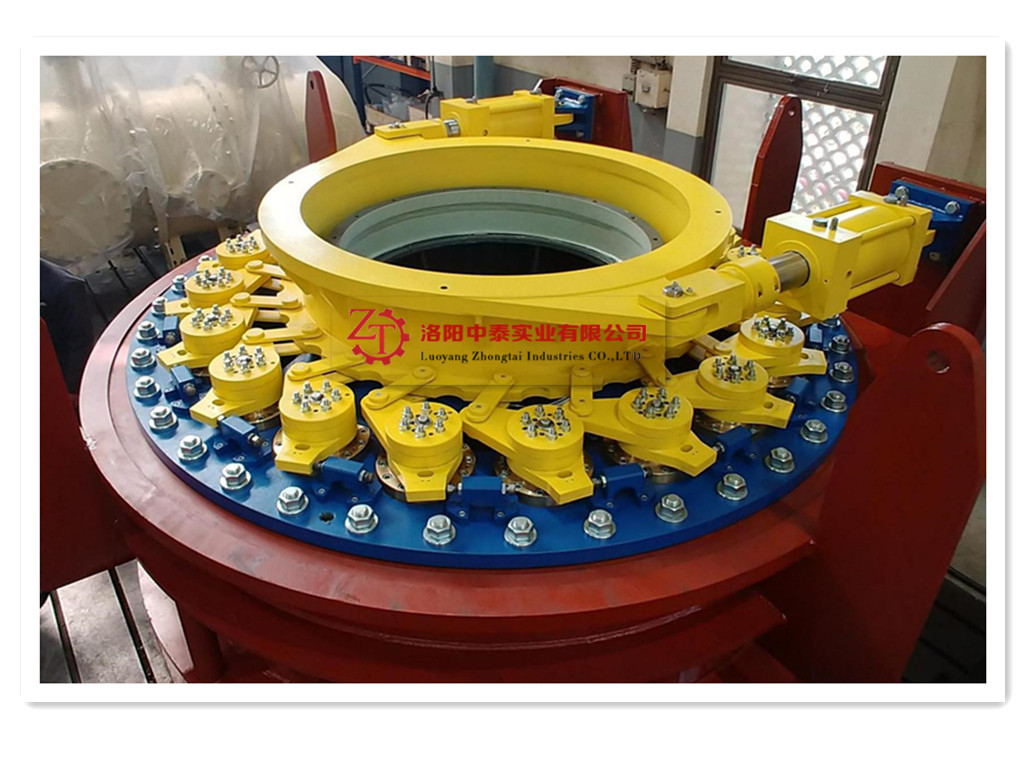

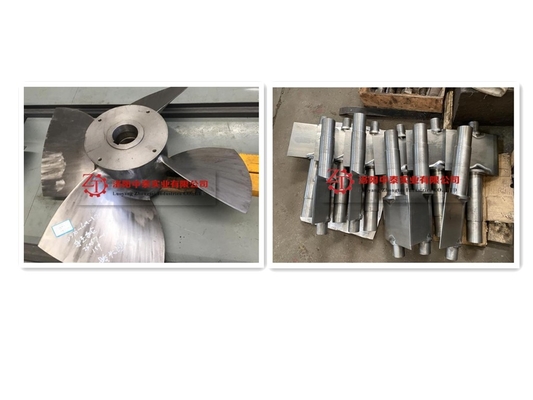

1800kw Kaplan Turbine Generator Unit Power Generation Equipment 01800kw Kaplan Turbine Generator Unit Power Generation Equipment 1
