Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Material: | Pebbles, Quartzite, Sandstone, Basalt, Silicon Carbide |
|---|---|---|---|
| Warranty: | 12 Month | Name: | Sand Making Machine |
| Application: | Stones And Bulk Materials | Place Of Origin: | Henan, China |
| Feed Size Max: | 100-150MM | Type: | Stone Crusher Machine |
| High Light: | CE Stone Crusher Sand Making Machine,Self Striking Vertical Impact Crusher |
||

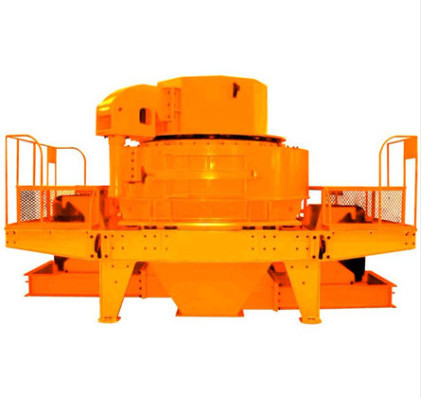

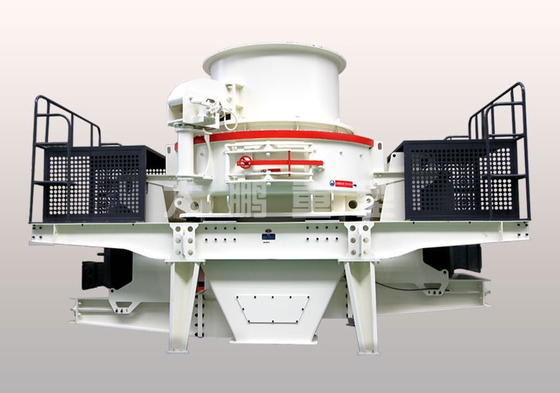

High Production Sand Making Machine Impact Crusher For Mining Industry
1.Product Introduction
PL series vertical impact crusher is a high performance sand making equipment with international advanced level, which is developed and produced by our company absorbing German advanced technology. The machine has "stone crusher" and "stone iron crusher" two forms, "stone iron" type than "stone stone" type sand rate 10-20% higher.
This machine is widely used for the fine grinding and rough grinding of metal and non-metal ore, construction aggregate, cement, refractory material, abrasive, glass raw material, artificial sand and stone and various metallurgical slag, and also can be used for the shaping of high-grade highway pavement stone. Especially for medium hard, extra hard and high abrasive materials such as pebbles, quartzite, sandstone, basalt, silicon carbide, gold steel sand, sintered bauxite and other materials crushing than other types of crusher has more advantages.
2.Applicable scope of sand making machine Stone Crusher Machine
This series of sand making machine is suitable for crushing and shaping soft or medium hard and extremely hard materials. It is widely used in all kinds of ores, cement, refractory materials, aluminum soil clinker, emery, glass raw materials, mechanical construction sand, stone and various metallurgical slag. Especially for silicon carbide, emery, sintered bauxite, sand and other high hard, extra hard and abrasion resistant materials than other types of crusher output efficiency is higher.
In the engineering field, it is the ideal production equipment for machine-made sand, cushion material, asphalt concrete and cement concrete aggregate.
In the mining field, it is widely used in the front grinding process, which can produce a large amount of fine ore and reduce the high cost of grinding load.
Due to the excellent low wear characteristics of this series of sand making machine, the equipment is also used for high abrasion and secondary disintegration and crushing production. In addition, due to the zero pollution of the product, impact crushing function is well adapted to the production of glass quartz sand and other high purity materials, 10-500t/h production capacity range, impact crusher can almost meet any production requirements.
3.Sand Making Machine Technical parameters Stone Crusher Machine
| Model | Feed size Max(mm) | Impeller speed(r/min) | through-put capacity(t/h) | Motor power(kw) |
| PL700 | 45(70) | 1700-2000 | 30-60 | 75-90 |
| PL800 | 55(70) | 1400-1620 | 50-90 | 110-150 |
| PL900 | 65(80) | 1330-1530 | 80-150 | 180-264 |
| PL1050 | 80(100) | 1200-1400 | 150-250 | 264-320 |
| PL1250 | 100(150) | 1000-1100 | 250-500 | 440-500 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Contact Person: Mr. David
Tel: 86-18637916126
