Product Details:
Payment & Shipping Terms:
|
| Model: | Cement Rotary Kiln | Type: | Dry Cement Rotary Kiln, Semi-dry Cement Rotary Kiln And Wet Cement Rotary Kiln |
|---|---|---|---|
| Condition: | New | Kiln Body: | High Quality Carbon Steel Or Alloy Steel Plate |
| Production Capacity: | 5000-12000 T/d | Thrust Roller Form: | Hydraulic Pressure |
| Keyword: | China Rotary Kiln | Warranty: | 12 Month |
| High Light: | 12000t Cement Rotary Kiln,5000t Cement Rotary Kiln,CE Rotary Kiln For Cement Plant |
||

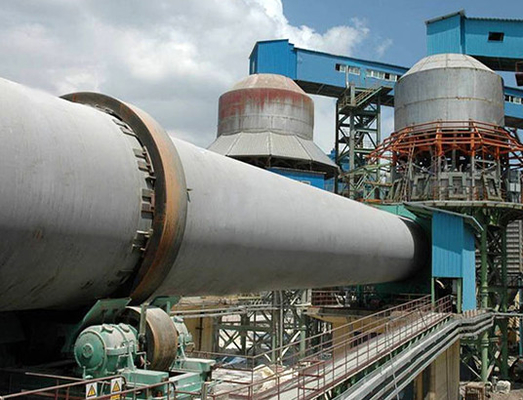

Daily Capacity 5000 - 12000t Cement Rotary Kiln For Cement Plant Complete Equipment

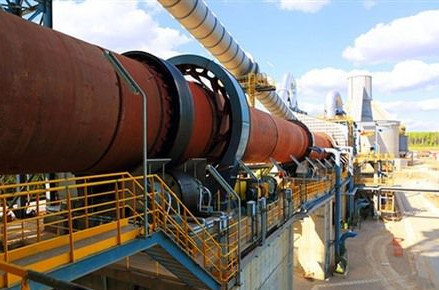

1. Cement rotary kiln structure
It is composed of cylinder body, transmission device, supporting and retaining wheel supporting device, kiln lining, kiln tail sealing, kiln head and fuel device, etc
Luo Mine cement rotary kiln specifications: specifications from φ3.2×50 ~ φ6×95m, output 1000-10000 T /d.
2. Product parameters of large cement rotary kiln
| No. | Type |
Specifications |
Motor |
Thrust Roller form |
Supporting form |
Weight t |
||
|
Rev r/min |
Slope % | Production t/d |
Power kW |
|||||
| 1 | Φ3.2×50 | 0.674～3.37 | 3.5 | 1000 | 160 |
hydraulic pressure |
Slide | 252.4 |
| 2 | Φ3.5×52.5 | 0.6～3.6 | 3.5 | 1500 | 180 | 366.5 | ||
| 3 | Φ4×56 | 0.35～3.5 | 3.5 | 2000 | 250 | 489 | ||
| 4 | Φ4×60 | 0.396～3.96 | 3.5 | 2500 | 315 | 523 | ||
| 5 | Φ4.3×64 | 0.4～3.96 | 3.5 | 3200 | 420 | 606.69 | ||
| 6 | Φ4.8×72 | 0.39～3.96 | 3.5 | 5000 | 630 | 853.3 | ||
| 7 | Φ4.8×74 | 0.35～4 | 4 | 5000 | 630 | 864 | ||
| 8 | Φ5.2×61 | 0.38～3.79 | 3.5 | 5500 | 800 | 859 | ||
| 9 | Φ5×80 | max3.5 | 4 | 6000 | 800 | |||
| 10 | Φ5.6×87 | max4.23 | 4 | 8000 | 800 | 1201 | ||
| 11 | Φ6×90 | max3.5 | 4 | 10000 | 845 × | |||
| 12 | Φ6×95 | max5 | 4 | 10000 | 950×2 | |||

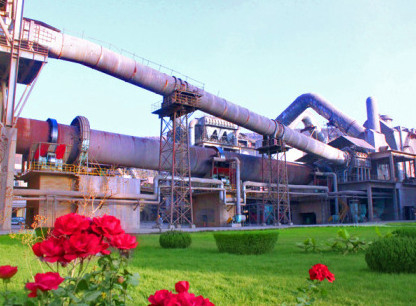

3. Complete set of process equipment and engineering design technology for cement plant with daily output of 5000-12000 tons
Luo Mine has successively developed dozens of sets of complete sets of cement equipment for Pakistan, Thailand, Vietnam, Indonesia and other countries and domestic users, with a daily output of 3500-8000t cement plant complete sets of technology, complete sets of equipment and civil engineering development and design capabilities, and can undertake turnkey projects. It has the ability of developing main machine equipment for 12000t cement production line.
In 1998, a Ф4×60m rotary kiln for 2500T/D new dry cement production line was manufactured. In 2002, finished the manufacture of 5000T/D cement production line with a Ф4.8×72m cement rotary kiln; In 2003, Ф5.6×87m cement rotary kiln for 8000t/d cement production line and Ф6×95m cement rotary kiln for 10000t/d cement production line were manufactured respectively.
4. Technical characteristics of cement rotary kiln in Luo Mine
(1) The kiln body is made of high quality carbon steel or alloy steel plate and automatically welded;
(2) The roller is made of ZG35CrMo or 42CrMo steel;
(3) Sliding bearing adopts large clearance without scraping tile;
(4) Transmission device adopts hard tooth surface reducer, spring diaphragm coupling, DC motor drive;
Depending on our company's strong scientific research ability and production and sales ability, relying on advanced and mature production technology in Luoyang mining machinery industry cluster area, we have cooperated with major well-known enterprises at home and abroad to provide technical services and complete sets of equipment for key projects in national mining, metallurgy, building materials, lifting, electric power, non-ferrous metals, environmental protection, chemical industry, petroleum and other industries. Spare parts. Relying on innovative technology, new products and perfect after-sales service, the company has won the trust and support of more and more domestic and foreign customers.
