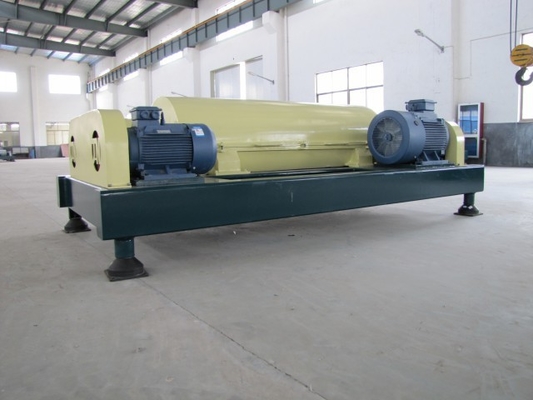

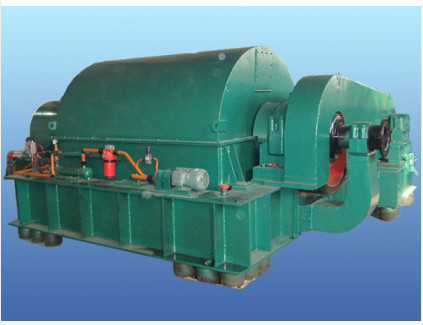

10~60 T/H Settling Centrifuge Horizontal Spiral Discharging Decanting Centrifuge

TCL TL Settling Centrifuge Horizontal Spiral Discharging Centrifuge Ore Dressing Equipment​

1. Product introduction of sedimentation centrifuge

Sedimentation centrifuge is a new type of horizontal spiral unloading centrifuge, its working principle is the use of solid-liquid specific gravity difference, and rely on centrifugal force field to expand thousands of times, the solid phase is sedimentation under the action of centrifugal force, so as to achieve solid-liquid separation, and under the action of a special mechanism, respectively discharged from the body. When the centrifugal filtration because of solid particles easy to plug the filter medium and filter resistance is too large or too much fine particles leakage, the filter centrifuge can not achieve the ideal separation effect, at this time the sedimentation centrifuge has the incomparable advantages of the filter. The solid particles with small particle size can be separated from the liquid phase by centrifugal sedimentation principle.

2. Working principle of sedimentation centrifuge

A centrifuge for separating suspension components by centrifugal sedimentation. The suspension added to the drum forms a circular liquid layer under the action of centrifugal force, in which the solid particles settle onto the drum wall and form sediment. The clarified liquid is discharged through the drum overflow port or suction pipe, called separation liquid. The sediment is discharged manually or mechanically at the end of separation. Solid particles in the process of settling to the drum wall, but also with the liquid flow for axial movement, when the feed amount is too large, with the liquid flow to the overflow mouth, and has not settled to the wall of the fine particles with the separation liquid discharged to the drum, so that the separation liquid turbidity. For the difficult to separate suspension with small density difference between solid and liquid phase, small solid particles or large liquid viscosity, a sedimentation centrifuge with high separation factor should be selected to prolong the suspension's stay time in the drum (such as reducing the feed amount or using a long drum, etc.), so as to ensure the clarification of the separation liquid. Sedimentation centrifuge has a wide range of uses, especially suitable for centrifugal filtration because solid particles are easy to block the filter medium and filtration resistance is too large or fine particles leakage is too much suspension separation, but the moisture content of sediment is high. Sedimentation centrifuge can be used for crystallization, chemical precipitation, coal and other suspension separation, dehydration of sewage sludge and animal and plant oil residue clarification, etc.

3. TCL, TC series sedimentation centrifuge technical performance:
