| Product: | Sand Washing Machine | Name: | Sand Washer |
|---|---|---|---|
| Condition: | New | XS Series Capacity(t/h): | 20-180 T/h |
| Used: | For Washing And Dehydration Of Construction Sand And Stone Materials | XS Series Speed: | 0.8-1.2 Rpm |
| WCD Series Washing Size: | ≤10mm | Type: | Ore Dressing Equipment |
| Warranty: | 12 Months | Color: | Custom |
| High Light: | 180 T/H Ore Dressing Equipment,180 T/H Stone Washing Machine,180 T/H Sand Washing Machine |
||
Ore Dressing Equipment Sand Washing Machine Sand And Stone Washing Machine
1. Product description of sand and stone washing machine

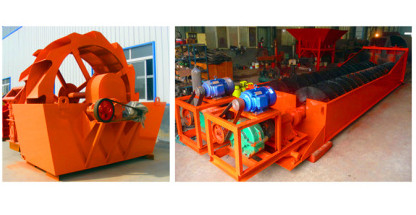

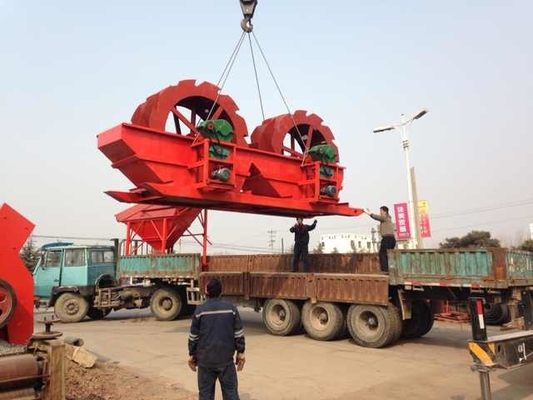

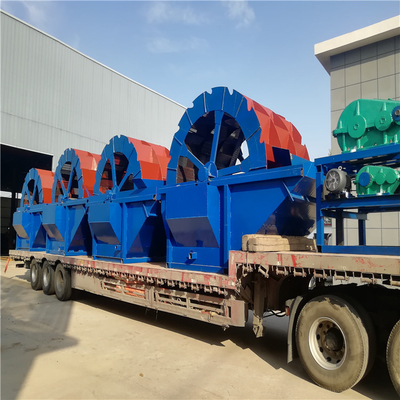

Ore Dressing Equipment XS series sand washing machine is a kind of wheel bucket washing equipment. It is mainly used for washing and dehydration of construction sand and stone materials.
It is mainly used for washing, grading and dewatering of sand and stone in construction site, sand and stone factory, concrete dam site of hydropower station, post and electricity pole factory, quartz sand in glass factory and pressure sand for oil well backfilling.

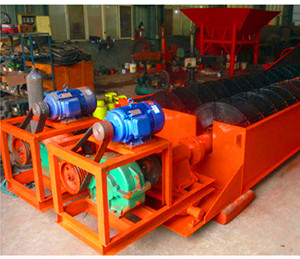

Spiral sand washing and sorting machine is formed in the lower part of the inclined tank, driving bolt rotation, from the bottom of the sedimentation tank into the cleaning water, so as to complete the cleaning, dehydration and classification of three functions. Spiral sand washing machine is suitable for washing, grading, impurity removal and other operations in metallurgy, building materials, hydropower and other industries, and is used for washing of fine-grained and coarse-grained materials. It is suitable for building sand and road sand. Spiral sand washing machine power consumption is small, high cleanliness. Good sealing structure, fully closed transmission device, adjustable weir plate, ensure the product efficient, durable, good cleaning, dehydration effect, fine products to maintain stability and other characteristics.
2.Product parameters of sand and stone washing machine
| SPEC | XS2600 | XS2600Ⅱ | XS2800 | XS3200 | XS3600 |
| Wheel bucket diameter(mm) | 2600 | 2600 | 2800 | 3200 | 3600 |
| Speed(rpm) | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 |
| Processing capacity(t/h) | 20-50 | 30-70 | 50-100 | 80-120 | 120-180 |
| Motor power(kw) | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Model | WCD-1500 | WCD-1118 | WCD-914 | WCD-762 | WCD-610 | WCD-508 |
| Screw diameter (mm) | 1500 | 1118 | 914 | 762 | 610 | 508 |
| Tank length (mm) | 10512 | 9554 | 7815 | 7620 | 7225 | 6705 |
| Washing size (mm) | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
| Production capacity (t/h) | 130～220 | 100～175 | 75～100 | 50～75 | 40～50 | 20 |
| Screw speed (RPM) | 13 | 18 | 20 | 26 | 32 | 38 |
| Motor power (KW) | 18.5 | 15 | 11 | 11 | 7.5 | 5.5 |
| Water consumption (t/h) | 14～190 | 20～168 | 10～80 | 9～63 | 6～63 | 6～60 |
| Machine weight (t) | 16.5 | 8.6 | 6.5 | 5.2 | 3.8 | 2.6 |
| Model | 2WCD-1118 | 2WCD-914 | 2WCD-762 |
| Screw diameter (mm) | 1118 | 914 | 762 |
| Tank length (mm) | 9325 | 6886 | 6886 |
| Washing size (mm) | ≤10 | ≤10 | ≤10 |
| Production capacity (t/h) | 200～300 | 150～200 | 100～145 |
| Screw speed (RMP) | 17 | 21 | 26 |
| Motor power (KW) | 2*15 | 2*11 | 2*11 |
| Water consumption (t/h) | 200～250 | 120～150 | 136～182 |
| Machine weight (t) | 19.8 | 13.5 | 8.1 |
