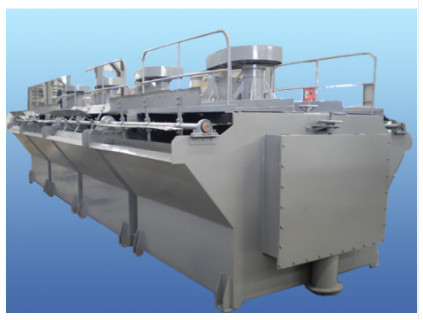

Large Suction Capacity Impeller Flotation Machine 0.2-38 M3/Min

Large Image : Large Suction Capacity Impeller Flotation Machine 0.2-38 M3/Min

Product Details:

Place of Origin:	Henan, China
Brand Name:	ZTIC
Certification:	ISO/CE
Model Number:	Flotation Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set/Sets
Price:	negotiable
Packaging Details:	Export standard container or as customers requirements for flotation machine
Supply Ability:	500 Set/Sets per Year

Contact Now

Detailed Product Description

Modle:	SF/XJM Flotation Machine	Condition:	New
Name:	Flotation Separator	Type:	Ore Dressing Equipment
Production Capacity:	0.2-8 , 0.2-38 M3/min	Weight:	468-4486 Kg
Max.air Injection Amount:	2 M3/㎡·min	Impeller Diameter:	300 Mm
Impeller Rotation Speed:	191-400 R/min	Color:	Custom
Warranty:	12 Months	Port:	QingDao,ShangHai,TianJin
Highlight:	Large Suction Capacity Impeller Flotation Machine , 38 M3/Min Impeller Flotation Machine , 0.2M3/Min Impeller Flotation Machine

Large Suction Capacity New Impeller Flotation Machine Ore Dressing Equipment

1. Introduction of flotation machine ore dressing equipment

Flotation machine is suitable for the separation of non-ferrous metals, but also for the separation of non-metals such as coal stone, talc.

The flotation machine adopts "U" type tank, hollow shaft inflation and suspension stator, especially a new impeller. It is a conical impeller with blades tilted backward at an Angle, similar to centrifugal pump wheels with high specific speed. It has a large amount of pulp, small pressure head, low power consumption and simple structure. A porous cylindrical air distributor is also installed in the impeller chamber, so that the air can be evenly dispersed in most areas of the impeller blade in advance, providing a larger pulp - air contact interface.

2. Technical parameters of flotation machine

Ore dressing equipment Technical data:

(1)SF Flotation Machine

Model		SF0.37	SF0.7	SF1.2	SF2.8	SF4	SF8
Trough capacity(m3)		0.37	0.7	1.2	2.8	4	8
Impeller diameter(mm)		300	350	450	550	650	T60
Production capacity (m3/min)		0.2-0.4	0.3-0.9	0.6-1.2	1.5-3.5	0.5-4	4-8
Impeller rotation speed (r/min)		352	400	312	268	238	191
Motor	Model	①Y90L-4	①Y100L2-4	①Y132M2-6	①Y160L-6	①Y180L-6	①Y250M-8
	Model	②Y90S-4	②Y90S-4	②Y90S-4	②Y90S-4	②Y90L-4	②Y100L-6
	Power(kw)	①1.5	①3	①5.5	①11	①15	①30
	Power(kw)	②1.1	②1.1	②1.1	②1.1	②1.5	②1.5
Dimensions(mm)		700×700×750	900×820×950	1100×1100×1100	1700×1600×1150	1850×2050×1200	2200×2900×1400
Single trough weight(kg)		468	600	1373	2338	2660	4486

(2)XJM Flotation Machine

Model		XJM-1	XJM-2	XJM-3	XJM-4	XJM-8	XJM-16	XJM-24	XJM-38
Chute dimensions	Length (mm)	1000	1300	1600	1800	2200	2800	3100	3600
	Width (mm)	1000	1300	1600	1800	2200	2800	3100	3600
	Height (mm)	1100	1250	1400	1500	1950	2400	10819	3400
Single effective weight (kg)		1154	1659	2259	2669	3868	6520	8000	16790
Effective cubage (m3)		1	2	3	4	8	16	24	38
Production capacity(calculated by slurry volume) (m3/min)		0.2-1	0.4-2	0.6-3	1.2-4	3-8	4-16	4-24	10-38
Main shaft motor	Model	Y132M2-6	Y160M-6	Y160L-6	Y180L-6	Y200L2-6	Y280S-8	Y280S-8	Y280S-6
Main shaft motor	Power (kw)	5.5	7.5	11	15	22	37	37	45
Impeller
	Rotation speed (r/min)	960	970	970	970	970	740	740	980 -
	Diameter (mm)	400	460	540	620	720	860	950	980 -
	Height (mm)	155	175	207	247	321	349	-	-
	Rotation speed (r/min)	358	331	266	215	185	160	153	-
	Circular velocity (m/s)	7.5	7.5	7.5	7	6.97	7.6	7.6	7.4
Loam board motor	Model	Y90S-4	Y90S-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4
	Power (kw)	1.1	1.1	1.5	1.5	1.5	1.5	1.5	1.5
	Rotation speed (r/min)	1400	1400	1400	1400	1400	1400	1400	1400
Loam board	Rotation speed (r/min)	18	18	16	16	16	16	16	16
Loam board	Diameter (mm)	500	500	580	600	600	700	700	700
Wind pressure of fan (kpa)		≥12.6	≥14.7	≥19.8	≥19.8	≥21.6	≥25.5	≥30.4	≥34.3
Max.air injection amount (m3/㎡·min)		2	2	2	2	2	2	2	2

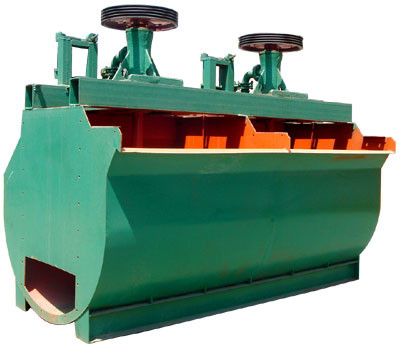

Large Suction Capacity Impeller Flotation Machine 0.2-38 M3/Min 1
