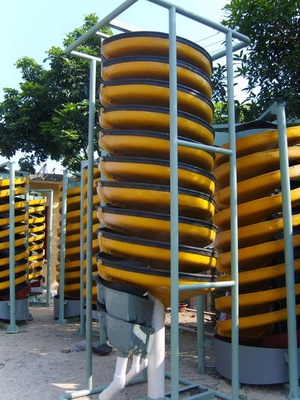

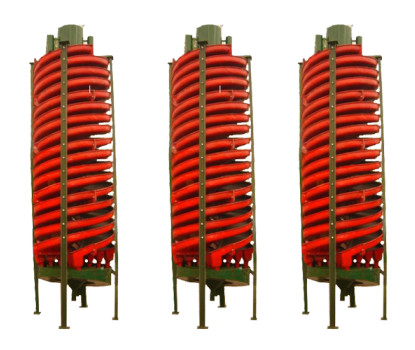

Spiral Chute Separator And Ore Dressing Machine Spiral Sluice
Spiral chute product description ore dressing machine:
1. Spiral chute scope of application:
Suitable for sorting iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zirconite and other metal and non-metal minerals with sufficient specific gravity.
2. Working principle of spiral chute ore dressing machine::
The divider is placed freely on the cross (or tripod) of the supporting table. The uniform pulp is slowly fed to the spiral groove surface through the feeding trough installed at the head of the spiral groove for separation. The tail end of the spiral groove is provided with a valve block type product interception groove, which divides the sorted products into three (or four) kinds according to grade along the radial direction. Use the position of the regulator block to change the cut width of each product. The product concentrator is a concentric annular barrel, which collects and exports the intercepted long ore flow separately. The cross section of spiral chute and the change of slope of curve are especially suitable for the selection of fine granular materials. The beneficiation equipment has the advantages of simple structure, no moving parts, light weight, no noise, convenient configuration, installation and maintenance.
3. Spiral chute product parameters of ore dressing machine
| Model |
5LL-1200 |
5LL-900 |
5LL-600 |
5LL-400 |
| Outer diameter (mm) |
1200 |
900 |
600 |
400 |
| Pitch (mm) |
900 ,720 , 540 |
675 , 540 , 405 |
450 , 360 , 270 |
240 , 180 |
| Pitch to diameter ratio (pitch/diameter) |
0,75 , 0.6 , 0.45 |
0.75 , 0.6 , 0.45 |
0.75 , 0.6 , 0.45 |
0.6 , 0.45 |
| Transverse Angle (degree) |
9° |
9° |
9° |
9° |
|
Each most
Number of mounting screws
|
4 |
4 |
3 |
2 |
| Feeding size (mm) |
0.3-.0.03 |
0.3-.0.03 |
0.2-0.02 |
0.2-0.02 |
| Ore feeding concentration (%) |
25-55 |
25-55 |
25-55 |
25-55 |
| Production capacity (ton/hour) |
4-6 |
2-3 |
0.8-1.2 |
0.15-0.2 |
| Dimensions |
L(mm) |
1360 |
1060 |
700 |
460 |
| W(mm) |
1360 |
1060 |
700 |
460 |
| H(mm) |
5230 |
4000 |
2600 |
1500 |
| Weight(kg) |
600 |
400 |
150 |
50 |
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
