Product Details:
Payment & Shipping Terms:
|
| Model: | NZS、NZ、NT Series | Name: | High Efficiency Concentrator |
|---|---|---|---|
| Suitable: | Dewatering Concentrate And Tailings In Concentrator | Processing Capacity: | Max 6250 T/d |
| Advantage: | High Efficiency | Application: | Metallurgy, Chemical Industry，coal,environmental Protection |
| Mention Rake Part Methods: | Hand Control、Automatic | Type: | Ore Dressing Equipment |
| Certification: | IOS/CE | Warranty: | 12 Months |
| High Light: | Ore Dressing Equipment Concentrator,Ore Concentrate Thickener,High Efficiency Concentrate Thickener |
||

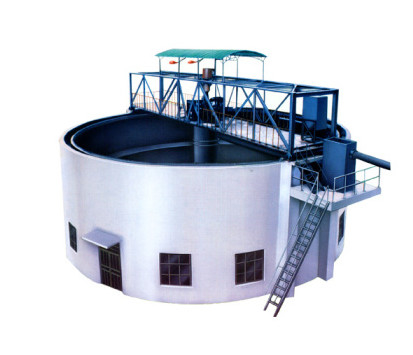

Ore Dressing Equipment High efficiency Concentrator Ore Concentrate Thickener
1.Ore dressing equipment high efficiency concentrator product Description:
The high efficiency concentrator produced by our company is suitable for dewatering concentrate and tailings in concentrator, increasing pulp from 20-30% to 40-70%, widely used in metallurgy, chemical industry, coal, non-metallic beneficiation, environmental protection and other industries.
In fact, high efficiency concentrator is not a simple sedimentation equipment, but a new type of dehydration equipment combined with mud layer filtration characteristics.
2. Ore dressing equipment characteristics of high efficiency concentrator:
(1) Add flocculant to increase the size of settling solid particles, so as to accelerate the settling speed;
(2) Install inclined plate to shorten the settlement distance of ore particles and increase the settlement area;
(3) Play the role of flocculation, filtration, compression and increasing processing capacity of mud sediment thick phase layer;
(4) Equipped with complete automatic control facilities.
3. Ore dressing equipment product parameters of high efficiency concentrator:
Technical parameters of high efficiency concentrator:
| ITEM | Concentration basin(m) | Desilting area(m2) | Mention rake part | Motor | Processing capacity(t/d) | Weight (t) | |||||
| Model | Spec | Inner diameter | Depth | Floor of pool | Methods | Height (m) | One-turm time (min/r) | Drive | Lift | ||
| NZS-1 | Φ1.8m | 1.8 | 1.8 | 2.54 | Hand control | 0.16 | 2 | Y90L-6 1.1KW | ---- | 5.6 | 1.235 |
| NZS-3 | Φ3.6m | 3.6 | 1.8 | 10.2 | Hand control | 0.35 | 2.5 | Y90L-6 1.1KW | ---- | 22.4 | 3.064 |
| NZS-6 | Φ6m | 6 | 3 | 28.3 | Hand control | 0.2 | 3.7 | Y90S-4 1.1KW | ---- | 62 | 8.751 |
| NZSF-6 | Φ6m | 6 | 3 | 28.3 | Hand control | 3.7 | Y90S-4 1.1KW | ---- | 62 | 3.649 | |
| NZ-9 | Φ9m | 9 | 3 | 63.6 | Automatic | 0.25 | 4.34 | Y132S-6 3KW | XWD0.8-3 0.8KW | 140 | 6.134 |
| NZS-9 | Φ9m | 9 | 3 | 63.6 | Hand control | 0.25 | 4.34 | Y132S-6 3KW | ---- | 140 | 5.146 |
| NZS-12 | Φ12m | 12 | 3.5 | 113 | Hand control | 0.25 | 5.28 | Y132S-6 3KW | ---- | 250 | 8.51 |
| NZ-15 | Φ15m | 15 | 4.4 | 176 | Automatic | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 350 | 21.757 |
| NZ-20 | Φ20m | 20 | 4.4 | 314 | Automatic | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 960 | 24.504 |
| NZ-30 | Φ30m | 30 | 7.165 | 707 | ---- | 0.61 | 13.7 | Y100L1-4 2.2×2KW | YCJ132-S 1.5KW | ---- | 31.8 |
| NZS-45 | Φ45m | 45 | 4.636 | 1590 | Hand control | ---- | 20 | JTC672A-44 5.2KW | YCJ160-S 2.2KW |
515 |
47.81 |
| NT-15 | Φ15m | 15 | 3.5 | 177 | ---- | ---- | 8.4 | Y132M2-6 5.5KW |
---- |
390 | 11 |
| NQ-18 | Φ18m | 18 | 3.5 | 255 | ---- | ---- | 10 | Y132M2-6 5.5KW | ---- | 560 | 10 |
| NQ-24 | Φ24m | 24 | 3.4 | 452 | ---- | ---- | 12.7 | Y160M-6 7.5KW | ---- | 1000 | 23.3 |
| NG-30 | Φ30m | 30 | 3.6 | 707 | ---- | ---- | 16 | Y160M-6 7.5KW | ---- | 1570 | 26.42 |
| NJ-38 | Φ38m | 38 | 4.9 | 1134 | ---- | ---- | 10-25 | JZT252-4 11KW | Y160M-6 7.5KW | 1600 | 55.26 |
| NT-45 | Φ45m | 45 | 5.05 | 1590 | Automatic | ---- | 19.3 | Y160L-6 11KW |
---- |
2400 | 58.64 |
| NTJ-53 | Φ53m | 53 | 5.07 | 2202 | ---- | ---- | 23.18 | Y180L-6-15kw | ---- | 6250 | 79.80 |
| NT-100 | Φ100m | 100 | 5.65 | 7846 |
---- |
---- |
43 | Y180L-6 15KW |
---- |
3030 | 199.648 |
