| Condition: | New | Name: | Accessories Of Hydraulic Gyratory Crusher |
|---|---|---|---|
| Material: | Coarse Crushing Ore Or Rock | SPEC: | Customizable |
| Application: | In Metallurgy, Building Materials, Chemical Industry, Hydropower And Other Industries | Transmission Department: | Small Bevel Gear, Shaft, Transmission Housing |
| Usage: | Coarse Smash Equipment | Eccentric Sleeve: | Eccentric Sleeve, Disc, Big Gear, Oblique Key |
| Middle Frame Body: | Top Body, Bottom Body, Backing Plate, | Cylinder Part: | Cylinder Block, Lower Bushing, Piston, Plunger |
| Type: | Castings And Forgings | Warranty: | 12 Months |
| High Light: | Gyratory Crusher Castings And Forgings,Hydraulic Crusher Castings And Forgings,Hydraulic Gyratory Crusher Accessories |
||
Castings And Forgings Accessories Of Hydraulic Gyratory Crusher

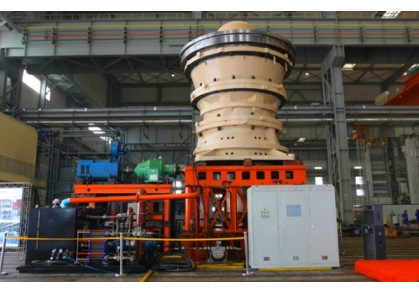

1. Hydraulic gyratory crusher Product Introduction
Hydraulic gyratory crusher is widely used in metallurgy, building materials, chemical industry, hydropower and other industries. It is one of the main equipment for coarse crushing ore or rock, and has the characteristics of large crushing ratio, high production capacity and uniform particle size of products.
Luo Mine design and manufacture of rotary crusher from PXZ-0506 to PXZ-1623 has formed a series, complete product specifications, advanced design, reliable performance, smooth work, low energy consumption. Luo mine production of hydraulic rotary crusher has PXZ(heavy) and PXQ(light) two series, which PXZ series used for crushing medium or above the hardness of various materials; PXQ series are used for crushing various materials with medium or below hardness.

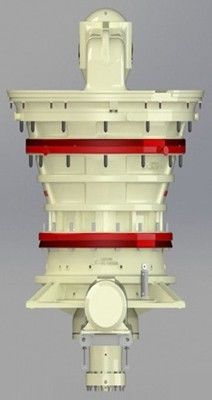

2. Hydraulic gyratory crusher Structure

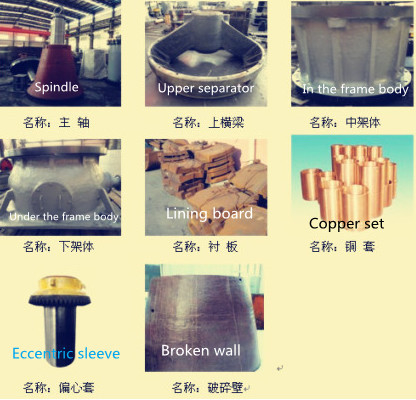

3.Gyratory crusher accessories table
| Accessories | SPEC | |
| Middle frame body | Top body, bottom body, backing plate, lining plate, pin | customizable |
| Transmission department | Small bevel gear, shaft, transmission housing, bearing seat, bearing cover, oil pan, base, sleeve, coupling, pulley | customizable |
| The frame part | Base, guard plate, footwall, middle plate, bushing rib, lining plate, upper ring | customizable |
| Eccentric sleeve | Eccentric sleeve, disc, big gear, oblique key | customizable |
| Crushing cone part | Spindle, cone, upper bushing, lower bushing, upper ring, central ring, lower ring, nut, stop ring | customizable |
| Beam | Beam, ribbed guard plate, top cap, copper sleeve, cone sleeve, steel sleeve, guard plate, square head screw, wedge, sealing ring | customizable |
| Original motion Department | Support frame body, end sliding seat, shaft, bearing cover, small pulley, middle sliding seat, coupling | customizable |
| Cylinder part | Cylinder block, lower bushing, piston, plunger, cylinder bottom, O-ring, upper bushing, lower friction plate, middle friction plate, upper friction plate | customizable |
| Lubrication part | Thin oil station, electric dry oil station, oil pump, dry oil filter, oil feeder | customizable |
| Hydraulic department | Piston accumulator, one-way throttle valve | customizable |
