Product Details:
Payment & Shipping Terms:
|
| Name: | Hammer Crusher Accessories | Model: | Hammer Crusher |
|---|---|---|---|
| SPEC: | Customizable | Accessories Set: | Feeding Roller,Rack Part,Rotor Part,Crushing Plate Part,Grate Section |
| Hot Sale: | Hammer Crusher Hammer Head | Materials: | High Hammer Steel, Super High Manganese Steel, Alloy Steel |
| Keyword: | Hammer Crusher Accessories | Casting: | Single Material Or Bimetal Composite Casting, Mosaic Composite Casting |
| Type: | Castings And Forgings | Warranty: | 12 Months |
| High Light: | Forgings Hammer Crusher Hammer Head,Castings Hammer Crusher Hammer Head,Castings Hammer Crusher Accessories |
||
Hammer Crusher Accessories Hammer Crusher Hammer Head Castings And Forgings

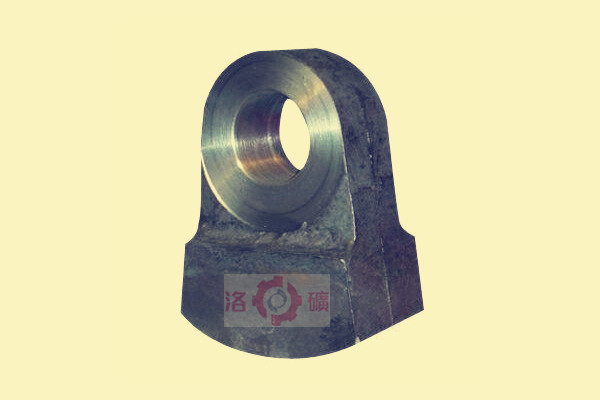

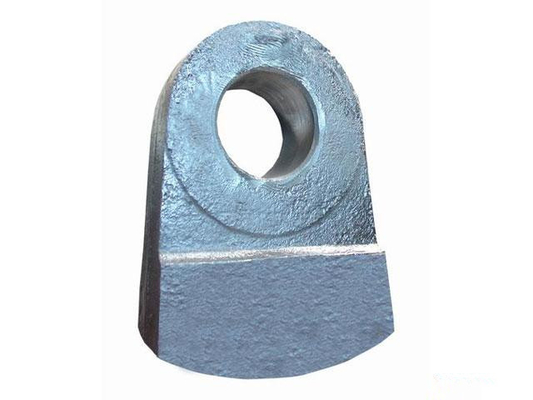

1. Hammer crusher hammer head castings and forgings
The wear mode of hammer head is mainly impact chisel. Different specifications of hammer crusher, due to the different size of hammer head, the use of different working conditions, its wear failure is also different. Using high hammer steel, ultra-high manganese steel, alloy steel, single material or bimetal composite casting, Mosaic composite casting form, combined with advanced production technology to produce a variety of hammer crusher to adapt to different service conditions.
2. Hammer crusher accessories castings and forgings
(1) Feeding roller
Roller bushing, end bushing, light end bushing, middle bushing, light bushing, driving shaft, driven sprocket, bearing lower seat, bearing bush, half roller bushing
(2) Rack part
Lining plate, step lining plate, pressing plate lining plate, side lining plate, cover plate
(3) Rotor part
Hammer head, hammer shaft, spindle, flywheel, bearing cover, bearing seat
(4) Crushing plate part
Broken plate body, lining plate
(5) Grate section
Broken plate body, lining plate
3. Hammer crusher accessories castings and forgings table
| Accessories | SPEC | Materials | Casting | |
| Feeding roller | Roller bushing, end bushing, light end bushing, middle bushing, light bushing, driving shaft, driven sprocket, bearing lower seat, bearing bush, half roller bushing | customizable | High hammer steel, super high manganese steel, alloy steel | Single material or bimetal composite casting, Mosaic composite casting |
| Rack part | Lining plate, step lining plate, pressing plate lining plate, side lining plate, cover plate | customizable | ||
| Rotor part | Hammer head, hammer shaft, spindle, flywheel, bearing cover, bearing seat | customizable | ||
| Crushing plate part | Broken plate body, lining plate | customizable | ||
| Grate section | Broken plate body, lining plate | customizable |
