Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Product: | Disc Filter Fan Plate |
|---|---|---|---|
| Model: | PG/GPY Disc Filter | SPEC: | Customizable |
| Name: | PG/GPY Disc Filter Fan Plate | Filter Plate Number: | 4-12 Pcs |
| Number Of Filter Fans In Each Disk: | 10/12 Pcs | Filter Area: | 18-200 ㎡ |
| Type: | Castings And Forgings | Warranty: | 12 Month |
| High Light: | GPY Disc Filter Fan Plate,PG Disc Filter Fan Plate,Screening Equipment Disc Filter Fan Plate |
||
PG/GPY Disc Filter Fan Plate Castings And Forgings For Washing Screening Equipment

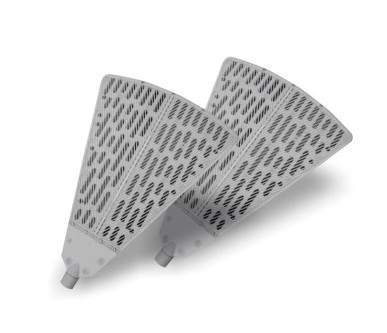

1. Product introduction of fan plate castings and forgings
Fan-shaped plate, disc filter fan-shaped plate, filter plate sector, PG/GPY disc filter sector plate - disc filter fan-shaped plate, a new engineering plastics sector plate light weight, high strength, good hydrophobic, opening rate is high, the better effect of dewatering and cake, filter cake moisture content is low, service life is long, corrosion resistance, convenient decorating.

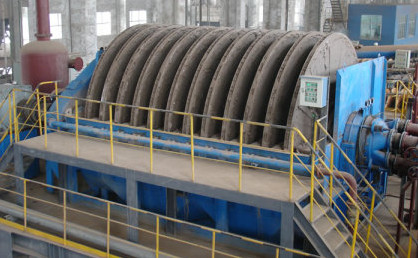

2. Working principle of disc filter
Disc filter mainly by vacuum pump under the action of forming force difference, the formation of particles on the filter cloth filter cake, and through the filter cake and filter cloth exclude liquid phase, solid-liquid separation, used for 0-0.5mm flotation cleaned coal and tail coal and other fine granular material dehydration, can also be used in metallurgy, chemical, petrochemical, sewage treatment solid-liquid separation.
3. Table of related accessories of disc filter castings and forgings
(1) Cylinder body
Inner filter cylinder, outer filter cylinder, folding cylinder
(2) Transmission department
Roller, worm gear, worm gear, reducer,
(3) Filtration section
Filter plate, filter cloth, vacuum head, gas-water separator, wrong air disc
4. Product parameters of fan-shaped plate for disc vacuum filter castings and forgings
(1) Product parameters of fan plate for PG series disc vacuum filter castings and forgings
| Model | PG18-4 | PG27-6 | PG39-4 | PG58-6 | PG78-8 | PG97-10 | PG116-12 |
| Filter area(㎡) | 18 | 27 | 39 | 58 | 78 | 97 | 116 |
|
Filter plate number (PCS) |
4 | 6 | 4 | 6 | 8 | 10 | 12 |
| Filter diameter(mm) | 1800 | 1800 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Number of filter fans in each disk(PCS) | 10 | ||||||
(2) Product parameters of GPY series disc vacuum filter castings and forgings
| Model | GPY-20 | GPY-30 | GPY-40 | GPY-60 | GPY-80 | GPY-100 | GPY-120 | GPY-140 | GPY-160 | GPY-180 | GPY-200 |
| Filter area(㎡) | 20 | 30 | 40 | 60 | 80 | 100 | 120 | 140 | 164 | 184 | 204 |
|
Filter plate number (PCS) |
4 | 6 | 4 | 6 | 8 | 10 | 12 | 7 | 8 | 9 | 10 |
| Filter diameter(mm) | 1800 | 2700 | 3840 | ||||||||
| Number of filter fans in each disk(PCS) | 10 | 12 | |||||||||
