Condition: | New | Name: | ZG270—500 Cast Steel End Cover |
---|---|---|---|
Applicable Industries: | Manufacturing Plant, Energy & Mining | Material: | High Quality Cast Steel |
Processing Technology: | Outside Refining Of Molten Steel Furnace | Type: | Castings And Forgings |
Advantage: | Wear Resistant | Warranty: | 12 Months |
High Light: | Customized Casting Steel End Cap,Mining Casting Steel End Cap,Mining Ball Mill End Cover |
Mining Customized Castings And Forgings Of Ball Mill End Cover
1. Introduction of ball mill end cover castings and forgings
The end cover of the ball mill is one of the main parts of the ball mill produced by our factory. End cover material is ZG270-500.
The strength of the dangerous section of the ball mill end cover is the first problem to be considered in the design of the end cover, because the rather heavy ball mill barrel is supported on the main bearing by the end cover.

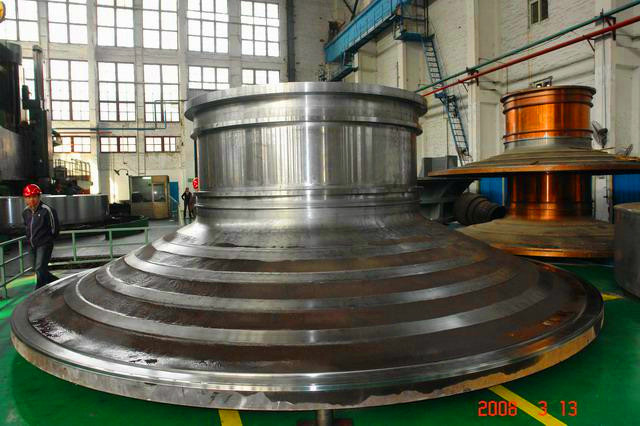

The ball mill end cover is generally slightly conical, which is designed to take into account the configuration of the main bearing, the bending resistance of the journal and the problem of avoiding big gear touching the foundation of the main bearing. The end cover of large and medium-sized ball mill is mostly made of cast steel, while the small ball mill is made of ductile iron. In order to ensure the concentricity of the axis of the end cover and the cylinder, the end cover and the journal are usually cast into one. But in the case of smelting and casting equipment capacity is not enough, they can also be cast separately, after processing, they are fastened together, and finally mechanical processing.
2. Processing technology measures of ball mill end cover castings and forgings
End cover and hollow shaft |
⑴ High quality cast steel ⑵ Large R rounded corners ⑶ High strength bolts are connected with the cylinder body |

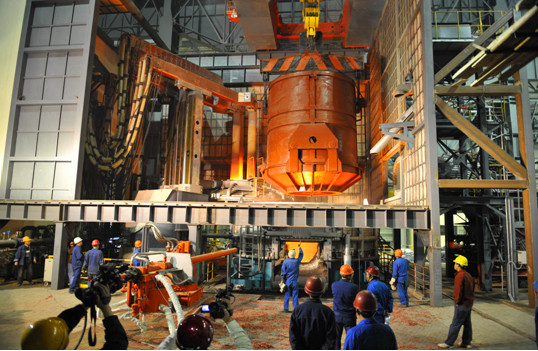

⑴ Outside refining of molten steel furnace (argon blowing and R-H vacuum treatment) (2) The mold adopts special sand, strictly control pouring temperature and pouring speed (3) Journal processing to ensure the coaxiality and roughness of the end face stop |
⑴ Mechanical properties and chemical composition of casting blank (internal control standard) ⑵ Ultrasonic inspection after rough machining ⑶ Ultrasonic inspection and magnetic particle inspection after finishing |
Mining Customized Castings And Forgings Of Ball Mill End Cover
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
