| Condition: | New | Used In: | Coal, Metallurgy, Building Materials, Chemical |
|---|---|---|---|
| Application: | Stones And Bulk Materials | Warranty: | 12 Month |
| Name: | Hammer Crusher | Place Of Origin: | Henan, China |
| Type: | Stone Crusher Machine | Material: | Wet Or Dry |
| High Light: | PCH Type Ring Hammer Crusher,Ring Hammer Crusher For Mining,PCH ring hammer coal crusher |
||

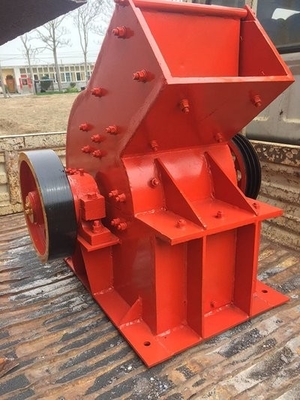

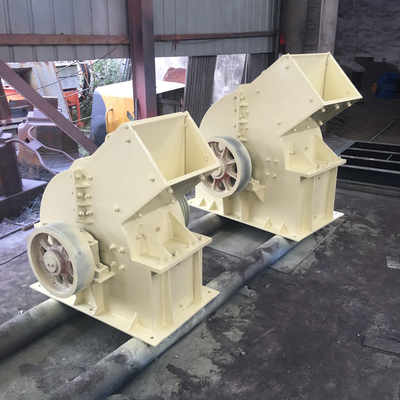

PCH Type Ring Hammer Crusher Of Stone Crusher Machine For Mining
1. Hammer crusher product introduction:
Hammer crusher is widely used in concentrator, refractory factory, cement factory, glass factory and other industrial departments of fine grinding medium hardness materials. Can be used for dry, wet two forms of crushing, wet is the material seepage wet grinding, dry does not allow water seepage and dry grinding.
2. PCH Type Ring Hammer Crusher Of Stone Crusher Machine For Mining USES:
Used in coal, metallurgy, building materials, chemical, electricity and other departments in the broken page or finely coal, coal gangue, limestone, stone, feldspar, gypsum, coke, brick, brick rubble, salt and sulfur, phosphorus, limonite, this machine has the advantage of light body is compact, simple structure, easy operation and maintenance, broken than large, after crushing, less product granularity and the small, high production capacity, low energy consumption, etc.
3. Performance characteristics of PCH ring hammer crusher
a. Large feeding mouth, high crushing chamber, suitable for high hardness of materials, large lumpiness, less stone powder;
b. Material hanging in the air, low crushing power consumption;
c. Novel hammer head, large impact force;
d. Adjustable hammer shaft installation, long life of hammer head;
e. Grid size is adjustable, product particle size is controllable and particle shape is good;
f. The chassis can be turned over to facilitate maintenance;
g. Square shank bolts, impact and wear resistance;
h. Compact structure and strong rigidity;
i. Split-body structure, easy to handle and install.
4.Specifications
| Type | Feed size (mm) |
Discharge size (mm) |
Production capacity (m3/h) |
Motor power(kw) | Total weight(t) | Dimensions (L×W×H)(mm) |
| PCΦ400×300 | ≤200 | ≤25 | 5-10 | 11 | 0.8 | 900×670×860 |
| PCΦ600×400 | ≤250 | ≤30 | 10-22 | 22 | 2.26 | 1200×1050×1200 |
| PCΦ800×600 | ≤250 | ≤35 | 18-40 | 55 | 4.8 | 1310×1180×1310 |
| PCΦ1000×800 | ≤350 | ≤35 | 25-50 | 75 | 5.9 | 1600×1390×1575 |
| PCΦ1000×1000 | ≤350 | ≤35 | 30-55 | 90 | 8 | 1800×1590×1775 |
| PCΦ1200×1200 | ≤350 | ≤35 | 50-80 | 132-160 | 19.2 | 2060×1600×1890 |
| PCΦ1400×1400 | ≤350 | ≤35 | 50-100 | 280 | 32 | 2365×1870×2220 |
| PCΦ1600×1600 | ≤350 | ≤35 | 100-150 | 480 | 37.5 | 3050×2850×2800 |
