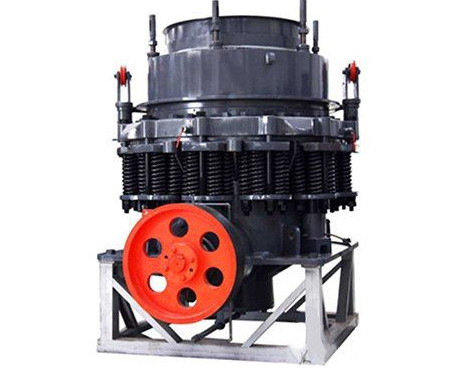

Mining Equipment PY Series Spring Cone Crusher Of Stone Crusher Machine
1. PY series spring cone crusher introduction
PY spring cone crusher is suitable for crushing hard and medium hard ore and rock, such as iron ore, copper ore, limestone, quartz, granite, basalt, diabase, etc., widely used in metallurgical industry, building industry, road building industry, chemical industry and phosphate industry. Spring cone crusher is one of the earliest cone crusher, the machine is developed on the basis of digesting and absorbing various types of cone crusher with the international advanced level in the 1980s. The spring safety system is an overload protection device, which can make metal foreign matter pass through the crushing chamber without harming the machine. It adopts two sealing forms of dry oil or water to isolate stone powder from lubricating oil and ensure reliable work. Crushing chamber type is determined by the use of ore, standard type is suitable for medium crushing; Medium for fine crushing; Short head type is suitable for super fine crushing.
2.PY series spring cone crusher technical parameters
| Model | moving cone diameter (mm) |
Feed size (mm) |
Feed side length Max(mm) | Discharge port adjustment range (mm) |
Processing capacity (t/h) |
power (kw) |
Eccentric shaft speed (r/min) |
Weight (include motor) (t) |
Dimensions (L×W×H) |
| PYB600 | Φ600 | 75 | 65 | 12-15 | 40 | 30 | 356 | 5 | 2234×1370×1675 |
| PYD600 | Φ600 | 40 | 35 | 3-13 | 12-23 | 30 | 356 | 5.5 | 2234×1370×1675 |
| PYB900 | Φ900 | 135 | 115 | 15-50 | 50-90 | 55 | 333 | 11.2 | 2692×1640×2350 |
| PYZ900 | Φ900 | 70 | 60 | 5-20 | 20-65 | 55 | 333 | 11.2 | 2692×1640×2350 |
| PYD900 | Φ900 | 50 | 50 | 3-13 | 15-50 | 55 | 333 | 11.3 | 2692×1640×2350 |
| PYB1200 | Φ1200 | 170 | 145 | 20-50 | 110-168 | 110 | 300 | 24.7 | 2790×1878×2844 |
| PYZ1200 | Φ1200 | 115 | 100 | 8-25 | 42-135 | 110 | 300 | 25 | 2790×1878×2844 |
| PYD1200 | Φ1200 | 60 | 50 | 3-15 | 18-105 | 110 | 300 | 25.3 | 2790×1878×2844 |
| PYB1750 | Φ1750 | 250 | 215 | 25-50 | 280-480 | 160 | 245 | 50.3 | 3910×2894×3809 |
| PYZ1750 | Φ1750 | 215 | 185 | 10-30 | 115-320 | 160 | 245 | 50.3 | 3910×2894×3809 |
| PYD1750 | Φ1750 | 100 | 85 | 5-13 | 75-230 | 160 | 245 | 50.2 | 3910×2894×3809 |
| PYB2200 | Φ2200 | 350 | 300 | 30-60 | 590-1000 | 280/260 | 220 | 80 | 4622×3302×4470 |
| PYZ2200 | Φ2200 | 275 | 230 | 10-30 | 200-580 | 280/260 | 220 | 80 | 4622×3302×4470 |
| PYD2200 | Φ2200 | 130 | 100 | 5-15 | 120-340 | 280/260 | 220 | 81.4 | 4622×3302×4470 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
