Product Details:
Payment & Shipping Terms:
|
| Product Name: | Jaw Crusher | Maximum Feed Size: | 1200 Mm |
|---|---|---|---|
| Feed Size: | 150-1500 Mm | Type: | Stone Crusher Machine |
| Capacity: | 1-1000 T/h | Power: | 5.5-55 Kw |
| Weight: | 0.9-122 T | Uasge: | Building Materials, Chemical |
| High Light: | stone crushing equipment,stone crusher plant |
||

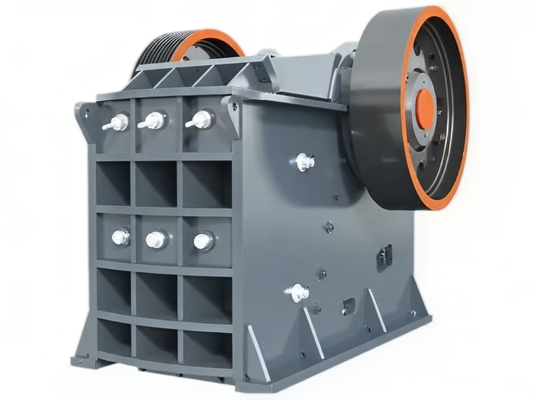

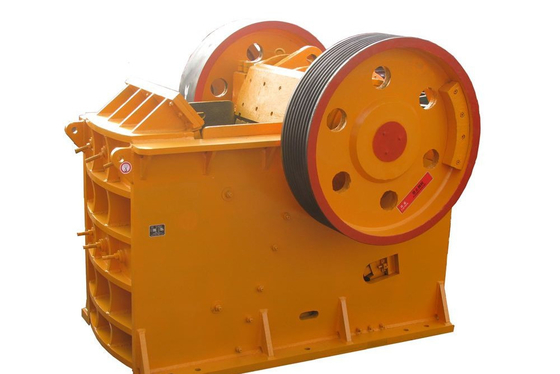

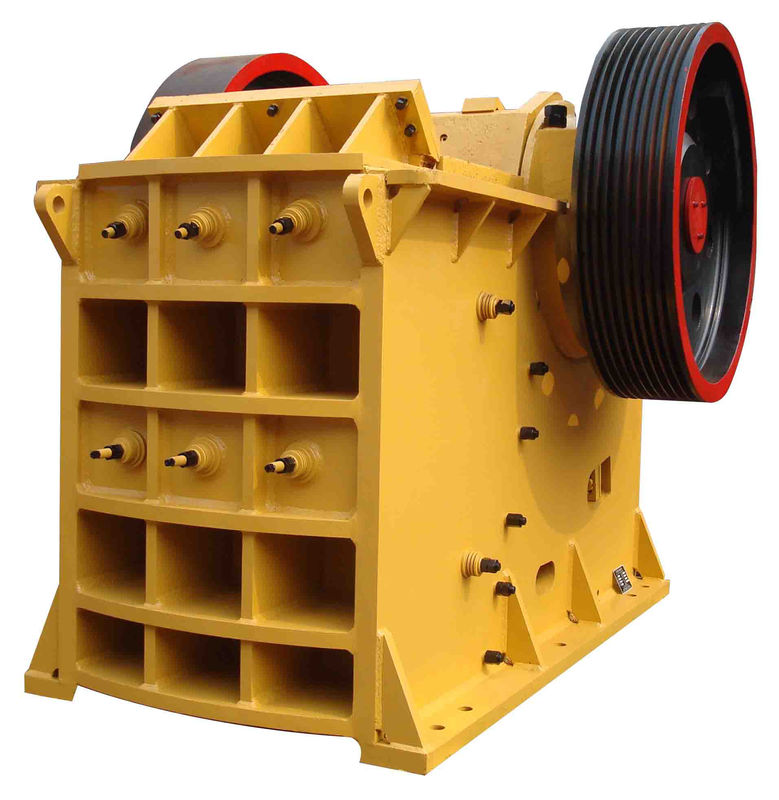

Stone Crusher Machine Jaw Crusher
Ⅰ. Product introduction of jaw crusher(stone crusher machine)
The jaw crusher series products are widely used in various industries such as mining, smelting, construction, highway, railway, water conservancy and chemical industry. It has the characteristics of large crushing ratio, uniform product grains, reasonable structure, reliable work, convenient maintenance, economical operating costs, etc.
Ⅱ. Features of jaw crusher(stone crusher machine)
(1) The jaw crusher has a simple structure and reliable operation.
(2) The jaw crusher is easy to maintain and economical to operate.
Ⅲ. Scope of application of jaw crusher(stone crusher machine)
The jaw crusher is mainly used for medium-sized crushing of various ores and bulk materials. Jaw crushers are widely used in mining, smelting, building materials, roads, railways, water conservancy and chemical industries. The maximum compressive strength of the crushed material is 320Mpa.
Ⅳ. Working principle of jaw crusher(stone crusher machine)
(1) This machine is mainly composed of frame, movable jaw, eccentric shaft, jaw plate, toggle plate and other parts. The motor rotates the eccentric shaft through the V-belt, so that the movable jaw moves according to the adjusted track, so as to separate the crushing chamber. The material inside is broken.
(2) The frame is a single integral cast steel structure. The front wall of the frame is equipped with fixed jaws fastened with wedge-shaped bolts, and edge guards are installed on the left and right side walls of the crushing chamber to prevent the wear of the frame side walls. .
(3) The movable jaw is a formed steel casting with a movable jaw plate on the front. The upper part is suspended on the frame by the eccentric shaft and the roller bearing, and the lower part is supported on the bracket and is in rolling contact with the bracket. Both ends of the eccentric shaft are equipped with flywheels and pulleys.
| Model | Feed Size (mm) |
Maximum Feed Size (mm) |
Discharge Port Adjustment Range (mm) |
Capacity (t/h) |
Eccentric Shaft Speed (r/min) |
Power (kw) |
Weight (t) |
Dimensions (mm) |
| PE-150×250 | 150×250 | 130 | 10-40 | 1-5 | 300 | 5.5 | 0.9 | 875×756×850 |
| PE-250×400 | 250×400 | 210 | 20-80 | 5-21 | 300 | 15 | 2.6 | 1450×1315×1296 |
| PE-400×600 | 400×600 | 350 | 40-100 | 16-65 | 275 | 30/37 | 6.5 | 1565×1732×1586 |
| PE-500×750 | 500×750 | 425 | 50-100 | 45-100 | 275 | 55 | 10.1 | 1890×1916×1870 |
| PE-600×900 | 600×900 | 500 | 65-160 | 90-180 | 250 | 55/57 | 15.5 | 2305×1840×2260 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 110 | 28 | 2450×2472×2840 |
| PE-800×1060 | 800×1060 | 650 | 100-200 | 140-350 | 250 | 110 | 28.5 | 2450×2556×2800 |
| PE-870×1060 | 870×1060 | 670 | 200-260 | 140-380 | 250 | 110 | 30.5 | 2660×2556×2800 |
| PE-900×1200 | 900×1200 | 750 | 100-200 | 180-360 | 250 | 132 | 50 | 3335×3182×3025 |
| PE-1000×1200 | 1000×1200 | 850 | 192-260 | 200-420 | 250 | 132 | 51 | 3435×3182×3025 |
| PEV1200×1300 | 1200×1300 | 1000 | 180-330 | 400-800 | 220 | 200 | 62 | 4538×2984×3959 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 220 | 100.9 | 4200×3732×3025 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 450-1000 | 180 | 280 | 122 | 5100×4700×4300 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30/37 | 6.5 | 1530×1992×1380 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 330 | 37 | 7.7 | 1900×2192×1430 |
| PEX-300×1300 | 300×1300 | 250 | 25-90 | 20-90 | 330 | 55 | 11 | 1900×2192×1430 |
