Product Details:
Payment & Shipping Terms:
|
| Product Name: | Roll Crusher | Feed Size: | 300-950 Mm |
|---|---|---|---|
| Condition: | New | Type: | Stone Crusher Machine |
| Application: | Stones And Bulk Materials | Power: | 55-260 Kw |
| Warranty: | 12 Months | Uasge: | Building Materials, Chemical |
| High Light: | stone crushing equipment,stone crusher plant |
||

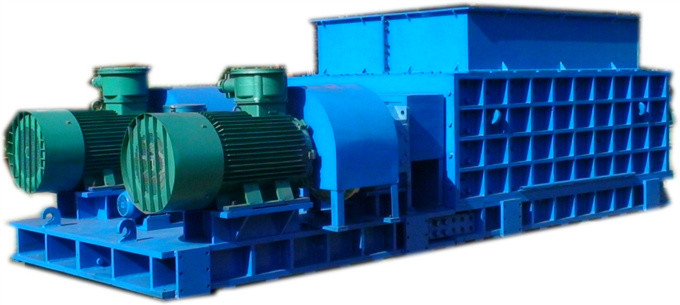

Stone Crusher Machine Roller Crusher
Ⅰ. Basic introduction of roller crusher(stone crusher machine)
The roller crusher (counter roll crusher|counter roll crusher|double roll crusher) is suitable for crushing medium hardness materials, such as limestone, slag, Medium and fine crushing of coke, coal and other materials. This series of roller crushers are mainly composed of rollers, roller support bearings, pressing and adjusting devices, and driving devices. Roll crusher is divided into: double-roll crusher, four-roll crusher, toothed roller crusher.
Ⅱ. Application scenarios of roller crusher(stone crusher machine)
PG double-toothed roller crusher is mainly used for crushing large pieces of raw coal in coal mines, and can also be used in other industries (such as metallurgy, building materials, electric power) to crush various brittle materials with compressive strength less than 200Mpa. Main Features The tooth plate of the machine is made of alloy material with high wear resistance, which greatly increases the service life of the crusher. The main shaft of this machine adopts advanced quenching technology, which improves the strength, rigidity and wear resistance of the main shaft.
Stone crusher machine PCQ double-toothed roller technical parameters
| Model | Roller Diameter(mm) | Roller Lenght(mm) | Feed Size (mm) |
Discharge Size(mm) | Capacity (t/h) |
Power (kw) |
Weight (t) |
Dimensions(mm) | ||
| L | W | H | ||||||||
| 2PCQ-0608 | 600 | 800 | ≤300 | <50-150 | 120-180 | 55 | 11.7 | 3450 | 2280 | 1280 |
| 2PCQ-0610 | 600 | 1000 | ≤300 | <50-150 | 150-210 | 75 | 12.6 | 3800 | 2280 | 1280 |
| 2PCQ-0612 | 600 | 1200 | ≤300 | <50-150 | 180-240 | 90 | 13.7 | 4200 | 2350 | 1300 |
| 2PCQ-0614 | 600 | 1400 | ≤300 | <50-150 | 210-270 | 90 | 14.9 | 4550 | 2350 | 1300 |
| 2PCQ-0616 | 600 | 1600 | ≤300 | <50-150 | 240-320 | 110 | 16.2 | 4900 | 2400 | 1350 |
| 2PCQ-0620 | 600 | 2000 | ≤300 | <50-150 | 280-340 | 2X160 | 31.4 | 6186 | 3000 | 1740 |
| 2PCQ-0810 | 800 | 1000 | 400-500 | <100-200 | 200-210 | 90 | 18 | 4200 | 2500 | 1480 |
| 2PCQ-0812 | 800 | 1200 | 450-550 | <100-200 | 240-310 | 110 | 19.6 | 4500 | 2550 | 1480 |
| 2PCQ-0814 | 800 | 1400 | 500-600 | <100-200 | 280-350 | 132 | 21.5 | 4850 | 2600 | 1550 |
| 2PCQ-0816 | 800 | 1600 | 550-650 | <100-200 | 320-390 | 150 | 23.7 | 5200 | 2700 | 1550 |
| 2PCQ-0818 | 800 | 1800 | 600-700 | <100-200 | 360-420 | 180 | 26 | 5600 | 2800 | 1600 |
| 2PCQ-1012 | 1000 | 1200 | 500-600 | <150-250 | 330-420 | 150 | 27 | 5020 | 2800 | 1700 |
| 2PCQ-1014 | 1000 | 1400 | 550-650 | <150-250 | 380-460 | 180 | 29 | 5320 | 2900 | 1700 |
| 2PCQ-1016 | 1000 | 1600 | 650-750 | <150-250 | 440-520 | 210 | 31.5 | 5660 | 3000 | 1750 |
| 2PCQ-1018 | 1000 | 1800 | 750-850 | <150-250 | 490-570 | 240 | 35 | 6020 | 3100 | 1750 |
| 2PCQ-1020 | 1000 | 2000 | 850-950 | <150-250 | 560-700 | 260 | 40 | 6400 | 3200 | 1800 |
Stone crusher machine photo explanation
