Product Details:
Payment & Shipping Terms:
|
| Product Name: | Vertical Mill Accessories | Roller Department: | Roller Plate, Roller, Pressure Plate, Sleeve |
|---|---|---|---|
| Condition: | New | Application: | Cement Plant, Mill Station, Steel Plant, Etc |
| Frame Body: | Tensioning Rod Frame | Accessories: | Customizable |
| Classification: | Castings And Forgings | Warranty: | 12 Months |
| High Light: | Cement Plant Castings And Forgings,Casting Vertical Mill Accessories,Cement Plant Vertical Mill Accessories |
||
Castings And Forgings Of Vertical Mill Accessories Suitable For Cement Plant
1.Working principle of vertical mill
The material feeding tube falls into the center of the mill plate, the mill plate rotating at constant speed is evenly dispersed and paved with the help of centrifugal force, so that the material can form a certain thickness of the bed, and the material is rolled by multiple rollers on the mill plate at the same time, and is crushed. Under the continuous drive of centrifugal force, the material keeps moving to the outer edge of the mill. The material leaving the mill meets the hot gas entering the mill through the air ring and then rises, and enters the separator through the shell in the middle of the mill. In this process, the material and the hot gas have a full heat exchange, and the water is quickly evaporated. The separator controls the fineness of the finished product at the exit of the roller mill. Particles larger than the specified size are separated and fall back to the grinding plate. Materials that meet the fineness requirements enter the finished product through the selection machine.
2.Castings and forgings of table of vertical mill accessories
| Vertical mill machine | The name of the accessories | Note |
| Roller department | Roller plate, roller, pressure plate, sleeve, sealing ring, roller bearing cover, wear-resisting, distance ring, roller stents, roller plate, O ring, the axis of rotation sealing, roller bearing, stud, magnetic plug, connection board, hinge bearings, roller, grinding roller, pointer, bolt (pin) framework, heat resistance, pressure plate | |
| The ministry of mill | Grinding plate lining, air guide cone, scraper, nozzle ring, nozzle ring, cover plate, grinding plate seat, grinding plate cover, labyrinth seal | |
| Frame body | Tensioning rod frame, sealing device, lining plate, wear plate | |
| The ministry of separator | Fixed blade, rotary blade, drive shaft, housing, coupling, thrust bearing, aligning bearing, skeleton oil seal, O-ring seal, separator spindle, motor, reducer | |
| Tensioning device | Pin shaft, thickness gauge, ball socket, shaft sleeve, tensioning rod, hinged seat, steel ball, support, hydraulic cylinder assembly, accumulator | |
| The seal line | Centripetal joint bearing, elbow, sealed air pipe, flange, bushing | |
| Maintenance and repair equipment | Roller support, hydraulic station, maintenance tools, one-way throttle valve | |
| Three gate | Roller support, hydraulic station, maintenance tools, one-way throttle valve |

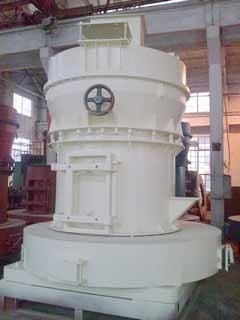

Castings And Forgings Of Vertical Mill Accessories Suitable For Cement Plant

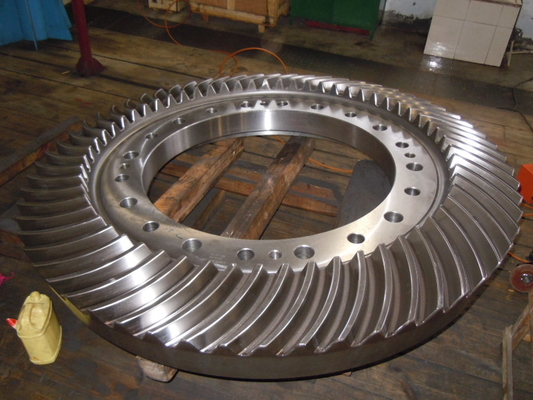

Castings And Forgings Of Vertical Mill Accessories Suitable For Cement Plant
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
