Product Details:
Payment & Shipping Terms:
|
| Product Name: | Vertical Centrifuge | Condition: | New |
|---|---|---|---|
| Type: | Ore Dressing Equipment | Application: | Stones And Bulk Materials |
| Warranty: | 12 Months | Uasge: | Building Materials, Chemical |
| Application Industry: | Cement Plant, Steel Mill, Chemical Plant & Incinerator | Port: | QingDao,TianJian,ShangHai |
| Feed Moisture: | ≤30 % | Capacity: | 30-200 T/h |
| High Light: | Building Materials Vertical Centrifuge,Solid Liquid Vertical Centrifuge,Centrifuge Solid Liquid Separation Equipment |
||
Vertical Centrifuge Ore Dressing Equipment Solid-Liquid Separation Equipment
1. Basic introduction of vertical centrifuge
Vertical centrifuge is an efficient solid-liquid separation equipment.
The vertical centrifuge consists of a feeding device, a separation system, a filter bin, a discharging bin, a transmission system, a washing device and an electric control device.
The whole system of the vertical centrifuge cleverly applies the dual action of centrifugal force and gravity to realize the continuous work of the equipment and achieve high work efficiency. The slurry enters the centrifuge from the feeding port, and is subjected to centrifugal force in the separation system, and the solid is retained through the filter screen, and the liquid enters the filter chamber through the screen and is discharged from the mother liquor port. The solid moves downward under the component force of gravity and centrifugal force, and enters the lower section through the discharge bin. During the movement, the washing system is pumped into the washing liquid to wash the solids. All power is driven by an electric motor. During the separation process, the residence time of solids in the separation system can be controlled by adjusting the feed rate and the relative positions of each part of the separation system to achieve the specified solid water content requirements.
2. Ore Dressing Equipment technical parameters
| Parameters/Models | LL-700 | LL3-9 | LL-1000 | LL-1200 |
| Feed moisture(%) | ≤13 | ≤30 | ≤30 | ≤30 |
| Feed size(mm) | ≤13 | ≤25 | ≤25 | ≤25 |
| External moisture of the product(%) | 5～8 | 5～8 | 5～8 | 5～8 |
| Capacity(t／h) | 30～50 | 50～80 | 100～150 | 130～200 |
| Screen big end diameter(mm) | 720 | 930 | 1050 | 1200 |
| Screen gap(mm) | 0.25,0.5 | 0.25,0.5 | 0.25,0.5 | 0.25,0.5 |
| Screen rpm(r／min) | 572 | 562 | 559 | 449 |
| Rotor rpm(r／min) | 562 | 554 | 550.8 | 491 |
| Main motor power(kw) | 18.5 | 45 | 55 | 75 |
| Main motor power of oil pump(kw) | 0.75 | 0.75 | 0.75 | 0.75 |
| Dimensions (L×W×H)(mm) | 2175×1690×1955 | 2785×2045×2298 | 3001×2250×2478 | 3160×2460×2680 |
| Weight(t) | 6.7 | 6.7 | 6.72 | 8.8 |
Note: The external water content of the product is related to the properties of the material, particle size composition, processing capacity, etc., but mainly depends on the content of coal slime in the feed. The portion is generally 5~8%.
3. Working principle of vertical centrifuge
The sieve blue rotates at a high speed. After the material enters the centrifuge through the inlet, under the action of the centrifuge, the external water is removed and discharged through the sieve slit. Two sets of gears are used to generate a differential speed between the screen blue and the scraper, and the material attached to the screen blue is scraped off.

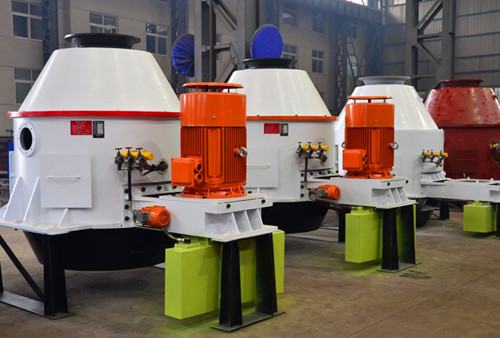

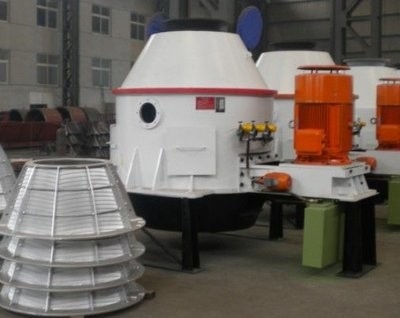

4. Ore Dressing Equipment photo explanation
