Product Details:
Payment & Shipping Terms:
|
| Product Name: | Thickener | Condition: | New |
|---|---|---|---|
| Type: | Ore Dressing Equipment | Application: | Stones And Bulk Materials |
| Warranty: | 12 Months | Uasge: | Building Materials, Chemical |
| Application Industry: | Cement Plant, Steel Mill, Chemical Plant & Incinerator | Port: | QingDao,TianJian,ShangHai |
| Capacity: | 5.6-3030 T/d | Weight: | 1.24-200 T |
| High Light: | Thickener Ore Dressing Equipment,Thickener Dewatering Device,Ore Dressing Dewatering Device |
||
Thickener Ore Dressing Equipment A New Type Of Dewatering Device
1. Basic introduction of thickener
The thickener is suitable for dewatering of concentrate and tailings in concentrators, and is widely used in metallurgy, chemical, coal, non-metallic mineral processing, environmental protection and other industries. The high-efficiency thickener is actually not a simple settling device, but a new type of dewatering device that combines the filtering characteristics of the mud layer. The high-efficiency thickener produced by our company is suitable for the dehydration of concentrate and tailings in the concentrator, increasing the 20-30% pulp to about 40-70%, and is widely used in metallurgy, chemical industry, coal, non-metallic mineral processing, environmental protection, etc. industry.
The high-efficiency thickener is actually not a simple settling device, but a new type of dewatering device that combines the filtering characteristics of the mud layer.
2. Ore Dressing Equipment technical parameters
| Model | Concentration pool(m) | Precipitation area(m2) | Raking part | Electric motor | Capacity(t/d) | Weight(t) | |||||
| Model | Specification | Diameter | Depth | Pool bottom | Way | height(m) | time per revolution(min/r) | transmission | hoist | ||
| NZS-1 | Φ1.8m | 1.8 | 1.8 | 2.54 | Manual | 0.16 | 2 | Y90L-6 1.1KW | ---- | 5.6 | 1.235 |
| NZS-3 | Φ3.6m | 3.6 | 1.8 | 10.2 | Manual | 0.35 | 2.5 | Y90L-6 1.1KW | ---- | 22.4 | 3.064 |
| NZS-6 | Φ6m | 6 | 3 | 28.3 | Manual | 0.2 | 3.7 | Y90S-4 1.1KW | ---- | 62 | 8.751 |
| NZSF-6 | Φ6m | 6 | 3 | 28.3 | Manual | 3.7 | Y90S-4 1.1KW | ---- | 62 | 3.649 | |
| NZ-9 | Φ9m | 9 | 3 | 63.6 | Automatic | 0.25 | 4.34 | Y132S-6 3KW | XWD0.8-3 0.8KW | 140 | 6.134 |
| NZS-9 | Φ9m | 9 | 3 | 63.6 | Manual | 0.25 | 4.34 | Y132S-6 3KW | ---- | 140 | 5.146 |
| NZS-12 | Φ12m | 12 | 3.5 | 113 | Manual | 0.25 | 5.28 | Y132S-6 3KW | ---- | 250 | 8.51 |
| NZ-15 | Φ15m | 15 | 4.4 | 176 | Automatic | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 350 | 21.757 |
| NZ-20 | Φ20m | 20 | 4.4 | 314 | Automatic | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 960 | 24.504 |
| NZ-30 | Φ30m | 30 | 7.165 | 707 | ---- | 0.61 | 13.7 | Y100L1-4 2.2×2KW | YCJ132-S 1.5KW | ---- | 31.8 |
| NZS-45 | Φ45m | 45 | 4.636 | 1590 | Manual | ---- | 20 | JTC672A-44 5.2KW | YCJ160-S 2.2KW |
515 |
47.81 |
| NT-15 | Φ15m | 15 | 3.5 | 177 | ---- | ---- | 8.4 | Y132M2-6 5.5KW |
---- |
390 | 11 |
| NQ-18 | Φ18m | 18 | 3.5 | 255 | ---- | ---- | 10 | Y132M2-6 5.5KW | ---- | 560 | 10 |
| NQ-24 | Φ24m | 24 | 3.4 | 452 | ---- | ---- | 12.7 | Y160M-6 7.5KW | ---- | 1000 | 23.3 |
| NG-30 | Φ30m | 30 | 3.6 | 707 | ---- | ---- | 16 | Y160M-6 7.5KW | ---- | 1570 | 26.42 |
| NJ-38 | Φ38m | 38 | 4.9 | 1134 | ---- | ---- | 10-25 | JZT252-4 11KW | Y160M-6 7.5KW | 1600 | 55.26 |
| NT-45 | Φ45m | 45 | 5.05 | 1590 | Automatic | ---- | 19.3 | Y160L-6 11KW |
---- |
2400 | 58.64 |
| NTJ-53 | Φ53m | 53 | 5.07 | 2202 | ---- | ---- | 23.18 | Y180L-6-15kw | ---- | 6250 | 79.80 |
| NT-100 | Φ100m | 100 | 5.65 | 7846 |
---- |
---- |
43 | Y180L-6 15KW |
---- |
3030 | 199.648 |
3. Features of the concentrator
(1) Add flocculant to increase the particle size of settled solid particles, thereby speeding up the settling speed;
(2) Install inclined plates to shorten the settlement distance of ore particles and increase the settlement area;
(3) to play the role of flocculation, filtration, compression and increase of treatment capacity of the thick phase layer of mud deposition;
(4) Equipped with complete automatic control facilities.
4. Application range of thickener
Thickeners (high-efficiency thickeners) are widely used in the treatment of sludge, wastewater and waste residues in metallurgy, mining, coal, chemical industry, building materials, environmental protection and other departments.
5. Classification of thickeners
Center drive thickener, peripheral drive thickener, high-efficiency thickener, sludge thickener, intermittent thickener, peripheral drive thickener, segmented rake thickener, central rake thickener. Vertical flow and radial flow Continuous concentrator.

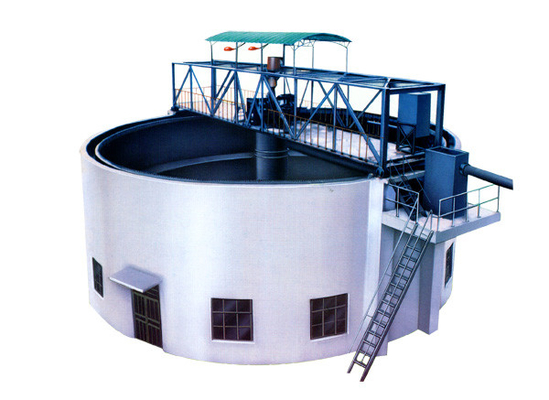

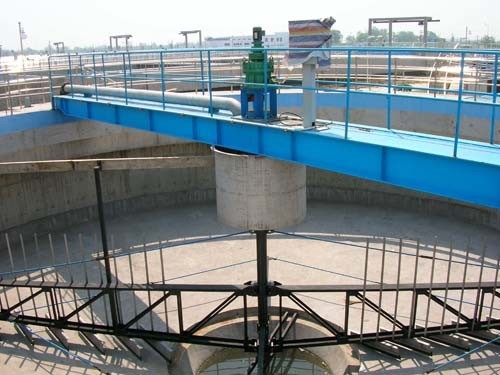

6. Ore Dressing Equipment photo explanation
