Product Details:
Payment & Shipping Terms:
|
| Product Name: | Large Particle Jig | Condition: | New |
|---|---|---|---|
| Type: | Ore Dressing Equipment | Application: | Stones And Bulk Materials |
| Warranty: | 12 Months | Uasge: | Building Materials, Chemical |
| Application Industry: | Cement Plant, Steel Mill, Chemical Plant & Incinerator | Port: | QingDao,TianJian,ShangHai |
| Stroke: | 0-26 Mm | Screen Area: | 0.015-2.7 M² |
| Weight: | 130-2000 Kg | Power: | 0.55-1.5 Kw |
| High Light: | Large Particle Diaphragm Jig,12mm Particle Diaphragm Jig,12mm Diaphragm Jigging Separator |
||
Large Particle Jig Ore Dressing Equipment Maximum Feed Size 12mm
1. Basic introduction of jig
Double bucket diaphragm jig is divided into two types: left type machine and right type jig surface. This jig is a fixed sieve. It is suitable for the separation of metal ores, such as tungsten- and gold-containing placer, selective tin ore, etc. It can be used for both fine-grained and coarse-grained materials. In the individual case of sorting placer, the maximum particle size is 12mm.
2. Ore Dressing Equipment technical parameters
| Model |
Screen area (m²) |
Feeding particle size(mm) |
Capacity (t/h) |
stroke (mm) |
Flush (times/min) |
Add water (ton hour) |
Water pressure (kg/cm²) |
Main motor |
Weight (kg) |
|
| Model | Power(KW) | |||||||||
| 100×150Diaphragm Jig | 0.015 | -3 | 0.018-0.6 | - | 420 | - | 1-1.5 | Y80L-4 | 0.55 | 130 |
| 300×450Double Chamber Diaphragm Jig | 0.27 | -12 | 3-6 | 0-26 | 322 | 2-4 | 1-1.5 | Y90S-4 | 1.1 | 745 |
| 1000×1000Down-moving cone jig | 2 | 1-5 | 10-25 | 0-26 | 200-350 | 60-80 | 0.6-2 | Y100L-6 | 1.5 | 1700 |
| 370×360Down-moving cone-diaphragm jig | 0.274 | 6 | 1-3 | 5-25 | 200-250 | 2-5 | - | Y90S-4 | 1.1 | 240 |
| Industrial Leather Trapezoidal Side-moving Diaphragm Jig | 2.7 | -3 | 12.5-37.5 | 13-21 | 170-230 | 60-90 | 2 | Y90S-4 | 1.1 | 2000 |
| 670×920Jig | 1.44 | 4-8 | 7-10 | 18-24 | 240-300 | |||||
3. Structure and Instructions for Use
The structure of LTS300×450 double-bucket diaphragm jig is composed of main parts such as body, transmission device, water separator, diaphragm and stopcock. It is divided into two parts, the jigging area and the diaphragm area. The jigging process is carried out by the agitation of the medium (water) caused by the up and down reciprocating motion of the rubber diaphragm. The motor drives the large pulley to rotate through the V-belt, so that the connecting rod on the eccentric shaft moves up and down, and the rocker arm connected with this connecting rod also moves up and down. There are two other connecting rods on the rocker arm that connect the rubber diaphragm, so that the diaphragm can reciprocate up and down. Exercise, jigging.
According to the particle size of the ore to be processed, the stroke times of the connecting rod can be changed and different strokes can be selected in order to obtain the best jigging effect. The way to change the stroke is to replace the small pulley. There are two strokes: 322 times/min; 420 times/min. The stroke selection method is to loosen the set screw and nut, pull out the positioning pin, and rotate the relative position between the eccentric adjustment sleeve and the eccentric shaft. There are 11 different strokes (0-25.3mm).
Since a sieve is added above the working sieve, the jig machine can be used to handle materials with uneven particle size. (Note: this screen may not be supplied according to the order requirements) After the selected raw ore is sent to the jigging chamber, the ore particles are stratified in the medium according to their specific gravity due to the agitation of the diaphragm; the fine and heavy ore particles pass through the gap between the artificial bed particles And the sieve hole, the coarse and light ore particles (minerals) in the upper layer are swept to the discharge port at the end of the sieve by the medium flow, because the rear jig chamber is lower than the front jig chamber. 50mm, so the light ore particles overflow through the tail plate of the front chamber and enter the rear chamber, and are jigged again. The height of the tail plate can be adjusted as required to control the amount of ore discharged. The concentrate in the storage bucket is regularly discharged by the discharge pipe.
Jig beneficiation is a deep groove sorting operation. It uses water as a beneficiation medium, and uses the difference in specific gravity of selected minerals to gangue for sorting. Jig machines are mostly diaphragm type, and the stroke and number of strokes are based on the specific gravity of the selected minerals. , can be flexibly adjusted, widely used in gravity beneficiation of tungsten, tin, placer gold, hematite, limonite, manganese, titanium, antimony, lead, tantalum, niobium and other metals.
4. Scope of application of jig
There are many models of jigs. AM30 Jig is a large particle jig. Widely used in gravity beneficiation of tungsten, tin, placer gold, hematite, limonite, manganese, titanium, antimony, lead, tantalum, niobium and other metals. According to user requirements, we can produce LTP34/2, LTA55/2, LTA1010/2, LTC-69/2, 2LTC79/4, 2LTC-912/4 and other models of jigs.
6109 Trapezoidal Jig The trapezoidal jig has a processing capacity of 20-30T per hour.
The sawtooth wave JT1070-2 jig has the advantages of saving water and energy and improving the recovery of fine particles and minerals. It is widely used in the smelting of tungsten, tin, gold, iron, manganese, titanium, adze, chromium, sulfur and various alloys. Slag extraction of metals, etc.
LTA-1010/2 jig machine is mainly used for processing tungsten, tin, antimony and other ores in beneficiation.
LTP34/2 jig machine is widely used in jig beneficiation of tungsten, tin, gold, iron, lead, zinc, manganese and other heavy metals.

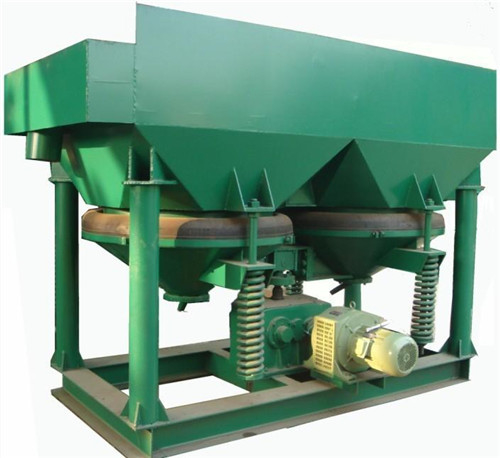

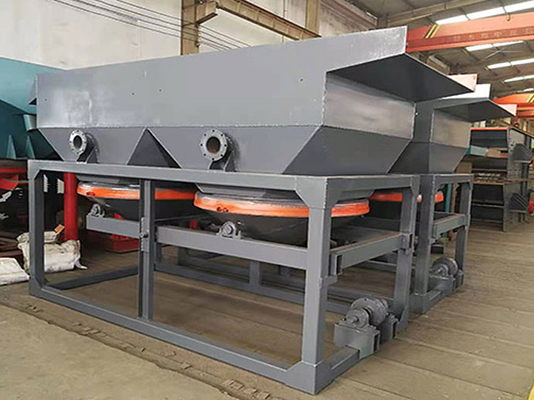

5. Ore Dressing Equipment photo explanation
