Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Product: | Mill Liner Plate |
|---|---|---|---|
| SPEC: | Customizable | Silicon: | 0.30-0.45% |
| Carbon: | 0.24% ( 0.28%) | Manganese: | 0.90% |
| Type: | Castings And Forgings | Application: | Self Mill Lining Board, Raw Material Ball Mill Lining Board |
| High Light: | Casting Ball Mill Cylinder Liner,Cast Steel Ball Mill Cylinder Liner,Large Ball Mill Cylinder Liner |
||

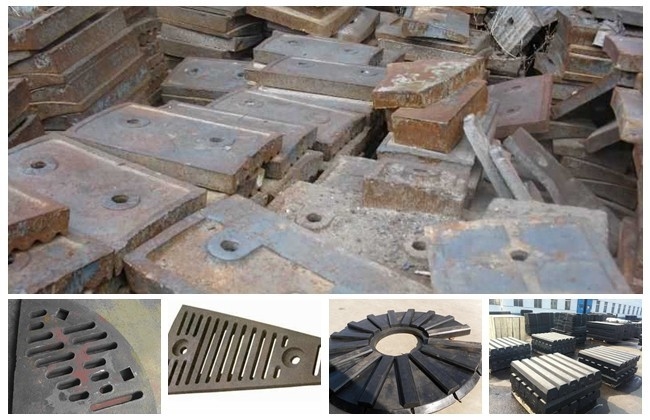

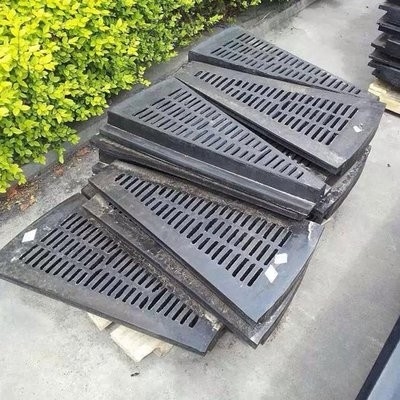

Ball Mill Cylinder Liner Castings And Forgings Large Cast Steel Spare Part Product
1. Ball mill liner castings and forgings product description
Zhongshi Heavy Machinery company can professionally produce all kinds of ball mill lining board, including CITIC Heavy Industry ball mill lining board, Luo Mine ball mill lining board, self mill lining board, raw material ball mill lining board, cement ball mill lining board, rod mill lining board. And can be customized according to the needs of other brands ball mill lining board. Its strong casting and forging, heat treatment and machine capacity, strict quality and process control methods, perfect testing and experimental means, so that its production and development of various ball mill lining plate enjoys a high reputation in China, and exported to overseas.
2. Performance description of ball mill liner castings and forgings
Using internationally recognized advanced mill liner simulation special software, optimize the structure and size of the liner.
The tube and end cover lining plate are made of wear-resisting chromium-molybdenum alloy steel and convex lining plate to improve service life and grinding effect.
The lining plate is secured with flat head bolts, complete with self-locking nut and sealing washer. The joint bolts have special sealing measures to prevent leakage.
The number of bolts to hold the lining plate is 5%.
Wear-resistant rubber filling strips are used at the joint of the end cover liner and barrel, which are fixed by the adjacent liner.
The rubber liner between the cylinder and the liner is 6mm thick to reduce noise.
The lining plate is installed on the inner wall of the ball mill barrel to protect the inner wall from wear and control the movement of the steel ball in the barrel. For this purpose, the lining plate must be wear-resistant, the surface geometry is suitable, and it is as easy as possible to manufacture, assemble and disassemble and maintain. Ball mill lining material can choose hard steel, high manganese steel, chromium steel, alloy cast steel, rubber and magnetic lining plate, etc.
3. Ball mill liner castings and forgings product parameters
| Chemical composition | Maximum percent allowable |
| Carbon | 0.24% ( 0.28%) (0.28% for head and trunnion) |
| Manganese | 0.90% |
| Silicon | 0.30-0.45% |
| Sulfur | 0.025% |
| Phosphorus | 0.025% |
| Nickel | 0.25% |
| Chromium | 0.20% |
| Molybdenum | 0.15% |
| Cooper | 0.20% |
| Vanadium | 0.03% |
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
