Disc Filter Fan Plate Castings And Forgings For Washing Screening Equipment
1. Product introduction of fan plate castings and forgings

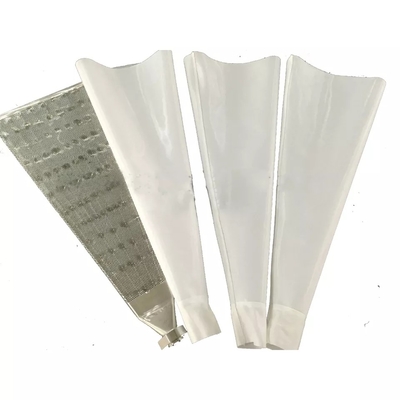

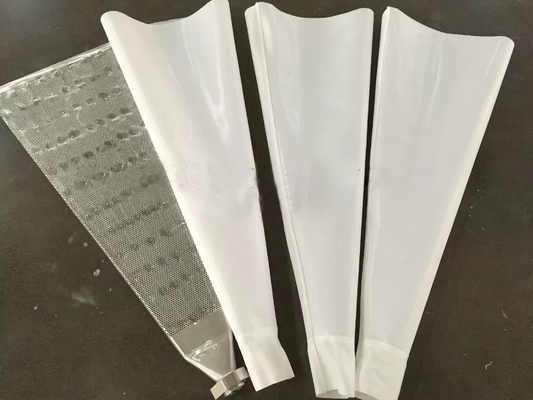

Fan-shaped plate, disc filter fan-shaped plate, filter plate sector, PG/GPY disc filter sector plate - disc filter fan-shaped plate, a new engineering plastics sector plate light weight, high strength, good hydrophobic, opening rate is high, the better effect of dewatering and cake, filter cake moisture content is low, service life is long, corrosion resistance, convenient decorating.
2. Working principle of disc filter
Disc filter mainly by vacuum pump under the action of forming force difference, the formation of particles on the filter cloth filter cake, and through the filter cake and filter cloth exclude liquid phase, solid-liquid separation, used for 0-0.5mm flotation cleaned coal and tail coal and other fine granular material dehydration, can also be used in metallurgy, chemical, petrochemical, sewage treatment solid-liquid separation.
3. Table of related accessories of disc filter castings and forgings
(1) Cylinder body
Inner filter cylinder, outer filter cylinder, folding cylinder
(2) Transmission department
Roller, worm gear, worm gear, reducer,
(3) Filtration section
Filter plate, filter cloth, vacuum head, gas-water separator, wrong air disc
4. Product parameters of fan-shaped plate for disc vacuum filter castings and forgings
(1) Product parameters of fan plate for PG series disc vacuum filter castings and forgings
| Model | PG18-4 | PG27-6 | PG39-4 | PG58-6 | PG78-8 | PG97-10 | PG116-12 |
| Filter area(㎡) | 18 | 27 | 39 | 58 | 78 | 97 | 116 |
|
Filter plate number (PCS) |
4 | 6 | 4 | 6 | 8 | 10 | 12 |
| Filter diameter(mm) | 1800 | 1800 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Number of filter fans in each disk(PCS) | 10 | ||||||
(2) Technical parameters of new engineering plastic sector plate:
| Technical parameters of new engineering plastic sector plate: | ||||||
| Performance of the project |
|
Test method | Test data |
|
||
| Physical Property | Melt flow rate | 200℃ 5kg | ASTM D-1238 | 4.5 | g/10min | |
| Melt flow rate | 200℃ 21.6kg | ASTM D-1238 | 50 | g/10min | ||
| The proportion of | --- | ASTM D-792 | 1.04 | 23/23℃ | ||
| Model shrinkage | --- | ASTM D-955 | 0.4~0.7 | % | ||
| Mechanical property | The tensile strength | 23℃ | ASTM D-638 | 480 | kg/cm2 | |
| The bending strength | 23℃ | ASTM D-790 | 650 | kg/cm2 | ||
| Bending modulus | 23℃ | ASTM D-790 | 24000 | kg/cm2 | ||
| Rockwell hardness | --- | ASTM D-785 | 108 | R | ||
| elongation | --- | ASTM D-638 | 30 | |||
| Notch impact strength | 23℃/8in(3.2mm) | ASTM D-256 | 26 | % | ||
| Notch impact strength | 23℃/4in(6.4mm) | ASTM D-256 | 23 | kg.cm/cm | ||
| Thermal property | Distortion temperature | unannealed | 6.4mm 186kg/cm2 | ASTM D-648 | 85(185) | kg.cm/cm |
| anneal | 95(203) | ℃('f) | ||||
| vicat softening point | --- | ASTM D-1525 | 95(203) | ℃('f) | ||
