| Condition: | New | Product Name: | PG/GPY Disc Filter |
|---|---|---|---|
| SPEC: | Customizable | Type: | PG/GPY Disc Filter Fan Plate |
| Filter Plate Number: | 4-12 Pcs | QTY Of Filter Fans In Each Disk: | 10/12 Pcs |
| Filter Area: | 18-200 ㎡ | Classification: | Castings And Forgings |
| Warranty: | 12 Month | ||
| High Light: | fan shaped filter plate disc,castings and forgings fan plate,disc plate castings and forgings |
||

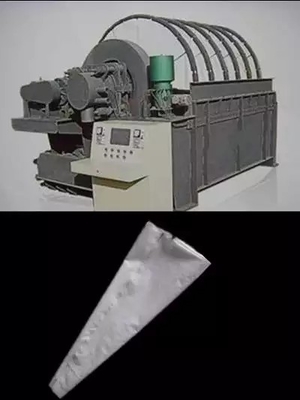

Disc Vacuum Filter Fan Shaped Filter Plate Disc Castings And Forgings
1. Product introduction of fan plate castings and forgings

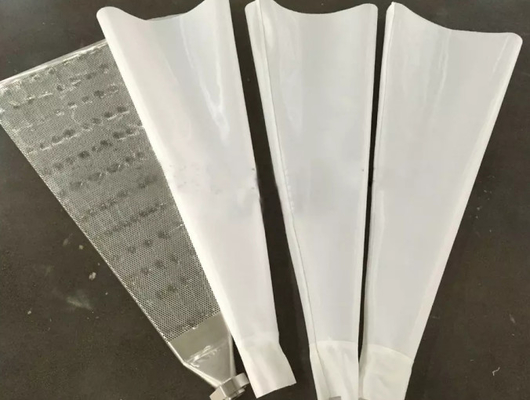

Fan-shaped plate, disc filter fan-shaped plate, filter plate sector, PG/GPY disc filter sector plate - disc filter fan-shaped plate, a new engineering plastics sector plate light weight, high strength, good hydrophobic, opening rate is high, the better effect of dewatering and cake, filter cake moisture content is low, service life is long, corrosion resistance, convenient decorating.
2. Table of related accessories of disc filter castings and forgings
(1) Cylinder body
Inner filter cylinder, outer filter cylinder, folding cylinder
(2) Transmission department
Roller, worm gear, worm gear, reducer,
(3) Filtration section
Filter plate, filter cloth, vacuum head, gas-water separator, wrong air disc
3. Product parameters of fan-shaped plate for disc vacuum filter castings and forgings
(1) Product parameters of fan plate for PG series disc vacuum filter castings and forgings
| Model | PG18-4 | PG27-6 | PG39-4 | PG58-6 | PG78-8 | PG97-10 | PG116-12 |
| Filter area(㎡) | 18 | 27 | 39 | 58 | 78 | 97 | 116 |
|
Filter plate number |
4 | 6 | 4 | 6 | 8 | 10 | 12 |
| Filter diameter(mm) | 1800 | 1800 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Number of filter fans in each disk(PCS) | 10 | ||||||
(2) Product parameters of GPY series disc vacuum filter castings and forgings
| Model | GPY-20 | GPY-30 | GPY-40 | GPY-60 | GPY-80 | GPY-100 | GPY-120 | GPY-140 | GPY-160 | GPY-180 | GPY-200 |
| Filter area(㎡) | 20 | 30 | 40 | 60 | 80 | 100 | 120 | 140 | 164 | 184 | 204 |
|
Filter plate number |
4 | 6 | 4 | 6 | 8 | 10 | 12 | 7 | 8 | 9 | 10 |
| Filter diameter(mm) | 1800 | 2700 | 3840 | ||||||||
| Number of filter fans in each disk(PCS) | 10 | 12 | |||||||||
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
