PG / GPY Series Disc Filter Fan Plate Castings And Forgings For Mining Equipment

Large Image : PG / GPY Series Disc Filter Fan Plate Castings And Forgings For Mining Equipment

Product Details:

Place of Origin:	Henan, China
Brand Name:	ZTIC
Certification:	ISO/CE
Model Number:	Castings And Forgings

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set/Sets
Price:	negotiate
Payment Terms:	L/C, T/T
Supply Ability:	5000 Set/Sets per Year

Contact Now

Detailed Product Description

Condition:	New	Product:	Disc Filter Fan Plate
Model:	PG/GPY Series Disc Filter	Melt Flow Rate:	200℃ 5kg
The Tensile Strength:	23℃	Filter Area(㎡):	18-200 ㎡
Classsification:	Castings And Forgings	Warranty:	12 Month
Highlight:	Forgings Fan Plate , Castings Fan Plate , Mining Equipment Filter Fan Plate

PG / GPY Series Disc Filter Fan Plate Castings And Forgings For Mining Equipment

1. Product introduction of fan plate castings and forgings

Fan-shaped plate, disc filter fan-shaped plate, filter plate sector, PG/GPY disc filter sector plate - disc filter fan-shaped plate, a new engineering plastics sector plate light weight, high strength, good hydrophobic, opening rate is high, the better effect of dewatering and cake, filter cake moisture content is low, service life is long, corrosion resistance, convenient decorating.

2. Working principle of disc filter Castings And Forgings

Disc filter mainly by vacuum pump under the action of forming force difference, the formation of particles on the filter cloth filter cake, and through the filter cake and filter cloth exclude liquid phase, solid-liquid separation, used for 0-0.5mm flotation cleaned coal and tail coal and other fine granular material dehydration, can also be used in metallurgy, chemical, petrochemical, sewage treatment solid-liquid separation.

3. Product parameters of fan-shaped plate for disc vacuum filter castings and forgings

(1) Product parameters of fan plate for PG series disc vacuum filter castings and forgings

Model	PG18-4	PG27-6	PG39-4	PG58-6	PG78-8	PG97-10	PG116-12
Filter area(㎡)	18	27	39	58	78	97	116
Filter plate number (PCS)	4	6	4	6	8	10	12
Filter diameter(mm)	1800	1800	2700	2700	2700	2700	2700
Number of filter fans in each disk(PCS)	10

(2) Product parameters of GPY series disc vacuum filter castings and forgings

Model	GPY-20	GPY-30	GPY-40	GPY-60	GPY-80	GPY-100	GPY-120	GPY-140	GPY-160	GPY-180	GPY-200
Filter area(㎡)	20	30	40	60	80	100	120	140	164	184	204
Filter plate number (PCS)	4	6	4	6	8	10	12	7	8	9	10
Filter diameter(mm)	1800		2700					3840
Number of filter fans in each disk(PCS)	10							12

(3) Technical parameters of new engineering plastic sector plate:

Technical parameters of new engineering plastic sector plate:
Performance of the project			Test condition	Test method	Test data	Data unit
Physical Property	Melt flow rate		200℃ 5kg	ASTM D-1238	4.5	g/10min
	Melt flow rate		200℃ 21.6kg	ASTM D-1238	50	g/10min
	The proportion of		---	ASTM D-792	1.04	23/23℃
	Model shrinkage		---	ASTM D-955	0.4~0.7	%
Mechanical property	The tensile strength		23℃	ASTM D-638	480	kg/cm2
	The bending strength		23℃	ASTM D-790	650	kg/cm2
	Bending modulus		23℃	ASTM D-790	24000	kg/cm2
	Rockwell hardness		---	ASTM D-785	108	R
	elongation		---	ASTM D-638	30
	Notch impact strength		23℃/8in(3.2mm)	ASTM D-256	26	%
	Notch impact strength		23℃/4in(6.4mm)	ASTM D-256	23	kg.cm/cm
Thermal property	Distortion temperature	unannealed	6.4mm 186kg/cm2	ASTM D-648	85(185)	kg.cm/cm
	Distortion temperature	anneal	6.4mm 186kg/cm2	ASTM D-648	95(203)	℃('f)
	vicat softening point		---	ASTM D-1525	95(203)	℃('f)

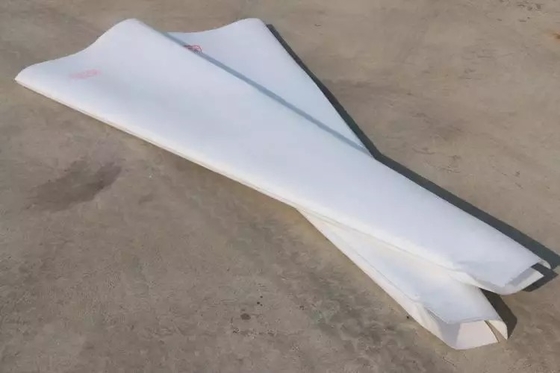

PG / GPY Series Disc Filter Fan Plate Castings And Forgings For Mining Equipment 0

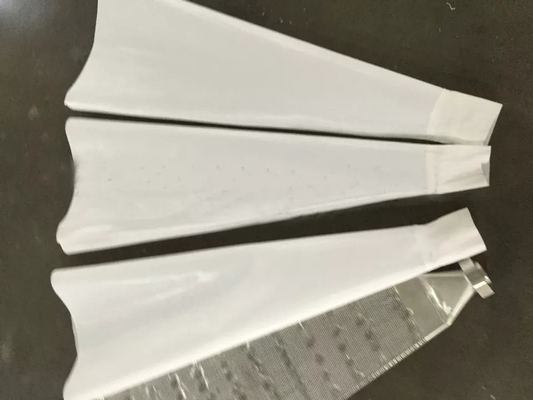

PG / GPY Series Disc Filter Fan Plate Castings And Forgings For Mining Equipment 1
