Product Details:
Payment & Shipping Terms:
|
| Product Name: | Gyratory Crusher | Type: | PXH Series |
|---|---|---|---|
| Feeding Size Mm(in): | 1065 (42) | Pinion Speed RPM: | 600 |
| Max. POWER: | 375(500) | Spindle Position Control Assembly: | 4040 |
| Classification: | Stone Crusher Machine | Warranty: | 12 Months |
| High Light: | 1525mm Feed Size Gyratory Crusher,1065mm Feed Size Gyratory Crusher,Stone Crusher Machine 600 RPM |
||

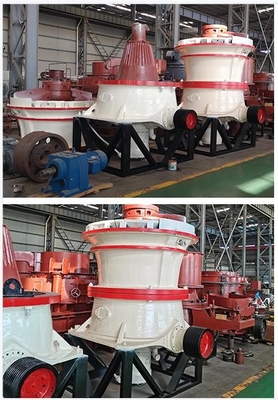

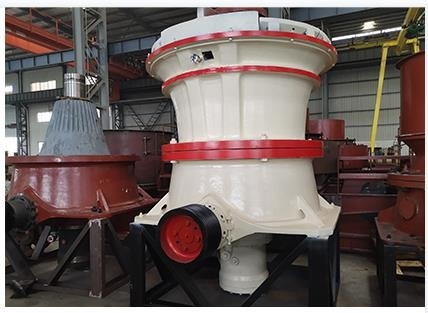

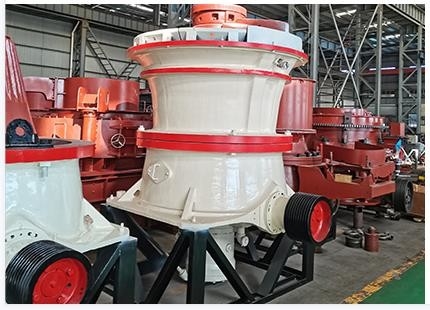

Gyratory Crusher Of 1065-1525mm Feed Size Stone Crusher Machine
1. Profile of Gyratory Crusher Stone Crusher Machine
Capacity: Subject to availability
Feed size: 1065-1525mm
Applicable materials: limestone, granite, gabbro, basalt, river stone, coal gangue, quartz, diabase, iron ore, copper ore, zinc ore, manganese ore, etc. (hard stone).
Application: Machine-made sand, asphalt limestone, granite, gabbro, basalt, river stone, coal gangue, quartz, diabase, iron ore, copper ore, zinc ore, manganese ore, etc. (hard rock). Concrete, metal mine, chemical industry, highway, railway, metallurgy, construction, highway, water conservancy
2. Product introduction of Gyratory Crusher Stone Crusher Machine
PXH series gyratory crusher set mechanical, hydraulic, electrical, automation and intelligent control technology in one, is a large capacity, high efficiency and intelligent new coarse crushing equipment, compared with the traditional gyratory crusher, high crushing efficiency, low use cost, convenient maintenance and adjustment.
The crusher is mainly composed of the beam part, the upper middle and lower frame part, the moving cone part, the eccentric sleeve part, the transmission part and the hydraulic cylinder part, etc., driven by the motor to rotate the horizontal shaft, the horizontal shaft through the gear to drive the eccentric sleeve to rotate, and then the eccentric sleeve to drive the moving cone part to do circular swing, so as to achieve continuous extrusion broken stones.
By adjusting the hydraulic cylinder at the bottom of the moving cone can make the moving cone move up and down so as to conveniently adjust the size of the discharge port, convenient to adjust the size of the product particle size. At the same time, the hydraulic cylinder also provides over iron protection function, when there is an unbreakable object (such as iron) into the crushing chamber, the hydraulic cylinder can automatically make the moving cone fall, so as to release the iron, continue to break.
3. Product parameters of PXH Series Gyratory Crusher Stone Crusher Machine
| Model | Feeding size mm(in) |
Pinion speed |
Power Max. kW(HP) |
125mm (5.0") |
140mm (5.5") |
150mm (6.0") |
165mm (6.5") |
175mm (7.0") |
190mm (7.5") |
200mm (8.0") |
215mm (8.5") |
230mm (9.0") |
240mm (9.5") |
250mm (10.0") |
42-65 |
1065 (42) |
600 |
375 (500) |
— |
2010 (2220) |
2335 (2575) |
2515 (2775) |
2870 (3165) |
— |
— |
— |
— |
— |
— |
50-65 |
1270 (50) |
600 |
375 (500) |
— |
— |
2395 (2645) |
2780 (3065) |
2935 (3240) |
— |
— |
— |
— |
— |
— |
54-75 |
1370 (54) |
600 |
450 (600) |
— |
— |
2885 (3185) |
2985 (3295) |
3145 (3470) |
3335 (3680) |
3485 (3845) |
— |
— |
— |
— |
62-75 |
1575 (62) |
600 |
450 (600) |
— |
— |
2890 (3190) |
3615 (3985) |
3815 (4210) |
4205 (4640) |
4330 (4775) |
— |
— |
— |
— |
60-89 |
1525 (60) |
600 |
600 (800) |
— |
— |
— |
4195 (4625) |
4540 (5005) |
5080 (5600) |
5295 (5840) |
5530 (6100) |
5805 (6400) |
— |
— |
60-110E |
1525 (60) |
600 |
1200 (1600) |
— |
— |
— |
— |
5535 (6100) |
6945 (7655) |
7335 (8085) |
7570 (8345) |
8280 (9130) |
8595 (9475) |
8890 (9800) |
