Product Details:
Payment & Shipping Terms:
|
| Product Name: | Gyratory Crusher | Model: | PXH Series Cone Crusher |
|---|---|---|---|
| Feeding Size Mm(in): | 1065 | Crusher Model: | 50-65 |
| Crusher Weight(kg): | 153,300 | Eccentric Assembly: | 3080 |
| Classification: | Stone Crusher Machine | Warranty: | 12 Months |
| High Light: | Hydraulic Gyratory Crusher,Hard Rock Gyratory Crusher,Hard Rock Stone Crusher Machine |
||

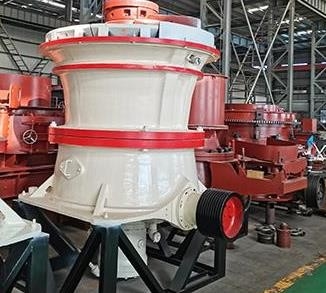

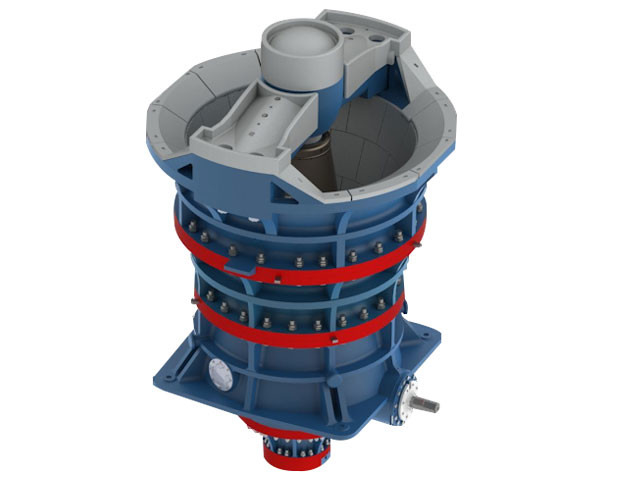

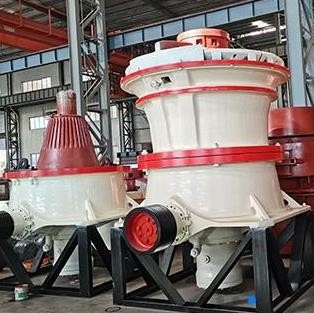

Hydraulic Gyratory Crusher Stone Crusher Machine For Hard Rock Crushing
1. Profile of Gyratory Crusher Stone Crusher Machine
Capacity: Subject to availability
Feed size: 1065-1525mm
Applicable materials: limestone, granite, gabbro, basalt, river stone, coal gangue, quartz, diabase, iron ore, copper ore, zinc ore, manganese ore, etc. (hard stone).
Application: Machine-made sand, asphalt limestone, granite, gabbro, basalt, river stone, coal gangue, quartz, diabase, iron ore, copper ore, zinc ore, manganese ore, etc. (hard rock). Concrete, metal mine, chemical industry, highway, railway, metallurgy, construction, highway, water conservancy
2. Product advantages of Gyratory Crusher Stone Crusher Machine
(1) The crushing chamber is suitable for all kinds of crushing application conditions, with better crushing performance.
(2) The manganese steel wear part is the standard part, and the chrome fixed cone liner and the lower frame liner are the optional parts.
(3) The effective dust seal is equipped with a positive pressure blower to prevent dust from entering the eccentric device and drive device, and extend the life of the crusher bearing.
(4) Balanced design, is the design of mobile or fixed crushing operation, so that the impact force transmitted to the crusher supporting frame is small.
(5) The beam bushing and sealing, without removing the beam, can be easily replaced, which reduces the labor, time and equipment consumption and production loss caused by parking.
(6) Heavy integral spindle, equipped with patented alloy steel thread spindle sleeve, reduce the stress of the spindle.
(7) The moving cone locking nut with cutting ring can make the removal of the moving cone liner simple
(8) High strength frame design, even under bad crushing conditions, can also work without fault, and extend the service life.
(9) The spindle and the moving cone are cast together to avoid the loosening of the moving cone in the crushing process.
(10) External adjustment device for big and small gear backlash.
(11) The thrust bearing wear indicator releases harmless silver powder into the lubricating oil when it reaches the wear through thickness
(12) The spindle position control system can easily adjust the spindle to compensate for liner wear and control the product particle size.
4. Product parameters of Gyratory Crusher Stone Crusher Machine
| Crusher model | Crusher weight | Beam assembly | The spindle assembly | The spindle assembly | Lower rack assembly | Spindle position control assembly | Eccentric assembly | |
42-65 |
kg |
119,750 |
20,500 |
80,100 |
23,130 |
29,570 |
4,040 |
3,080 |
50-65 |
kg |
153,300 |
30,840 |
54,880 |
28,120 |
29,570 |
4,040 |
3,080 |
54-75 |
kg |
242,220 |
38,100 |
85,050 |
38,560 |
62,140 |
5,400 |
5,720 |
62-75 |
kg |
298,460 |
69,850 |
109,320 |
42,180 |
62,240 |
5,400 |
5,720 |
60-89 |
kg |
398,250 |
65,320 |
154,680 |
66,220 |
82,780 |
10,430 |
8,940 |
60-110E |
kg |
553,383 |
103,964 |
169,010 |
103,874 |
114,986 |
21,275 |
17,900 |
