Product Details:
Payment & Shipping Terms:
|
| Product Name: | Gyratory Crusher | Type: | PXH Series |
|---|---|---|---|
| Crusher Model Mm(in): | 42-65 | Crusher Weight: | 119,750 |
| Beam Assembly: | 20,500 | Lower Rack Assembly: | 29,570 |
| Classification: | Stone Crusher Machine | Warranty: | 12 Months |
| High Light: | High Capacity Gyratory Crusher,High Capacity Stone Crusher Machine,Granite Stone Crusher Machine |
||

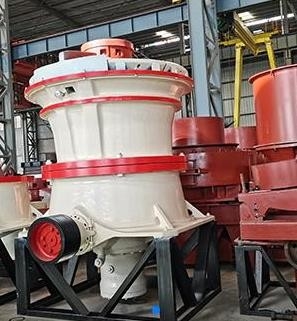

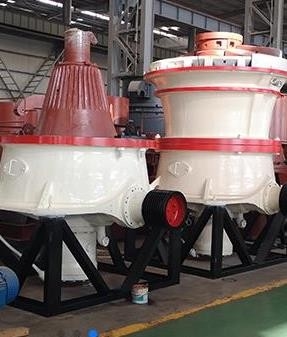

High Capacity Gyratory Crusher Stone Crusher Machine For Granite Crushing
1. Profile of PXH Series Gyratory Crusher Stone Crusher Machine
Capacity: Subject to availability
Feed size: 1065-1525mm
Applicable materials: limestone, granite, gabbro, basalt, river stone, coal gangue, quartz, diabase, iron ore, copper ore, zinc ore, manganese ore, etc. (hard stone).
Application: Machine-made sand, asphalt limestone, granite, gabbro, basalt, river stone, coal gangue, quartz, diabase, iron ore, copper ore, zinc ore, manganese ore, etc. (hard rock). Concrete, metal mine, chemical industry, highway, railway, metallurgy, construction, highway, water conservancy
2. Product introduction of PXH Series Gyratory Crusher Stone Crusher Machine
PXH series gyratory crusher set mechanical, hydraulic, electrical, automation and intelligent control technology in one, is a large capacity, high efficiency and intelligent new coarse crushing equipment, compared with the traditional gyratory crusher, high crushing efficiency, low use cost, convenient maintenance and adjustment.
The crusher is mainly composed of the beam part, the upper middle and lower frame part, the moving cone part, the eccentric sleeve part, the transmission part and the hydraulic cylinder part, etc., driven by the motor to rotate the horizontal shaft, the horizontal shaft through the gear to drive the eccentric sleeve to rotate, and then the eccentric sleeve to drive the moving cone part to do circular swing, so as to achieve continuous extrusion broken stones.
By adjusting the hydraulic cylinder at the bottom of the moving cone can make the moving cone move up and down so as to conveniently adjust the size of the discharge port, convenient to adjust the size of the product particle size. At the same time, the hydraulic cylinder also provides over iron protection function, when there is an unbreakable object (such as iron) into the crushing chamber, the hydraulic cylinder can automatically make the moving cone fall, so as to release the iron, continue to break.
3. Product parameters of PXH Series Gyratory Crusher Stone Crusher Machine
| Crusher model | Crusher weight | Beam assembly | The spindle assembly | The spindle assembly | Lower rack assembly | Spindle position control assembly | Eccentric assembly | |
42-65 |
kg |
119,750 |
20,500 |
80,100 |
23,130 |
29,570 |
4,040 |
3,080 |
50-65 |
kg |
153,300 |
30,840 |
54,880 |
28,120 |
29,570 |
4,040 |
3,080 |
54-75 |
kg |
242,220 |
38,100 |
85,050 |
38,560 |
62,140 |
5,400 |
5,720 |
62-75 |
kg |
298,460 |
69,850 |
109,320 |
42,180 |
62,240 |
5,400 |
5,720 |
60-89 |
kg |
398,250 |
65,320 |
154,680 |
66,220 |
82,780 |
10,430 |
8,940 |
60-110E |
kg |
553,383 |
103,964 |
169,010 |
103,874 |
114,986 |
21,275 |
17,900 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
