| Product: | Cone Crusher | Type: | DP Single Cylinder Hydraulic Cone Crusher |
|---|---|---|---|
| Advantage: | The Grain Type Is Neat And The Yield Is High | Used For: | Coarse Crushing, Medium Crushing, Fine Crushing. |
| Weight: | 7350 KG | Power: | 90 KW |
| Classification: | Stone Crusher Machine | Warranty: | 12 Months |
| High Light: | Single Cylinder Hydraulic Cone Crusher,Single Cylinder Stone Crusher Machine,90KW Single Cylinder Hydraulic Cone Crusher |
||

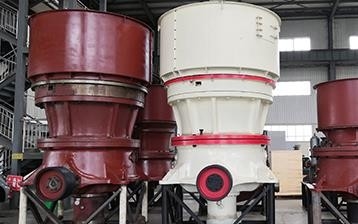

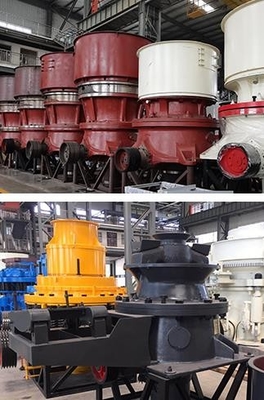

DP Single Cylinder Hydraulic Cone Crusher Stone Crusher Machine
1. Overview of DP single cylinder hydraulic cone crusher stone crusher machine
Output: ≤500T/H
Feeding size: ≤380
Applicable materials: iron ore, copper ore, quartz, granite, basalt, diabase
Application: Metallurgical industry, construction industry, road industry, chemical industry and phosphate industry.
2. Product advantages of DP single cylinder hydraulic cone crusher stone crusher machine
(1) The grain type is neat and the yield is high
(2) High crushing capacity
(3) Continuous and stable operation, and can prevent the automatic overload protection due to iron mixing
(4) Rotating feeding device makes lining wear evenly
3. Product parameters of DP single cylinder hydraulic cone crusher stone crusher machine
| Model l | Cavity type | Maximum feeding size (mm) |
Discharge port (CSS) corresponding output (t/h) | |||||||||||||||
| 19mm | 22mm | 25mm | 29mm | 32mm | 35mm | 38mm | 41mm | 44mm | 48mm | 51mm | 54mm | 60mm | 64mm | 70mm | 76mm | |||
| DP100S | M | 170 | 85-90 | 105-145 | 125-175 | 145-200 | 165-215 | |||||||||||
DP430S |
EC | 360 | 126 | 138-173 | 147-230 | 156-293 | 165-310 | 174-327 | 183-344 | 196-306 | 205-256 | |||||||
| C | 300 | 108 | 116-145 | 127-199 | 135-254 | 144-270 | 152-285 | 161-301 | 196-264 | 108 | ||||||||
| MC | 235 | 91 | 98-123 | 106-166 | 116-218 | 124-232 | 131-246 | 139-261 | 147-275 | 154-241 | 165 | |||||||
DP440S |
EC | 450 | 267 | 282-353 | 298-446 | 313-563 | 334-601 | 350-524 | 365-456 | |||||||||
| C | 400 | 225 | 239-299 | 254-381 | 269-484 | 284-511 | 298-448 | 318-398 | 333 | |||||||||
| MC | 300 | 195 | 214-267 | 228-342 | 242-435 | 256-461 | 270-486 | 284-426 | 303-378 | 317 | ||||||||
| DP660S | EC | 560 | 349 | 368-460 | 392-588 | 410-718 | 428-856 | 465-529 | 489-978 | 525-1050 | 562-983 | |||||||
| C | 500 | 318 | 336-420 | 353-618 | 376-753 | 394-788 | 411-823 | 446-892 | 469-822 | 504-631 | ||||||||
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
Contact Person: Mr. David
Tel: 86-18637916126
