Product Details:
Payment & Shipping Terms:
|
| Product: | Cone Crusher | Application: | Road Industry, Chemical Industry And Phosphate Industry |
|---|---|---|---|
| Type: | PY Spring Cone Crusher | Feed Size: | ≤ 391MM |
| Output: | 90-1200T/h | Motor Power (kW): | 30-280 KW |
| Classification: | Stone Crusher Machine | Warranty: | 12 Months |
| High Light: | Basalt Stone Crusher Machine,Basalt Spring Cone Crusher,Hard Materials Spring Cone Crusher |
||

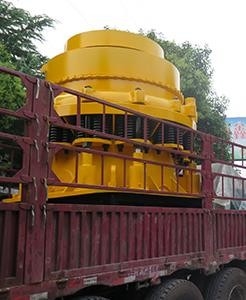

Stone Crusher Machine Spring Cone Crusher For Basalt And Other Hard Materials
1. Product introduction of PY Spring Cone Crusher Stone Crusher Machine
Spring cone crusher is suitable for crushing ore and rock with medium or higher hardness. It has the characteristics of reliable structure, high production efficiency, convenient adjustment and economical use. The spring safety system plays the role of overload protection, which can make the foreign iron block pass through the crushing chamber without harming the crusher. Glycerin seal form, so that dust and lubricating oil isolation, ensure reliable work. Standard type, medium type and short head type can be selected according to customer requirements for coarse crushing, medium crushing and fine crushing operation.
The conical breaking cone under the action of the eccentric set to do rotary pendulum movement, drive the broken wall and the rolling mortar wall of the material extrusion, rubbing, according to the laminating theory, the material is subjected to multiple directions of the force, according to its own texture is broken and polished, the formation of stable stone particles, meet the discharge requirements from the broken wall of the swing gap fall, the rest of the material continue to be broken until the requirements.
2. Product parameters of PY Spring Cone Crusher Stone Crusher Machine
| Model | Diameter of crushing cone (mm) |
Discharge port adjustment range (mm) |
Maximum feed size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (t) |
Dimension (mm) |
| PYB-600 | 600 | 12-25 | 65 | 15-25 | 30 | 5.5 | 1740×1225×1940 |
| PYD-600 | 600 | 3-13 | 36 | 5-23 | 30 | 5.5 | 1740×1225×1940 |
| PYB-900 | 900 | 15-50 | 115 | 50-90 | 55 | 10.18 | 1990×1640×2380 |
| PYZ-900 | 900 | 5-20 | 60 | 20-65 | 55 | 10.19 | 1990×1640×2380 |
| PYD-900 | 900 | 3-13 | 40 | 15-50 | 55 | 10.27 | 1990×1640×2380 |
| PYB-1200 | 1200 | 20-50 | 145 | 110-200 | 110 | 24.7 | 2805×2300×2980 |
| PYZ-1200 | 1200 | 8-26 | 100 | 50-150 | 110 | 25 | 2805×2300×2980 |
| PYD-1200 | 1200 | 3-15 | 50 | 18-105 | 110 | 25.6 | 2805×2300×2980 |
| PYB-1750 | 1750 | 25-60 | 215 | 280-480 | 155-160 | 50.6 | 3610×2950×4185 |
| PYZ-1750 | 1750 | 10-30 | 185 | 115-320 | 155-160 | 51 | 3610×2950×4185 |
| PYD-1750 | 1750 | 5-15 | 85 | 75-230 | 155-160 | 50.5 | 3610×2950×4185 |
| PYB-2200 | 2200 | 30-60 | 300 | 590-1000 | 260-280 | 84 | 4790×3430×5080 |
| PYZ-2200 | 2200 | 10-30 | 235 | 200-580 | 260-280 | 85 | 4790×3430×5080 |
| PYD-2200 | 2200 | 5-16 | 110 | 120-370 | 260-280 | 85 | 4790×3430×4852 |
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
COMPREHENSIVE MAINTENANCE PROGRAMS
