Product: | Cone Crusher | Application: | In Metallurgy, Chemical Industry, Building Materials, Coal, Mining And Other Fields |
---|---|---|---|
Type: | PSG Simmons Crusher | Feed Size: | ≤1000mm |
Output: | 15-850T/H | Applicable Materials: | Granite, Limestone |
Classification: | Stone Crusher Machine | Warranty: | 12 Months |
High Light: | PSG Simmons Crusher,Metallurgy Simmons Crusher,850T/H Simmons Crusher |

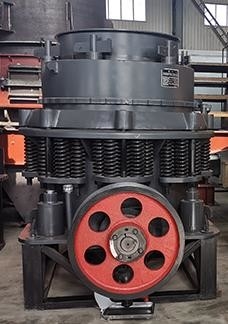

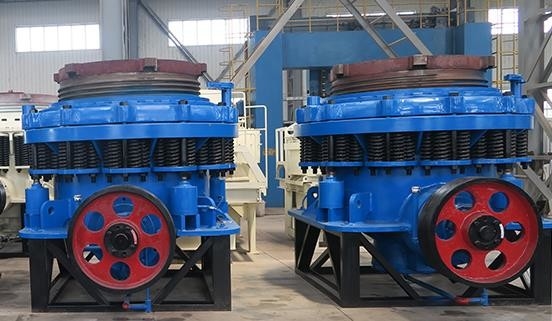

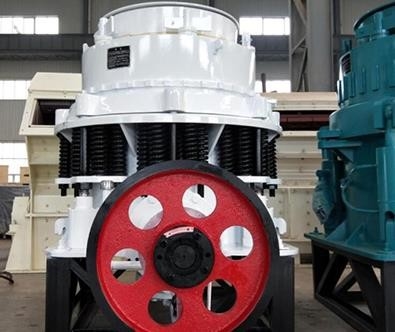

PSG Simmons Crusher Stone Crusher Machine Used In Metallurgy And Mining Industry
1. Overview of cone crusher Stone Crusher Machine
Output: 15-850T/H
Feed size: ≤1000mm
Applicable materials: granite, limestone, concrete, quicklime, gypsum, hydrated lime
Application: In metallurgy, chemical industry, building materials, coal, mining and other fields
2. Product introduction of cone crusher Stone Crusher Machine
Simons cone crusher crushing chamber type: divided into different cavity design, users can choose according to the site situation high crushing efficiency, uniform product particle size, good particle shape, rolling mortar wall wear uniform and long service life of the crushing chamber. Dry oil seal dust-proof: the unique dust-proof sealing structure, reliable sealing effect, prolong the replacement cycle of lubricating oil and the service life of parts.
The crushing cavity shape and the lamination crushing principle are adopted to produce the crushing effect between particles, so that the proportion of cube in the finished product is increased, the needle-shaped stone is reduced, and the grain size is uniform. High output: compared with other models, the PSG series cone breaking arm is long, the stroke is large, the crushing force is large, and the material in the crushing chamber can be broken.
Support large crushing ratio:
The key parts are made of special materials. In each stroke, the distance between the crushing cone and the rolling mortar wall is large, which not only allows more materials to enter the crushing chamber, but also forms a larger discharge volume, so that the speed of materials passing through the crushing chamber is accelerated.
3. Product parameters of cone crusher Stone Crusher Machine
Spec |
Model |
Cavity type |
Diameter of large end of crushing cone(mm) |
Discharge port adjustment range |
The feeding size of the opening edge at the minimum discharge port(mm) |
Maximum feeding size |
Capacity (t/h) |
Main motor power(kw) |
Weight |
Dimension |
2'FT |
PSGB-0607 |
Standard fine type |
600 |
6-38 |
70 |
60 |
16-50 |
30 |
4500 |
2195×1158×1651 |
2'FT |
PSGB-0609 |
Standard medium size |
600 |
10-38 |
95 |
80 |
18-65 |
30 |
4500 |
2195×1158×1651 |
2'FT |
PSGB-0611 |
Standard coarse shape |
600 |
13-38 |
110 |
90 |
22-70 |
30 |
4500 |
2195×1158×1651 |
2'FT |
PSGD-0603 |
Short head thin type |
600 |
3-13 |
35 |
30 |
9-35 |
30 |
4500 |
2195×1158×1651 |
2'FT |
PSGD-0605 |
Short head thick type |
600 |
5-16 |
50 |
40 |
22-70 |
30 |
4500 |
2195×1158×1651 |
3'FT |
PSGB-0910 |
Standard fine type |
900 |
9-22 |
102 |
85 |
45-91 |
75 |
9980 |
2656×1636×2241 |
3'FT |
PSGB-0917 |
Standard coarse shape |
900 |
13-38 |
175 |
150 |
59-163 |
75 |
9980 |
2656×1636×2241 |
3'FT |
PSGB-0918 |
Standard extra thick type |
900 |
25-38 |
178 |
150 |
118-163 |
75 |
9980 |
2656×1636×2241 |
3'FT |
PSGD-0904 |
Short head thin type |
900 |
3-13 |
41 |
35 |
27-90 |
75 |
10530 |
2656×1636×2241 |
3'FT |
PSGD-0906 |
Short head medium |
900 |
3-16 |
76 |
65 |
27-100 |
75 |
10530 |
2656×1636×2241 |
3'FT |
PSGD-0907 |
Short head thick type |
900 |
6-19 |
102 |
85 |
59-129 |
75 |
10530 |
2656×1636×2241 |
4.25'FT |
PSGB-1313 |
Standard fine type |
1295 |
13-31 |
137 |
115 |
109-181 |
160 |
22460 |
2983×1866×3156 |
4.25'FT |
PSGB-1321 |
Standard medium size |
1295 |
16-38 |
210 |
178 |
132-253 |
160 |
22460 |
2983×1866×3156 |
4.25'FT |
PSGB-1324 |
Standard coarse shape |
1295 |
19-51 |
241 |
205 |
172-349 |
160 |
22460 |
2983×1866×3156 |
4.25'FT |
PSGB-1325 |
Standard extra thick type |
1295 |
25-51 |
259 |
220 |
236-358 |
160 |
22460 |
2983×1866×3156 |
4.25'FT |
PSGD-1306 |
Short head thin type |
1295 |
3-16 |
64 |
54 |
36-163 |
160 |
22590 |
2983×1866×3156 |
4.25'FT |
PSGD-1308 |
Short head medium |
1295 |
6-16 |
89 |
76 |
82-163 |
160 |
22590 |
2983×1866×3156 |
4.25'FT |
PSGD-1310 |
Short head thick type |
1295 |
8-25 |
105 |
89 |
109-227 |
160 |
22590 |
2983×1866×3156 |
4.25'FT |
PSGD-1313 |
Short head extra thick type |
1295 |
16-25 |
133 |
113 |
209-236 |
160 |
22590 |
2983×1866×3156 |
5.5'FT |
PSGB-1620 |
Standard fine type |
1676 |
16-38 |
209 |
178 |
181-327 |
250 |
43270 |
3941×2954×3771 |
5.5'FT |
PSGB-1624 |
Standard medium size |
1676 |
22-51 |
241 |
205 |
258-417 |
250 |
43270 |
3941×2954×3771 |
5.5'FT |
PSGB-1626 |
Standard coarse shape |
1676 |
25-64 |
269 |
228 |
299-635 |
250 |
43270 |
3941×2954×3771 |
5.5'FT |
PSGB-1636 |
Standard extra thick type |
1676 |
38-64 |
368 |
313 |
431-630 |
250 |
43270 |
3941×2954×3771 |
5.5'FT |
PSGD-1607 |
Short head thin type |
1676 |
5-13 |
70 |
60 |
90-209 |
250 |
43870 |
3941×2954×3771 |
5.5'FT |
PSGD-1608 |
Short head medium |
1676 |
6-19 |
89 |
76 |
136-281 |
250 |
43870 |
3941×2954×3771 |
5.5'FT |
PSGD-1613 |
Short head thick type |
1676 |
10-25 |
133 |
113 |
190-336 |
250 |
43870 |
3941×2954×3771 |
5.5'FT |
PSGD-1614 |
Short head extra thick type |
1676 |
13-25 |
133 |
113 |
253-336 |
250 |
43870 |
3941×2954×3771 |
7'FT |
PSGB-2127 |
Standard fine type |
2134 |
19-38 |
278 |
236 |
400 |
86730 |
4613×3302×4638 |
|
7'FT |
PSGB-2133 |
Standard medium size |
2134 |
25-51 |
334 |
284 |
400 |
86730 |
4613×3302×4638 |
|
7'FT |
PSGB-2136 |
Standard coarse shape |
2134 |
31-64 |
369 |
314 |
1125-1814 |
400 |
86730 |
4613×3302×4638 |
7'FT |
PSGB-2146 |
Standard extra thick type |
2134 |
38-64 |
460 |
391 |
1252-1941 |
400 |
86730 |
4613×3302×4638 |
7'FT |
PSGD-2110 |
Short head thin type |
2134 |
5-16 |
105 |
89 |
218-463 |
400 |
89500 |
4613×3302×4638 |
7'FT |
PSGD-2113 |
Short head medium |
2134 |
10-19 |
133 |
113 |
404-580 |
400 |
89500 |
4613×3302×4638 |
7'FT |
PSGD-2117 |
Short head thick type |
2134 |
13-25 |
178 |
151 |
517-680 |
400 |
89500 |
4613×3302×4638 |
7'FT |
PSGD-2120 |
Short head extra thick type |
2134 |
16-25 |
203 |
172 |
580-744 |
400 |
89500 |
4613×3302×4638 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
