Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Product: | Head Sheave |
|---|---|---|---|
| Max. Diameter(mm): | 5000 Mm | Max.length(mm): | 8000 Mm |
| Used In: | Mining Hoist | Type: | Sheaves |
| Classification: | Castings And Forgings | Warranty: | 12 Months |
| High Light: | Mine Hoist Castings And Forgings,Mining Hoist Castings And Forgings,Castings And Forgings Head Sheave |
||

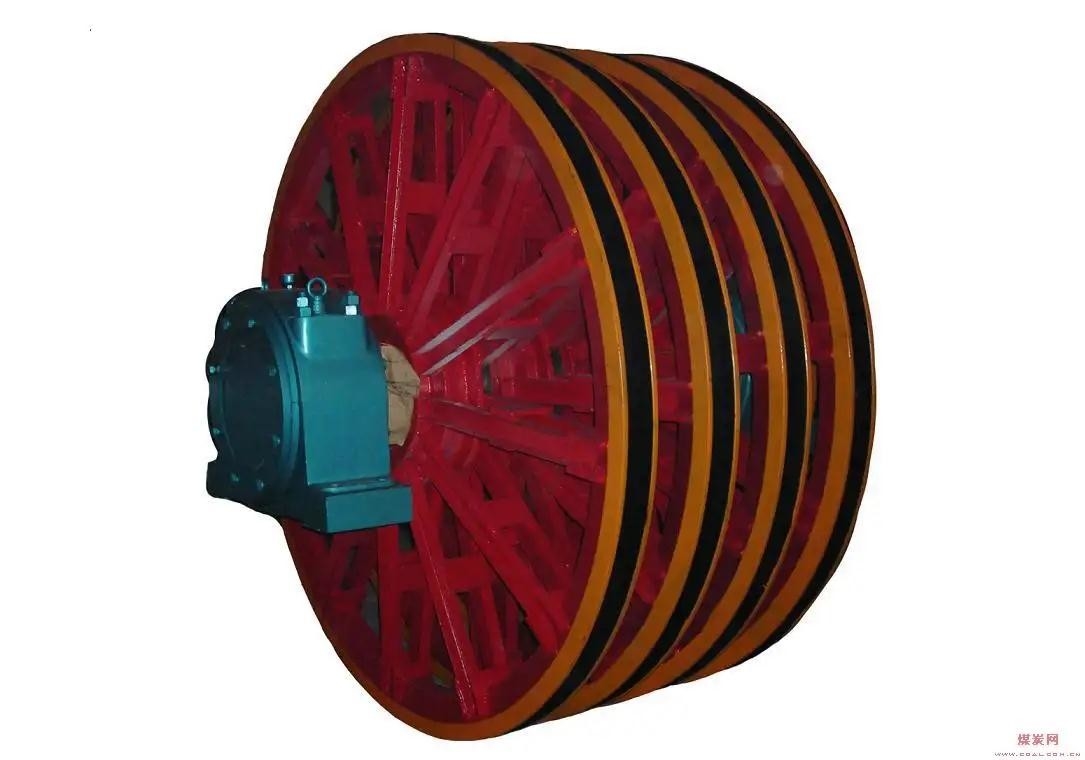

Mine Hoist Castings And Forgings Guide Wheel Device Of Head Sheave
1. Product description of head sheavel castings and forgings
On the premise that the guide wheel device can be transported as a whole, the traveling wheel and the fixed wheel adopt the whole casting welding structure. The wheel hub and rim are cast steel materials, and the spokes are channel steel. After welding, the whole annealing process can be carried out.
In consideration of the convenience of replacing the bearing bush for maintenance, there is room for replacing the bearing bush for disassembly, and the guide wheel device adopts eccentric arrangement.
The guide wheel shaft is integral forged of medium carbon alloy steel, with cast-welded roof wheel, equipped with PVC or nylon liner to protect the wire rope. Imported (or domestic) spherical roller bearings, bearing temperature measuring elements can also be installed.
2. Product parameters of sheet-wheel and guide wheel, castings and forgings
| Product name | Mine use head sheave |
| Material | 45#,Q235B,Q235A,Q345A,Q345B,alloy steel,carbon steel,etc |
| Heat treatment | Normalizing,annealing,aging,hardening and tempering |
| Process |
Blanking,bending,spicing,welding, abrasive blasting(shot blasting),milling,drilling,tapping,test |
| Main equipment | 1.6m,5m CNC Vertical Lathe; 8m,6m,5m Horizontal Lathe; milling machine; 6m,4m,3m,2m, CNC boring&milling machine; 2 sets CNC Lathes,2sets CNC Machining center VMC 850L;80mm,50mm drilling machine; Plasma cutting machine; CNC cutting machine; Bending machine; Rolling machine;plate shearing machine; submerged arc welding; gas shielded welding; argon arc welding; large spray room etc. |
| Max. diameter | 5000mm |
| Max.length | 8000mm |
| Inspection | Dimension inspection, external environment test, visual inspection, incoming inspection, finished product inspection, flaw detection |
| Max. weight | 10T |
3. Common faults and techniques of Head sheaves and guide wheels castings and forgings
(1) For the burning tile problem of old structure Head head sheave sliding bearing, the lubrication mode should be improved; Because the crown wheel is installed on the derrick, it is inconvenient for daily maintenance, temperature alarm signal device should be added to timely maintain and prevent burning tile accident, or replace the original sliding bearing with rolling bearing structure.
(2) For the old structure of the pulley without padding in the rope groove, no padding can be added on the original rope groove, so it is necessary to replace the pulley with padding, and the adjacent assembly size can be kept unchanged to facilitate installation;
(3) For the mines with difficult transportation in mountainous areas or underground roadways, the crown wheel (guide wheel) can be replaced with a two-half structure or four-half structure.
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
