Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | Head Sheave And Guide Wheel |
|---|---|---|---|
| Classification: | Castings And Forgings | Application: | Manufacturing Plant, Machinery Repair Shops, Energy & Mining |
| Usage: | Mining Hoist | Type: | Sheaves |
| Port: | Tianqin, Qingdao, Shanghai | Warranty: | 12 Months |
| High Light: | Head Sheave And Guide Wheel,Guide Wheel Castings And Forgings,Mining Hoist Head Sheave |
||

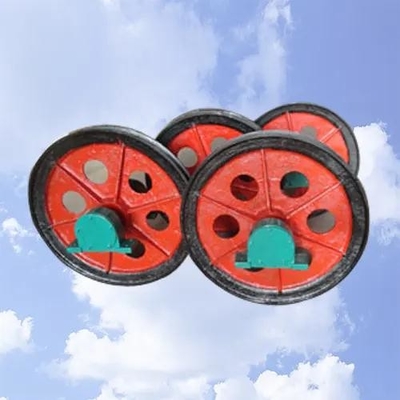

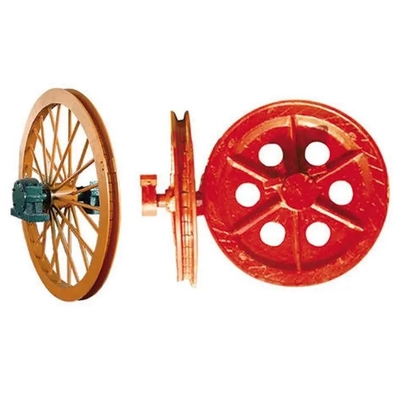

Head Sheave And Guide Wheel Castings And Forgings Suitable For Mining Hoist
1. Product description of head sheavel and guide wheel, castings and forgings

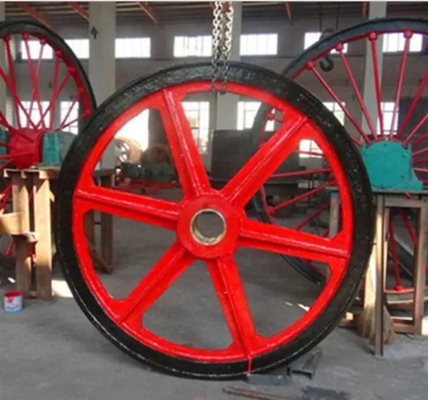

On the premise that the guide wheel device can be transported as a whole, the traveling wheel and the fixed wheel adopt the whole casting welding structure. The wheel hub and rim are cast steel materials, and the spokes are channel steel. After welding, the whole annealing process can be carried out.
In consideration of the convenience of replacing the bearing bush for maintenance, there is room for replacing the bearing bush for disassembly, and the guide wheel device adopts eccentric arrangement.
The guide wheel shaft is integral forged of medium carbon alloy steel, with cast-welded roof wheel, equipped with PVC or nylon liner to protect the wire rope. Imported (or domestic) spherical roller bearings, bearing temperature measuring elements can also be installed.
2. Product parameters of sheet-wheel and guide wheel, castings and forgings
| Product name | Mine use head sheave |
| Material | 45#,Q235B,Q235A,Q345A,Q345B,alloy steel,carbon steel,etc |
| Heat treatment | Normalizing,annealing,aging,hardening and tempering |
| Process |
Blanking,bending,spicing,welding, abrasive blasting(shot blasting),milling,drilling,tapping,test |
| Main equipment | 1.6m,5m CNC Vertical Lathe; 8m,6m,5m Horizontal Lathe; milling machine; 6m,4m,3m,2m, CNC boring&milling machine; 2 sets CNC Lathes,2sets CNC Machining center VMC 850L;80mm,50mm drilling machine; Plasma cutting machine; CNC cutting machine; Bending machine; Rolling machine;plate shearing machine; submerged arc welding; gas shielded welding; argon arc welding; large spray room etc. |
| Max. diameter | 5000mm |
| Max.length | 8000mm |
| Inspection | Dimension inspection, external environment test, visual inspection, incoming inspection, finished product inspection, flaw detection |
| Max. weight | 10T |
3. Common faults and techniques of Head sheaves and guide wheels castings and forgings
(1) For the burning tile problem of old structure Head head sheave sliding bearing, the lubrication mode should be improved; Because the crown wheel is installed on the derrick, it is inconvenient for daily maintenance, temperature alarm signal device should be added to timely maintain and prevent burning tile accident, or replace the original sliding bearing with rolling bearing structure.
(2) For the old structure of the pulley without padding in the rope groove, no padding can be added on the original rope groove, so it is necessary to replace the pulley with padding, and the adjacent assembly size can be kept unchanged to facilitate installation;
(3) For the mines with difficult transportation in mountainous areas or underground roadways, the crown wheel (guide wheel) can be replaced with a two-half structure or four-half structure.
Depending on our company's strong scientific research ability and production and sales ability, relying on advanced and mature production technology in Luoyang mining machinery industry cluster area, we have cooperated with major well-known enterprises at home and abroad to provide technical services and complete sets of equipment for key projects in national mining, metallurgy, building materials, lifting, electric power, non-ferrous metals, environmental protection, chemical industry, petroleum and other industries. Spare parts. Relying on innovative technology, new products and perfect after-sales service, the company has won the trust and support of more and more domestic and foreign customers.
