Product Details:
Payment & Shipping Terms:
|
| Model: | Cement Rotary Kiln | Method: | Dry Cement Rotary Kiln, Semi-dry Cement Rotary Kiln And Wet Cement Rotary Kiln |
|---|---|---|---|
| Condition: | New | Feature: | High Quality Carbon Steel Or Alloy Steel Plate |
| Production Capacity: | 5000-12000 T/d | Thrust Roller Form: | Hydraulic Pressure |
| Keyword: | China Rotary Kiln | Warranty: | 12 Month |
| High Light: | Semi Dry Cement Rotary Kiln,5000 Tpd Cement Rotary Kiln,5000 Tpd Cement Making Production Line |
||

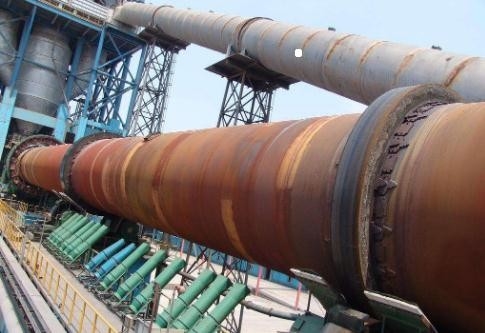

5000 Tpd Cement Making Production Line Machinery Cement Rotary Kiln
The cement rotary kiln designed and developed by Luo Mining Machinery Factory includes dry cement rotary kiln, semi-dry cement rotary kiln and wet cement rotary kiln.
1. Working principle of cement rotary kiln
Under the condition of high temperature, the maintenance of accessories and the control of thermal system are related to the safety and efficiency of rotary kiln operation. The key point of transmission device maintenance is the lubrication of equipment, running state, dynamic detection and the meshing accuracy of the gear. The installation accuracy of the supporting device determines whether the rotary kiln can run safely and reliably. During the operation, attention should be paid to reasonably controlling the carrying capacity distribution of the supporting wheels, the layout of the supporting wheels, the upstream and downstream pressure and time of the hydraulic retaining wheels, the force of the supporting wheels, and the gap between the belt and the backing plate. The quality of sealing device directly affects the thermal system and operation cost of rotary kiln. Strengthening data collation and analysis of routine maintenance of rotary kiln is beneficial to equipment management.
2. Cement rotary kiln structure
It is composed of cylinder body, transmission device, supporting and retaining wheel supporting device, kiln lining, kiln tail sealing, kiln head and fuel device, etc
Luo Mine cement rotary kiln specifications: specifications from φ3.2×50 ~ φ6×95m, output 1000-10000 T /d.
3. Product parameters of large cement rotary kiln
| No. | Type |
Specifications |
Motor |
Thrust Roller form |
Supporting form |
Weight t |
||
|
Rev r/min |
Slope % | Production t/d |
Power kW |
|||||
| 1 | Φ3.2×50 | 0.674～3.37 | 3.5 | 1000 | 160 |
hydraulic pressure |
Slide | 252.4 |
| 2 | Φ3.5×52.5 | 0.6～3.6 | 3.5 | 1500 | 180 | 366.5 | ||
| 3 | Φ4×56 | 0.35～3.5 | 3.5 | 2000 | 250 | 489 | ||
| 4 | Φ4×60 | 0.396～3.96 | 3.5 | 2500 | 315 | 523 | ||
| 5 | Φ4.3×64 | 0.4～3.96 | 3.5 | 3200 | 420 | 606.69 | ||
| 6 | Φ4.8×72 | 0.39～3.96 | 3.5 | 5000 | 630 | 853.3 | ||
| 7 | Φ4.8×74 | 0.35～4 | 4 | 5000 | 630 | 864 | ||
| 8 | Φ5.2×61 | 0.38～3.79 | 3.5 | 5500 | 800 | 859 | ||
| 9 | Φ5×80 | max3.5 | 4 | 6000 | 800 | |||
| 10 | Φ5.6×87 | max4.23 | 4 | 8000 | 800 | 1201 | ||
| 11 | Φ6×90 | max3.5 | 4 | 10000 | 845 × | |||
| 12 | Φ6×95 | max5 | 4 | 10000 | 950×2 | |||
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
