Product Details:
Payment & Shipping Terms:
|
| Name: | Cement Rotary Kiln | Model: | Dry Cement Rotary Kiln, Semi-dry Cement Rotary Kiln And Wet Cement Rotary Kiln |
|---|---|---|---|
| Type: | Φ3.2×50 | Rev R/min: | 0.674～3.37 |
| Condition: | New | Production Capacity: | 5000-12000 T/d |
| Keywords: | China Rotary Kiln | Warranty: | 12 Month |
| High Light: | Large Capacity Cement Rotary Kiln,Mining Equipment Cement Rotary Kiln,Cement Rotary Kiln 12000t/d |
||

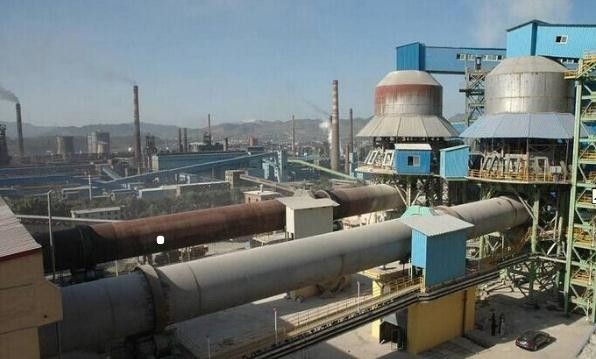

Large Capacity Cement Rotary Kiln For Mining Equipment,Cement Plant
1. The cement rotary kiln designed and developed by Luo Mining Machinery Factory includes dry cement rotary kiln, semi-dry cement rotary kiln and wet cement rotary kiln.

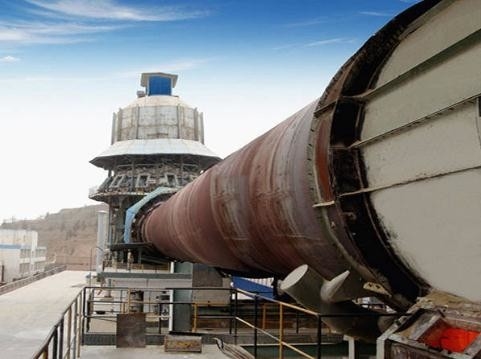

2. Cement rotary kiln structure
It is composed of cylinder body, transmission device, supporting and retaining wheel supporting device, kiln lining, kiln tail sealing, kiln head and fuel device, etc
Luo Mine cement rotary kiln specifications: specifications from φ3.2×50 ~ φ6×95m, output 1000-10000 T /d.
3. Product parameters of large cement rotary kiln
| No. | Type |
Specifications |
Motor |
Thrust Roller form |
Supporting form |
Weight t |
||
|
Rev r/min |
Slope % | Production t/d |
Power kW |
|||||
| 1 | Φ3.2×50 | 0.674～3.37 | 3.5 | 1000 | 160 |
hydraulic pressure |
Slide | 252.4 |
| 2 | Φ3.5×52.5 | 0.6～3.6 | 3.5 | 1500 | 180 | 366.5 | ||
| 3 | Φ4×56 | 0.35～3.5 | 3.5 | 2000 | 250 | 489 | ||
| 4 | Φ4×60 | 0.396～3.96 | 3.5 | 2500 | 315 | 523 | ||
| 5 | Φ4.3×64 | 0.4～3.96 | 3.5 | 3200 | 420 | 606.69 | ||
| 6 | Φ4.8×72 | 0.39～3.96 | 3.5 | 5000 | 630 | 853.3 | ||
| 7 | Φ4.8×74 | 0.35～4 | 4 | 5000 | 630 | 864 | ||
| 8 | Φ5.2×61 | 0.38～3.79 | 3.5 | 5500 | 800 | 859 | ||
| 9 | Φ5×80 | max3.5 | 4 | 6000 | 800 | |||
| 10 | Φ5.6×87 | max4.23 | 4 | 8000 | 800 | 1201 | ||
| 11 | Φ6×90 | max3.5 | 4 | 10000 | 845 × | |||
| 12 | Φ6×95 | max5 | 4 | 10000 | 950×2 | |||
4. Complete set of process equipment and engineering design technology for cement plant with daily output of 5000-12000 tons
Luo Mine has successively developed dozens of sets of complete sets of cement equipment for Pakistan, Thailand, Vietnam, Indonesia and other countries and domestic users, with a daily output of 3500-8000t cement plant complete sets of technology, complete sets of equipment and civil engineering development and design capabilities, and can undertake turnkey projects. It has the ability of developing main machine equipment for 12000t cement production line.
In 1998, a Ф4×60m rotary kiln for 2500T/D new dry cement production line was manufactured. In 2002, finished the manufacture of 5000T/D cement production line with a Ф4.8×72m cement rotary kiln; In 2003, Ф5.6×87m cement rotary kiln for 8000t/d cement production line and Ф6×95m cement rotary kiln for 10000t/d cement production line were manufactured respectively.
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
