Product Details:
Payment & Shipping Terms:
|
| Product: | Cement Rotary Kiln | Type: | Dry Cement Rotary Kiln, Semi-dry Cement Rotary Kiln And Wet Cement Rotary Kiln |
|---|---|---|---|
| Condition: | New | Power KW: | 160 |
| Slope %: | 3.5 | Thrust Roller Form: | Hydraulic Pressure |
| Classsification: | Cement Rotary Kiln | Warranty: | 12 Months |
| High Light: | Energy Saving Cement Dry Kiln,Energy Saving Cement Rotary Kiln,160kW Cement Rotary Kiln |
||

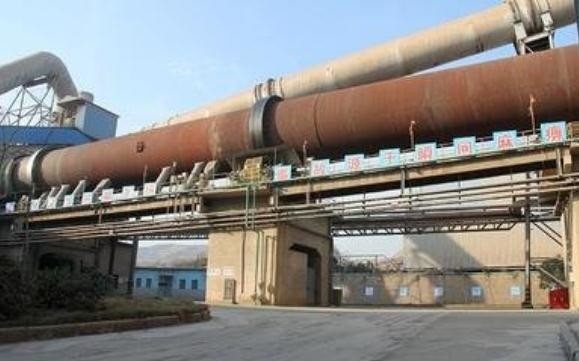

Energy Saving Cement Dry Kiln Cement Rotary Kiln Cement Clinker Rotary Kiln Plant

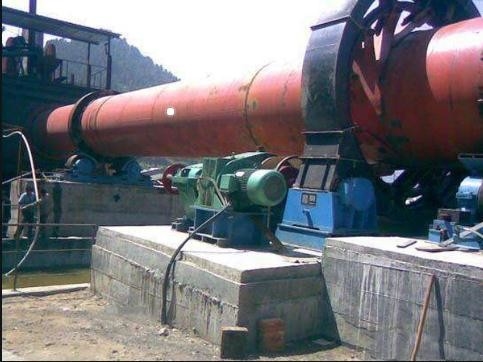

1. Cement rotary kiln structure
It is composed of cylinder body, transmission device, supporting and retaining wheel supporting device, kiln lining, kiln tail sealing, kiln head and fuel device, etc
Luo Mine cement rotary kiln specifications: specifications from φ3.2×50 ~ φ6×95m, output 1000-10000 T /d.
2. Product parameters of large cement rotary kiln
| No. | Type |
Specifications |
Motor |
Thrust Roller form |
Supporting form |
Weight t |
||
|
Rev r/min |
Slope % | Production t/d |
Power kW |
|||||
| 1 | Φ3.2×50 | 0.674～3.37 | 3.5 | 1000 | 160 |
hydraulic pressure |
Slide | 252.4 |
| 2 | Φ3.5×52.5 | 0.6～3.6 | 3.5 | 1500 | 180 | 366.5 | ||
| 3 | Φ4×56 | 0.35～3.5 | 3.5 | 2000 | 250 | 489 | ||
| 4 | Φ4×60 | 0.396～3.96 | 3.5 | 2500 | 315 | 523 | ||
| 5 | Φ4.3×64 | 0.4～3.96 | 3.5 | 3200 | 420 | 606.69 | ||
| 6 | Φ4.8×72 | 0.39～3.96 | 3.5 | 5000 | 630 | 853.3 | ||
| 7 | Φ4.8×74 | 0.35～4 | 4 | 5000 | 630 | 864 | ||
| 8 | Φ5.2×61 | 0.38～3.79 | 3.5 | 5500 | 800 | 859 | ||
| 9 | Φ5×80 | max3.5 | 4 | 6000 | 800 | |||
| 10 | Φ5.6×87 | max4.23 | 4 | 8000 | 800 | 1201 | ||
| 11 | Φ6×90 | max3.5 | 4 | 10000 | 845 × | |||
| 12 | Φ6×95 | max5 | 4 | 10000 | 950×2 | |||
3. Technical characteristics of cement rotary kiln in Luo Mine
(1) The kiln body is made of high quality carbon steel or alloy steel plate and automatically welded;
(2) The roller is made of ZG35CrMo or 42CrMo steel;
(3) Sliding bearing adopts large clearance without scraping tile;
(4) Transmission device adopts hard tooth surface reducer, spring diaphragm coupling, DC motor drive;
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
