Product Details:
Payment & Shipping Terms:
|
| Name: | Cement Rotary Kiln / Cement Plant | Type: | Dry Cement Rotary Kiln, Semi-dry Cement Rotary Kiln And Wet Cement Rotary Kiln |
|---|---|---|---|
| Condition: | New | Feature: | High Quality , High Efficient |
| Output: | 5000-12000 T/d | Thrust Roller Form: | Hydraulic Pressure |
| Supporting Form: | Slide | Warranty: | 12 Months |
| High Light: | High Efficient Cement Rotary Kiln,Cement Rotary Kiln 5000 T/D,Cement Rotary Kiln 12000 T/D |
||

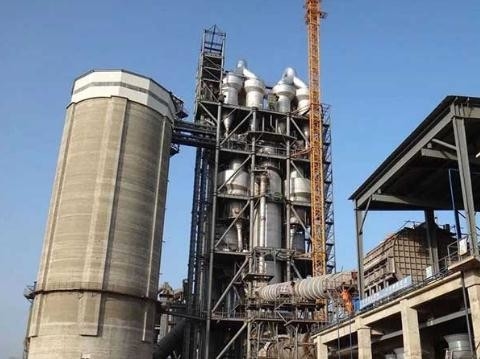

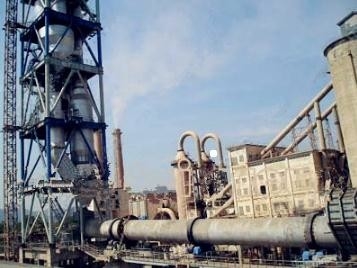

High Efficient Cement Rotary Kiln / Cement Plant / Cement Making Machinery
1. Working principle of cement rotary kiln
Under the condition of high temperature, the maintenance of accessories and the control of thermal system are related to the safety and efficiency of rotary kiln operation. The key point of transmission device maintenance is the lubrication of equipment, running state, dynamic detection and the meshing accuracy of the gear. The installation accuracy of the supporting device determines whether the rotary kiln can run safely and reliably. During the operation, attention should be paid to reasonably controlling the carrying capacity distribution of the supporting wheels, the layout of the supporting wheels, the upstream and downstream pressure and time of the hydraulic retaining wheels, the force of the supporting wheels, and the gap between the belt and the backing plate. The quality of sealing device directly affects the thermal system and operation cost of rotary kiln. Strengthening data collation and analysis of routine maintenance of rotary kiln is beneficial to equipment management.
2. Product parameters of large cement rotary kiln
| No. | Type |
Specifications |
Motor |
Thrust Roller form |
Supporting form |
Weight t |
||
|
Rev r/min |
Slope % | Production t/d |
Power kW |
|||||
| 1 | Φ3.2×50 | 0.674～3.37 | 3.5 | 1000 | 160 |
hydraulic pressure |
Slide | 252.4 |
| 2 | Φ3.5×52.5 | 0.6～3.6 | 3.5 | 1500 | 180 | 366.5 | ||
| 3 | Φ4×56 | 0.35～3.5 | 3.5 | 2000 | 250 | 489 | ||
| 4 | Φ4×60 | 0.396～3.96 | 3.5 | 2500 | 315 | 523 | ||
| 5 | Φ4.3×64 | 0.4～3.96 | 3.5 | 3200 | 420 | 606.69 | ||
| 6 | Φ4.8×72 | 0.39～3.96 | 3.5 | 5000 | 630 | 853.3 | ||
| 7 | Φ4.8×74 | 0.35～4 | 4 | 5000 | 630 | 864 | ||
| 8 | Φ5.2×61 | 0.38～3.79 | 3.5 | 5500 | 800 | 859 | ||
| 9 | Φ5×80 | max3.5 | 4 | 6000 | 800 | |||
| 10 | Φ5.6×87 | max4.23 | 4 | 8000 | 800 | 1201 | ||
| 11 | Φ6×90 | max3.5 | 4 | 10000 | 845 × | |||
| 12 | Φ6×95 | max5 | 4 | 10000 | 950×2 | |||
4. Technical characteristics of cement rotary kiln in Luo Mine
(1) The kiln body is made of high quality carbon steel or alloy steel plate and automatically welded;
(2) The roller is made of ZG35CrMo or 42CrMo steel;
(3) Sliding bearing adopts large clearance without scraping tile;
(4) Transmission device adopts hard tooth surface reducer, spring diaphragm coupling, DC motor drive;
