Product Details:
Payment & Shipping Terms:
|
| Product: | Zinc Oxide Rorary Kiln | Condition: | New |
|---|---|---|---|
| Main Motor Model: | YSNP355M2-10 | Auxiliary Motor Model: | Y180L-4,22KW |
| Capacity: | 600 T/d | Bearing: | 3 Gear |
| Classification: | Cement Rotary Kiln | Warranty: | 12 Months |
| High Light: | Rotary Kiln In Cement Industry 600t/D,Single Drive Horizontal Rotary Kiln,600t/D Horizontal Rotary Kiln |
||
Single Drive Zinc Oxide Rotary Kiln And Cement Rotary Kiln For Mining
1. Introduction of Zinc Oxide Rotary Kiln And Cement Rotary Kiln For Mining
Zinc oxide rotary kiln is a kind of metallurgical rotary kiln. Metallurgical rotary kiln is mainly used for magnetization roasting of lean iron ore in steel works of metallurgical industry. Oxidation roasting of chromium and nickel ore; Refractory plant roasted high metallurgical ore and aluminum plant roasted clinker, aluminum hydroxide; Chemical plant roasted chrome ore and chromium ore powder and other minerals.
Zinc oxide is produced in a rotary kiln by mixing zinc charge, coal and other auxiliary materials through a series of chemical reactions. Zinc oxide, also known as zinc white, is easy to disperse in rubber and latex, natural rubber, synthetic rubber reinforcing agent, active agent and vulcanizing agent, but also white rubber colorant and filler.
2. Supply scope and technical parameters of Zinc Oxide Rotary Kiln And Cement Rotary Kiln
| No. | Device name | Type | QTY | Total weight(kg) | Note |
| 1 | Cylinder part | φ3.5×54m | 1 set | 220000 | |
| 2 | Kiln head sealing device | 1 set | 1450 | ||
| 3 | Kiln end sealing device | 1 set | 1320 | ||
| 4 | Big gear | 1 set | 12350 | ||
| 5 | Gear cover | 1 set | 2860 | ||
| 6 | Supporting device | 3 set | 88950 | split sleeve bearing | |
| 7 | Driving device | 1 set | 19600 | include(1)-(6) | |
| (1) | Main motor | YSNP355M2-10 | 1 unit | 1680 | |
| (2) | Reducer | YNS1240-50 | 1 unit | 3400 | |
| (3) | Auxiliary motor | Y180L-4,22KW | 1 unit | 180 | |
| (4) | Auxiliary reducer | YNS440-22.4 | 1 set | 285 | |
| (5) | Pinion part | 1 set | 3080 | ||
| (6) | Base and coupling, etc | 1 set | 10975 | ||
| 8 | Catch wheel station | contained control | 1 set | 500 | |
| 9 | other | 1 set | 560 | ||
| 10 | Installation tools | 1 set | 7500 | ||
| Total | 355090 | ||||
3. Main technical properties and requirements of Zinc Oxide Rotary Kiln And Cement Rotary Kiln
| Ⅰ,Ⅲ supporting wheel shaft | |||||||||
| Material | 45 | ||||||||
| Quantity | 4 | ||||||||
| Hardness | HB | ≥220 | |||||||
| Unit weight | kg | 2080 | |||||||
| Ⅱ roller | |||||||||
| Specifications | 750×φ1300 | ||||||||
| Material | ZG340-640 | ||||||||
| Hardness | HB | ≥190 | |||||||
| Quantity | 2 | ||||||||
| Unit weight | kg | 5580 | |||||||
| Ⅱ supporting shaft | |||||||||
| Material | 45 | ||||||||
| Hardness | HB | ≥220 | |||||||
| Quantity | 2 | ||||||||
| Unit weight | kg | 2580 | |||||||
| Roller bearing | Wafangdian | ||||||||
| Material | ZA27-2 | ||||||||
| Quantity | 12 | ||||||||
| Cylinder part material | Q235-B | ||||||||
| Thickness | mm | 22,25,32,36,50,60 | |||||||
| Ⅰ gear under the wheel belt | |||||||||
| Material | Q235-B | ||||||||
| Thickness | mm | 60 | |||||||
| Second gear wheel belt | |||||||||
| Material | Q235-B | ||||||||
| Thickness | mm | 60 | |||||||
| Third gear under the wheel belt | |||||||||
| Material | Q235-B | ||||||||
| Thickness | mm | 60 | |||||||

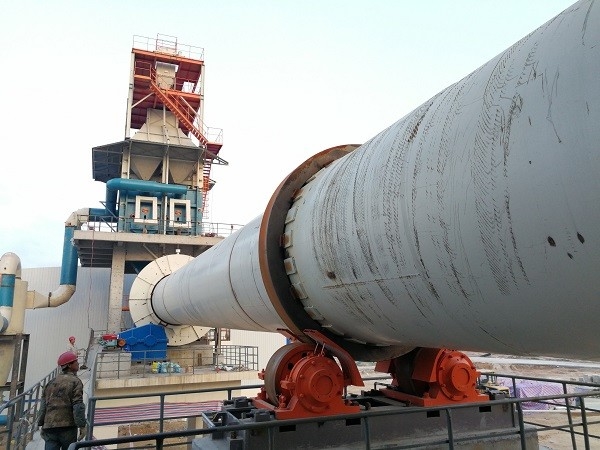

Single Drive Zinc Oxide Rotary Kiln And Cement Rotary Kiln For Mining
