| Name: | Φ3.5×54m Zinc Oxide Rorary Kiln | Condition: | New |
|---|---|---|---|
| Motor Type: | YSNP355M2-10 | Supporting Device: | Split Sleeve Bearing |
| Production Capacity: | 600 T/d | Kiln Head Sealing Device: | 1450 T |
| Keyword: | China Rotary Kiln | Classification: | Cement Rotary Kiln |
| High Light: | 600t/d Cement Rotary Kiln,metallurgical Cement Rotary Kiln,600t/d chemical rotary kiln |
||

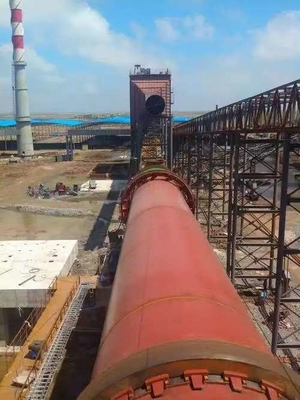

Zinc Oxide Rotary Kiln Complete Production Line And Cement Rotary Kiln
1. Introduction of
Zinc oxide rotary kiln is a kind of metallurgical rotary kiln. Metallurgical rotary kiln is mainly used for magnetization roasting of lean iron ore in steel works of metallurgical industry. Oxidation roasting of chromium and nickel ore; Refractory plant roasted high metallurgical ore and aluminum plant roasted clinker, aluminum hydroxide; Chemical plant roasted chrome ore and chromium ore powder and other minerals.
Zinc oxide is produced in a rotary kiln by mixing zinc charge, coal and other auxiliary materials through a series of chemical reactions. Zinc oxide, also known as zinc white, is easy to disperse in rubber and latex, natural rubber, synthetic rubber reinforcing agent, active agent and vulcanizing agent, but also white rubber colorant and filler.

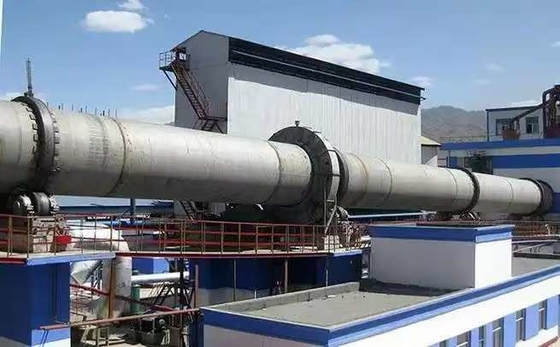

Zinc Oxide Rotary Kiln Complete Production Line And Cement Rotary Kiln
2. Φ 3.5×54m Supply scope and technical parameters of zinc oxide rotary kiln
| No. | Device name | Type | QTY | Total weight(kg) | Note |
| 1 | Cylinder part | φ3.5×54m | 1 set | 220000 | |
| 2 | Kiln head sealing device | 1 set | 1450 | ||
| 3 | Kiln end sealing device | 1 set | 1320 | ||
| 4 | Big gear | 1 set | 12350 | ||
| 5 | Gear cover | 1 set | 2860 | ||
| 6 | Supporting device | 3 set | 88950 | split sleeve bearing | |
| 7 | Driving device | 1 set | 19600 | include(1)-(6) | |
| (1) | Main motor | YSNP355M2-10 | 1 unit | 1680 | |
| (2) | Reducer | YNS1240-50 | 1 unit | 3400 | |
| (3) | Auxiliary motor | Y180L-4,22KW | 1 unit | 180 | |
| (4) | Auxiliary reducer | YNS440-22.4 | 1 set | 285 | |
| (5) | Pinion part | 1 set | 3080 | ||
| (6) | Base and coupling, etc | 1 set | 10975 | ||
| 8 | Catch wheel station | contained control | 1 set | 500 | |
| 9 | other | 1 set | 560 | ||
| 10 | Installation tools | 1 set | 7500 | ||
| Total | 355090 | ||||
3. Φ 3.5×54m Main technical properties and requirements of zinc oxide rotary kiln
| 3 Weight composition of each part of kiln | |||||||||
| Kiln end sealing device | |||||||||
| The number of | set | 1 | |||||||
| The weight of the | kg | 1320 | |||||||
| Ⅰ gear supporting device | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 25500 | |||||||
| Ⅱ grade supporting device | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 28850 | |||||||
| Grade ⅲ supporting device (with retaining wheel device) | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 34600 | |||||||
| Transmission device | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 19600 | |||||||
| Cylinder part | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 220000 | |||||||
| Kiln head seal | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 1450 | |||||||
| Hydraulic gear oil station | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 500 | |||||||
| Stopper oil station tubing system | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 25 | |||||||
| Installation tools | |||||||||
| Quantity | set | 1 | |||||||
| Weight | kg | 7500 | |||||||
| Total weight of rotary kiln (excluding kiln hood) | kg | 355090 | |||||||
| Manufacturing standards | |||||||||
| Motors and other electrical components: | |||||||||
| Manufacturing standards | GB755 | ||||||||
| Protection grade | IP44 | ||||||||
| Insulation grade | F | ||||||||
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

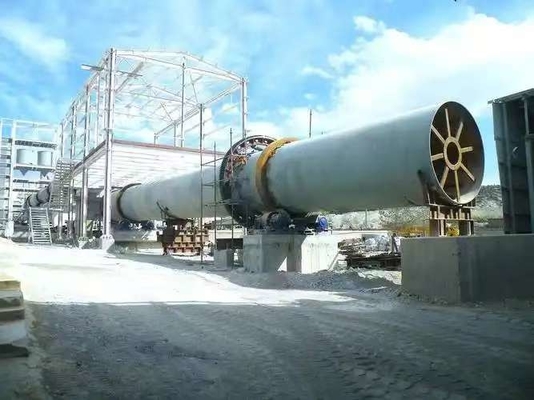

Zinc Oxide Rotary Kiln Complete Production Line And Cement Rotary Kiln
