Product Details:
Payment & Shipping Terms:
|
| Model: | Zinc Oxide Rorary Kiln | Output: | 600 T/d |
|---|---|---|---|
| Big Gear: | 12350kg | AGear Cover: | 2860kg |
| Catch Wheel Station: | New | Bearing Numbers: | 3 Gear |
| Classification: | Cement Rotary Kiln | Warranty: | 12 Month |
| High Light: | 54m Horizontal Rotary Kiln,54m Cement Rotary Kiln,Horizontal Rotary Kiln ISO |
||

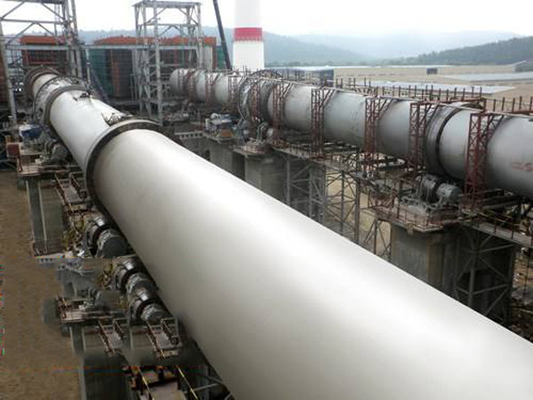

Φ3.5×54m Horizontal Zinc Oxide Rotary Kiln And Cement Rotary Kiln
1. Introduction of Φ3.5×54m Horizontal Zinc Oxide Rotary Kiln And Cement Rotary Kiln
Zinc oxide rotary kiln is a kind of metallurgical rotary kiln. Metallurgical rotary kiln is mainly used for magnetization roasting of lean iron ore in steel works of metallurgical industry. Oxidation roasting of chromium and nickel ore; Refractory plant roasted high metallurgical ore and aluminum plant roasted clinker, aluminum hydroxide; Chemical plant roasted chrome ore and chromium ore powder and other minerals.
Zinc oxide is produced in a rotary kiln by mixing zinc charge, coal and other auxiliary materials through a series of chemical reactions. Zinc oxide, also known as zinc white, is easy to disperse in rubber and latex, natural rubber, synthetic rubber reinforcing agent, active agent and vulcanizing agent, but also white rubber colorant and filler.

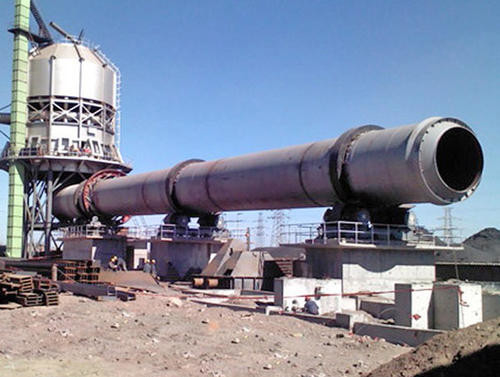

Φ3.5×54m Horizontal Zinc Oxide Rotary Kiln And Cement Rotary Kiln
2. Φ 3.5×54m Supply scope and technical parameters of zinc oxide rotary kiln
| No. | Device name | Type | QTY | Total weight(kg) | Note |
| 1 | Cylinder part | φ3.5×54m | 1 set | 220000 | |
| 2 | Kiln head sealing device | 1 set | 1450 | ||
| 3 | Kiln end sealing device | 1 set | 1320 | ||
| 4 | Big gear | 1 set | 12350 | ||
| 5 | Gear cover | 1 set | 2860 | ||
| 6 | Supporting device | 3 set | 88950 | split sleeve bearing | |
| 7 | Driving device | 1 set | 19600 | include(1)-(6) | |
| (1) | Main motor | YSNP355M2-10 | 1 unit | 1680 | |
| (2) | Reducer | YNS1240-50 | 1 unit | 3400 | |
| (3) | Auxiliary motor | Y180L-4,22KW | 1 unit | 180 | |
| (4) | Auxiliary reducer | YNS440-22.4 | 1 set | 285 | |
| (5) | Pinion part | 1 set | 3080 | ||
| (6) | Base and coupling, etc | 1 set | 10975 | ||
| 8 | Catch wheel station | contained control | 1 set | 500 | |
| 9 | other | 1 set | 560 | ||
| 10 | Installation tools | 1 set | 7500 | ||
| Total | 355090 | ||||
3. Smelting process of zinc oxide by rotary kiln
When smelting zinc oxide ore containing 20% ~ 25% zinc or industrial slag containing zinc in rotary kiln, it can greatly save coke or coal. The smelting product has the characteristics of good quality, improved productivity and small nodulation.
Using rotary kiln calcination process, when smelting zinc oxide ore with zinc content of 20% ~ 25%, the yield rate is 15% ~ 20%. (Namely 5-6T raw ore out of 1T zinc concentrate)
Φ3.5×54m Horizontal Zinc Oxide Rotary Kiln And Cement Rotary Kiln
Depending on our company's strong scientific research ability and production and sales ability, relying on advanced and mature production technology in Luoyang mining machinery industry cluster area, we have cooperated with major well-known enterprises at home and abroad to provide technical services and complete sets of equipment for key projects in national mining, metallurgy, building materials, lifting, electric power, non-ferrous metals, environmental protection, chemical industry, petroleum and other industries. Spare parts. Relying on innovative technology, new products and perfect after-sales service, the company has won the trust and support of more and more domestic and foreign customers.
