Product Details:
Payment & Shipping Terms:
|
| Name: | Magnetic Separator | Capacity: | Max 180 T/h |
|---|---|---|---|
| Type: | CTB Series Magnetic Separator | Power: | 1.5-7.5 Kw |
| Cylinder Dia: | 600-1200 Mm | Processing Capacity: | 10-20t/h |
| Warranty: | 12 Months | Classification: | Ore Dressing Equipment |
| High Light: | Magnetic Separator Equipment 10t/H,CTB Series Magnetic Separator Equipment,iron magnetic separator 20t/H |
||

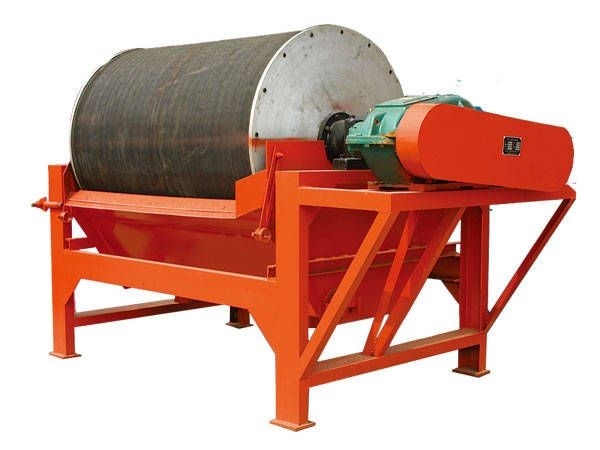

CTB Series Mineral Iron Ore Magnetic Separator Of Ore Dressing Equipment
1. Ore dressing equipment magnetic separator product description:
The dressing equipment is suitable for the separation of strong magnetic minerals.
Magnetic separator is one of the most widely used and versatile machines in the industry, which is suitable for the separation of materials with magnetic differences. Magnetic separator is widely used in mining, wood industry, kiln industry, chemical, food and other industries. And for the mining industry, the magnetic separator is suitable for particle size of 50mm below manganese ore, magnetite, pyrrhotite, roasted ore, ilmenite, hematite and other materials wet or dry magnetic separation, also used for non-metallic ore, building materials and other materials in the removal of iron operations. Magnetic separator is divided into electromagnetic magnetic separator and permanent magnetic separator two categories, permanent magnetic separator magnetic system, mostly made of high-quality ferrite materials or with rare earth magnetic steel composite, earlier, magnetic separator magnetic tube surface average magnetic induction intensity of 80-400mT. With the continuous development of technology, the magnetic separator can be made into a roller, the magnetic field intensity has also been increased to 1650mT, has been the highest measured magnetic field intensity of permanent magnet magnetic separator. And electromagnetic magnetic separator compared to permanent magnetic separator, its magnetic flux is stronger, often more effective, but because of its electromagnetic nature, power consumption, vulnerable, difficult to repair, so that the budget is not high enterprises have into the permanent magnet embrace.
2. Ore dressing equipment magnetic separator product parameters:
| Model |
Cylinder diameter(mm) |
Cylinder length (mm) |
Cylinder speed (r/min) |
Feeding size(mm) | Processing capacity(t/h) | Power (KW) |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
3. Ore dressing equipment magnetic separator ordering Instructions:
(1) When placing an order, it is required to provide the material information (particle size composition, feeding concentration) to be processed, and explain the requirements of the product (i.e. processing capacity).
(2) * Indicate the number of slots required.
(3) Complete supply of main engine (including motor, reducer).
(4) Spare parts will be ordered separately.
(5) If you have special requirements, you can supply according to non-standard.
1.5-7.5kw Drum Magnetic Separator Machine Of Ore Dressing Equipment
