| Name: | Magnetic Separator | Used In: | Mining, Wood Industry, Kiln Industry, Chemical |
|---|---|---|---|
| Output: | 180 T/h | Model NO.: | CTB Series Magnetic Separator |
| Power: | MAX 7.5 Kw | Diameter: | 600-1200 Mm |
| Warranty: | 12 Months | CATEGORY: | Ore Dressing Equipment |
| High Light: | 7.5 Kw Ore Dressing Equipment,7.5 Kw Magnetic Drum Separator,RoHS Magnetic Drum Separator |
||

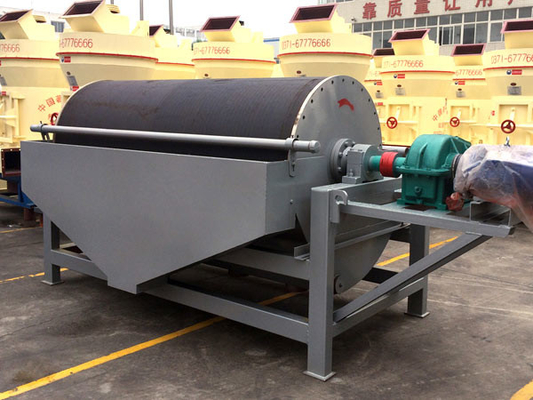

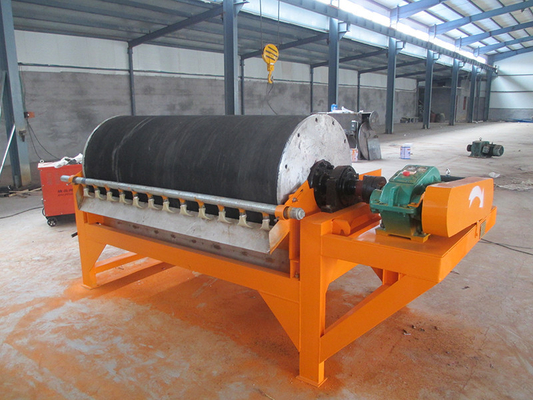

Ore Dressing Equipment Separator Magnetic Separator Widely Used In Mining
1. Ore dressing equipment magnetic separator product parameters:
| Model |
Cylinder diameter(mm) |
Cylinder length (mm) |
Cylinder speed (r/min) |
Feeding size(mm) | Processing capacity(t/h) | Power (KW) |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
2. Ore dressing equipment magnetic separator Application scope :
Ultrafine clay minerals (kaolin, bauxite, etc.) purification: remove ultrafine weak magnetic staining impurity particles (Fe2O3, TiO2) in clay ores;
Reduce Fe2O3 content in quartz sand, feldspar, barite;
Reduce the copper content in molybdenum concentrate;
Coal ash and sulfur removal;
Improve the quality of apatite;
Selection of rare earth minerals, coastal placers and other useful minerals;
Continuous removal of abrasive particles in lubricating oil, recovery and recycling of lubricating oil;
Filtration, recovery and purification of catalysts and other useful materials for the chemical, instrumentation and petroleum industries;
Filtration of water supply and condensate in nuclear and thermal power stations;
Purification of industrial and domestic sewage;
3. Ore dressing equipment magnetic separator ordering Instructions:
(1) When placing an order, it is required to provide the material information (particle size composition, feeding concentration) to be processed, and explain the requirements of the product (i.e. processing capacity).
(2) * Indicate the number of slots required.
(3) Complete supply of main engine (including motor, reducer).
(4) Spare parts will be ordered separately.
(5) If you have special requirements, you can supply according to non-standard.
