| Product Name: | Magnetic Separator | Usage: | For The Separation Of Strong Magnetic Minerals |
|---|---|---|---|
| Production Capacity( T/h): | Max 180 T/h | Model: | CTB6018 |
| Cylinder Diameter(mm): | 600 Mm | Cylinder Length (mm): | 1800 Mm |
| Speed : | <35r/min | CATEGORY: | Ore Dressing Equipment |
| High Light: | Low Intensity Wet Drum Magnetic Separator,Wet Drum Magnetic Separator 180 t/h,RoHS Magnetic Separator Equipment |
||

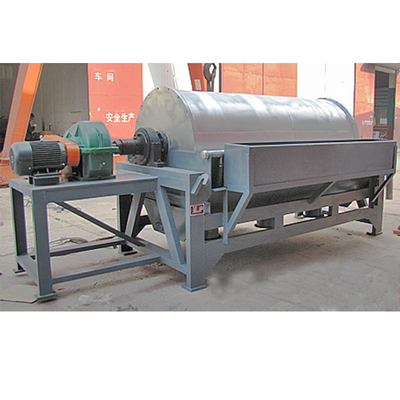

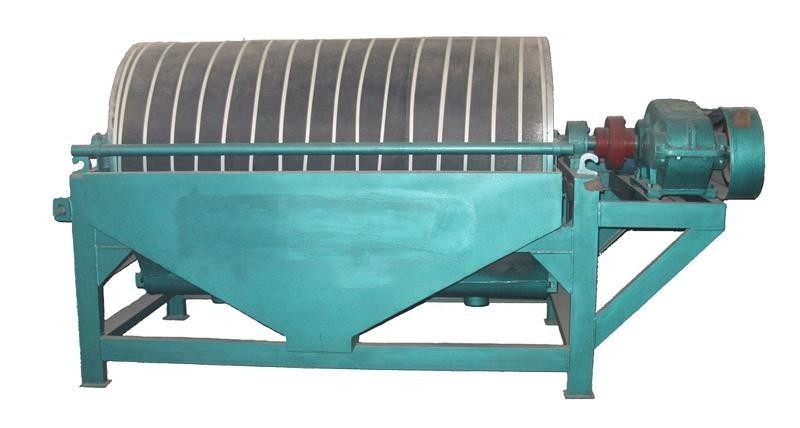

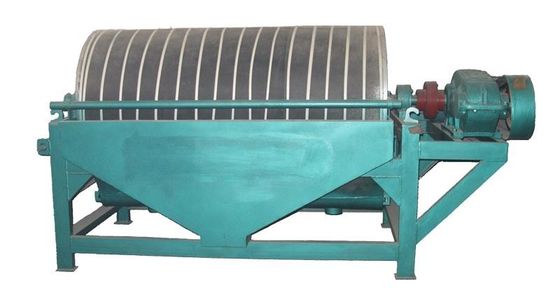

Low Intensity Wet Drum Magnetic Separator Of Ore Dressing Equipment
1. Ore dressing equipment magnetic separator product description:
The dressing equipment is suitable for the separation of strong magnetic minerals.
Magnetic separator is one of the most widely used and versatile machines in the industry, which is suitable for the separation of materials with magnetic differences. Magnetic separator is widely used in mining, wood industry, kiln industry, chemical, food and other industries. And for the mining industry, the magnetic separator is suitable for particle size of 50mm below manganese ore, magnetite, pyrrhotite, roasted ore, ilmenite, hematite and other materials wet or dry magnetic separation, also used for non-metallic ore, building materials and other materials in the removal of iron operations. Magnetic separator is divided into electromagnetic magnetic separator and permanent magnetic separator two categories, permanent magnetic separator magnetic system, mostly made of high-quality ferrite materials or with rare earth magnetic steel composite, earlier, magnetic separator magnetic tube surface average magnetic induction intensity of 80-400mT. With the continuous development of technology, the magnetic separator can be made into a roller, the magnetic field intensity has also been increased to 1650mT, has been the highest measured magnetic field intensity of permanent magnet magnetic separator. And electromagnetic magnetic separator compared to permanent magnetic separator, its magnetic flux is stronger, often more effective, but because of its electromagnetic nature, power consumption, vulnerable, difficult to repair, so that the budget is not high enterprises have into the permanent magnet embrace.
2. Ore dressing equipment magnetic separator product parameters:
| Model |
Cylinder diameter(mm) |
Cylinder length (mm) |
Cylinder speed (r/min) |
Feeding size(mm) | Processing capacity(t/h) | Power (KW) |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
Low Intensity Wet Drum Magnetic Separator Of Ore Dressing Equipment
Low Intensity Wet Drum Magnetic Separator Of Ore Dressing Equipment
